eSSL EC10-EX16 Elevator & Access Expansion Controller

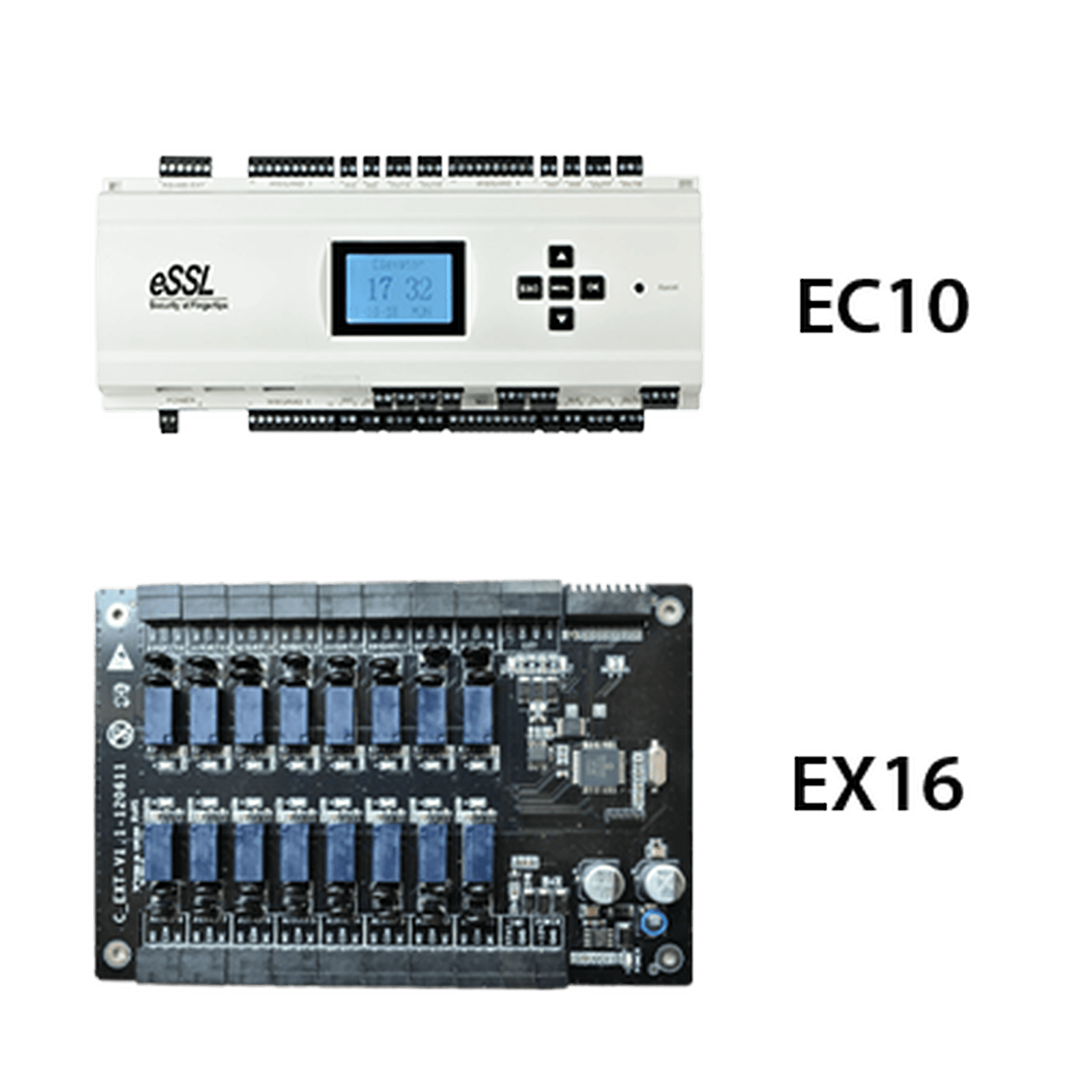

The eSSL EC10-EX16 Elevator & Access Expansion Controller is a secure, scalable, and versatile elevator access management solution designed to restrict floor access based on user credentials such as fingerprint, RFID cards, or passwords. The EC10 main controller manages up to 10 floors, while each EX16 expansion board adds control for an additional 16 floors, allowing a maximum capacity of 58 floors with three expansion boards.
Designed for commercial buildings, hotels, hospitals, offices, apartments, and industrial facilities, the EC10-EX16 system provides centralized floor access management with real-time monitoring, user-defined access privileges, and seamless integration with fingerprint and RFID readers.
Key Features
- Secure elevator access control solution.
- EC10 controller supports up to 10 floor relays.
- Each EX16 expansion board adds 16 floor relays.
- Supports up to three EX16 boards for controlling up to 58 floors.
- Compatible with fingerprint and RFID slave readers.
- Supports user-defined floor access privileges.
- Real-time upload of access permissions.
- Real-time event monitoring and management.
- Fail-safe mode for enhanced safety.
- Ethernet and RS485 communication to computer.
- RS485 communication between EC10 and EX16 boards.
- Expandable architecture for large buildings.
- Compatible with Bio Security software.
- Supports PostgreSQL, MS SQL, and Oracle databases.
Technical Specifications
| Specification | EC10 Controller | EX16 Expansion Board |
|---|---|---|
| Model | EC10 | EX16 |
| Floor Relay Capacity | 10 Floor Button Relays | 16 Additional Floor Relays |
| Fingerprint Capacity | 3,000 Templates | — |
| RFID Card Capacity | 30,000 Cards | — |
| Event Capacity | 100,000 Records | — |
| Communication to Computer | Ethernet, RS485 | — |
| Communication Between Boards | RS485 | RS485 |
| Supported Expansion Boards | Up to 3 EX16 Boards | — |
| RS485 Address | — | Set by DIP Switch |
| Power Supply | 12V DC, 1A | 12V DC, 1A |
| Dimensions | 242 × 95 × 60 mm | 160 × 106 mm |
| Net Weight | 0.8 kg | 0.2 kg |
| Software Compatibility | Bio Security 3.0.1.0_R | Works with EC10 Controller |
| Database Support | PostgreSQL, MS SQL, Oracle | — |
System Capacity
| Configuration | Total Floors Controlled |
|---|---|
| EC10 Only | 10 Floors |
| EC10 + 1 EX16 | 26 Floors |
| EC10 + 2 EX16 | 42 Floors |
| EC10 + 3 EX16 | 58 Floors |
Applications
- Commercial Buildings
- Corporate Offices
- Hotels and Resorts
- Hospitals and Healthcare Facilities
- Residential Apartments
- Shopping Malls
- Educational Institutions
- Government Buildings
- Factories and Industrial Plants
- Data Centers
Why Choose eSSL EC10-EX16?
Scalable Architecture
Expand floor control from 10 to 58 floors using additional EX16 boards, making the system suitable for small and large buildings alike.
Multiple Authentication Options
Supports RFID cards, fingerprint readers, and password-based access for flexible security management.
Real-Time Monitoring
Provides instant event tracking and immediate updates to user access privileges for enhanced security.
High Capacity Storage
Stores up to 30,000 cards, 3,000 fingerprints, and 100,000 event logs for enterprise-grade performance.
Easy Integration
Supports Ethernet and RS485 communication and integrates seamlessly with Bio Security software and major databases.
Ideal For
Elevator Access Control | Lift Floor Management | RFID Elevator Controller | Fingerprint Elevator Access | Hotels | Offices | Apartments | Hospitals | Commercial Buildings
