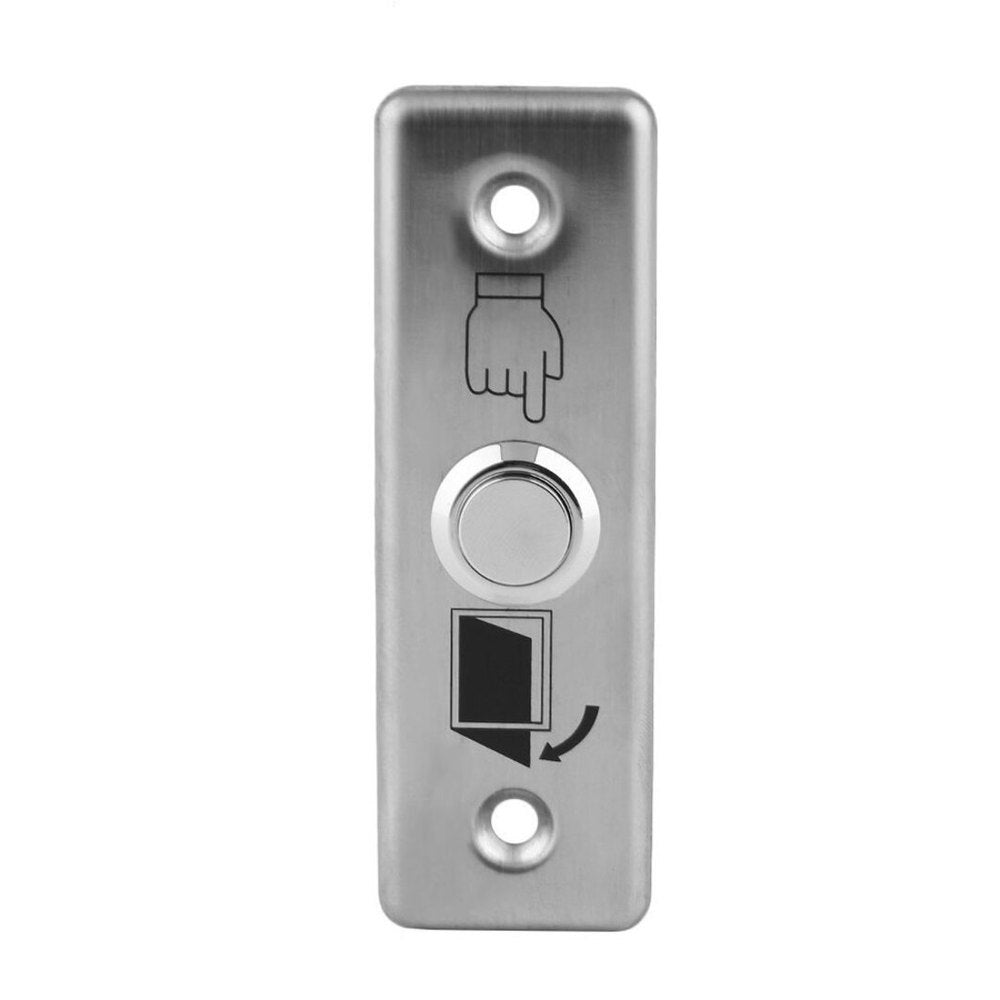

BioMax Exit Switch 1x3 Stainless Steel
The BioMax Exit Switch 1x3 is a compact commercial-grade stainless steel mechanical push button designed for secure-side door release applications in access control systems. Its slim 1×3 inch design makes it ideal for narrow door frames, wall panels, and locations where installation space is limited.
Featuring a premium brushed stainless steel faceplate and rugged mechanical button construction, the Exit Switch 1x3 provides reliable manual egress control for electronic locks, magnetic locks, and access-controlled entry systems. Its high cycle life ensures dependable performance in commercial and industrial environments.
Key Features
Slim 1×3 Inch Profile
Compact narrow design allows easy installation on door frames and restricted mounting spaces.
Premium Stainless Steel Construction
Built with a durable stainless steel plate and steel push button for long-term reliability.
Brushed Metal Finish
Features a wire-drawing stainless steel texture that provides a professional and elegant appearance.
High Mechanical Life
Tested for up to 1,000,000 switching cycles, ensuring reliable operation in high-traffic areas.
Flexible Dry Contact Output
Supports NC/COM or NO/NC/COM contact configurations for integration with various access control systems.
Commercial Grade Performance
Designed for offices, buildings, and industrial applications requiring dependable exit control.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Product Type | Stainless Steel Mechanical Exit Switch |
| Standard Structure | Stainless Steel Plate with Rugged Steel Button |
| Faceplate Finish | Premium Wire-Drawing Brushed Metal Texture |
| Contact Terminal | Dry Contacts (NC/COM or NO/NC/COM) |
| Maximum Load Rating | 3A & 36V DC Maximum |
| Mechanical Cycle Life | Up to 1,000,000 Cycles |
| Dimensions | 91 × 28 × 20 mm |
| Design Profile | Standard 1 × 3 Inch Narrow Profile |
| Hardware Weight | 0.1 kg (100 grams) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0%–95% RH (Non-Condensing) |
Applications
- Office Access Control Doors
- Corporate Buildings
- Hotels and Apartments
- Industrial Facilities
- Commercial Entry Systems
- Server Rooms
- Security Checkpoints
- Electronic Lock Installations
Why Choose BioMax Exit Switch 1x3?
The BioMax Exit Switch 1x3 combines a stylish stainless steel design with reliable mechanical switching performance. Its compact profile, high cycle durability, and flexible dry contact output make it an ideal choice for professional access control and secure door release applications.
