eSSL AiFace Jupiter Face Recognition Terminal – Face + Fingerprint, 6,000 Faces, Access Control
eSSL AiFace Jupiter Face Recognition Terminal – Face + Fingerprint, 6,000 Faces, Access Control
Couldn't load pickup availability
Your face is the key.
6,000 fingerprints · 5-inch touch screen · TCP/IP, RS485, Wiegand in/out Installed and configured by AmpleTrails anywhere in India.

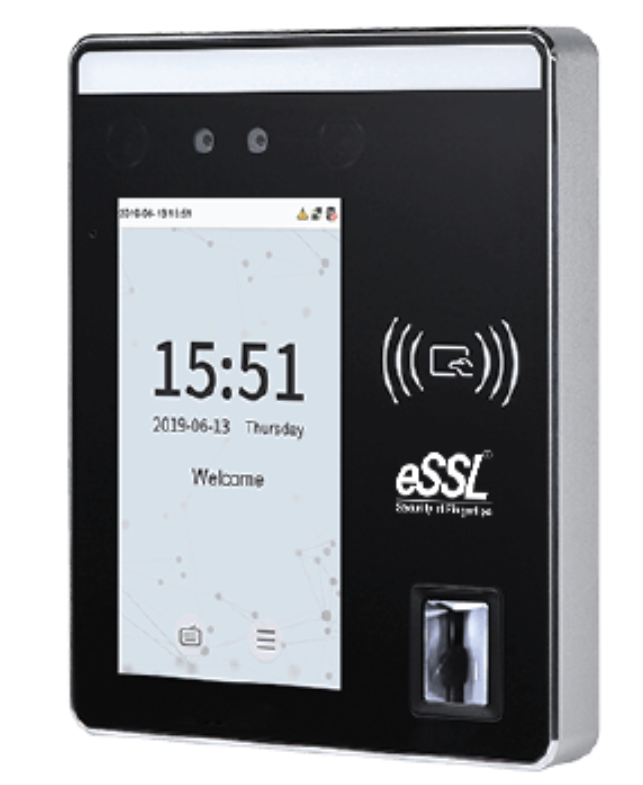

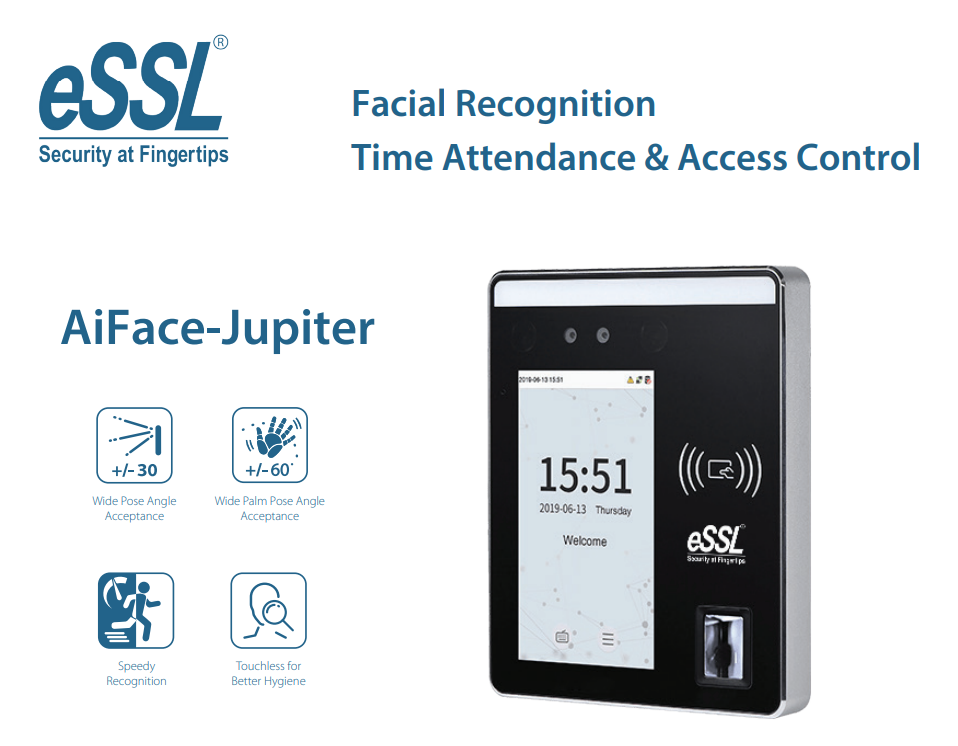

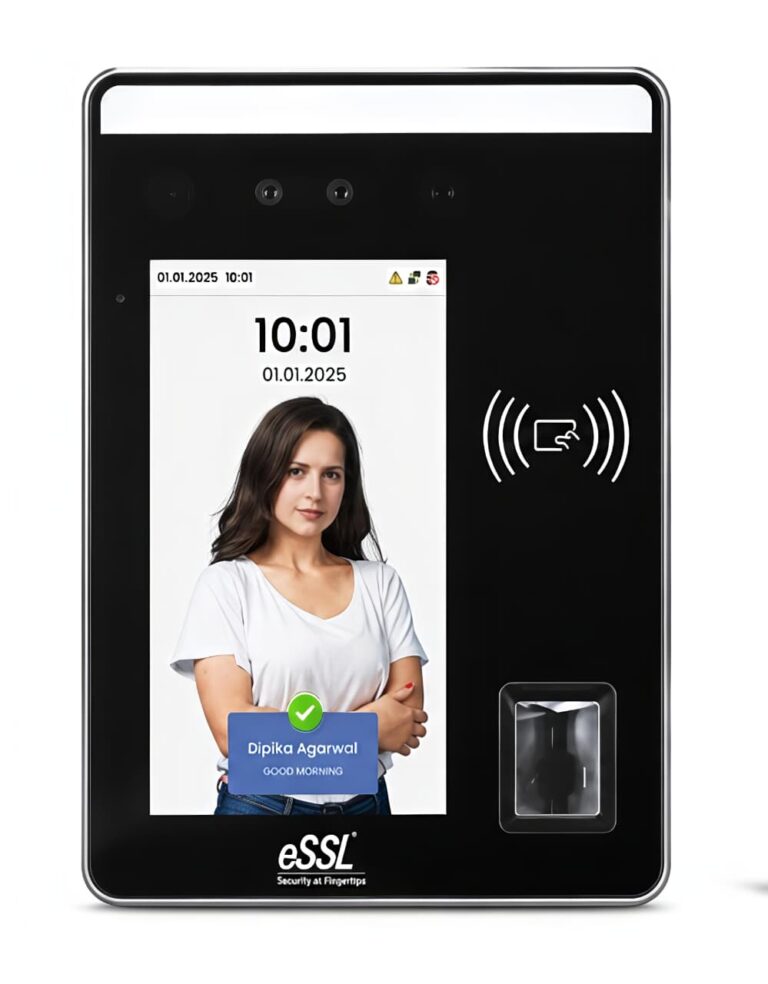

The eSSL AiFace Jupiter is a 5-inch face and fingerprint recognition terminal for time attendance and access control with 6,000 faces as standard and a 10,000-face option.
Key specifications
| Display | 5-inch touch screen |
| Face capacity | 6,000 (10,000 optional) |
| Fingerprint capacity | 6,000 |
| Card capacity | 10,000 |
| Transactions | 2,00,000 |
| Hardware | 900 MHz dual-core CPU, 512 MB RAM, 8 GB flash, 2 MP WDR camera |
| Communication | TCP/IP, RS485, Wiegand in/out, optional Wi-Fi |
| Power | 12 V 3 A |
| Dimensions | 134.93 x 166.93 x 21.5 mm |
| Software | eTimeTrackLite |
Who should purchase it?
Sites with up to 6,000 (10,000 with face option) users that wish to have face plus fingerprint recognition on a single terminal.
How many users can it support?
It can support up to 6,000 (or 10,000) faces (standard and optional, respectively), 6,000 fingerprints, 10,000 cards, and 2,00,000 transactions.
Which biometric methods does it support?
It supports face recognition, fingerprint, card and password methods of verification. Face recognition is done using visible light and can take less than one second. It is supported against spoofing using photos, videos, and 3D masks. Card modules support either 12.5 kHz EM or 13.56 MHz Mifare.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
It supports TCP/IP and RS485, and Wiegand (in/out), with optional Wi-Fi.
Does it support an attendance application?
It can push data to ADMS, meaning punches can flow automatically to a web or cloud-based attendance application. AmpleTrails can connect it to your payroll or HRMS.
Which software is compatible?
Works with eSSL eTimeTrackLite attendance software. AmpleTrails can connect your attendance data to your payroll or HRMS.
Does it support access control?
Yes, it connects to a third-party electric lock, door sensor, exit button, alarm output, and auxiliary input.
What are the installation requirements?
Power: 12 V 3 A. Dimensions 134.93 x 166.93 x 21.5 mm (W x H x D). Operating temperature -10 °C to 45 °C, humidity 10% to 90%. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation. Our team will provide the latest models from the manufacturer.
What is the warranty?
The eSSL manufacturer warranty is provided by AmpleTrails, an authorized eSSL partner. The warranty period is mentioned on your invoice. Our support team will assist you with warranty claims.
What alternatives are available?
- eSSL AiFace Jupiter+HID – Jupiter with HID card support
- eSSL AiFace Arion – face + fingerprint, 6,000 users, wide card options
- eSSL AiFace Sun+POE – face + fingerprint for 10,000 users with PoE power
- Browse all biometric attendance machines or the full eSSL attendance machines.
Buy from an authorised eSSL partner
AmpleTrails is an authorised eSSL partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
