eSSL FB-E-1000 Glass Flap Barrier Gate – Premium Lobby Access Control
eSSL FB-E-1000 Glass Flap Barrier Gate – Premium Lobby Access Control
Couldn't load pickup availability

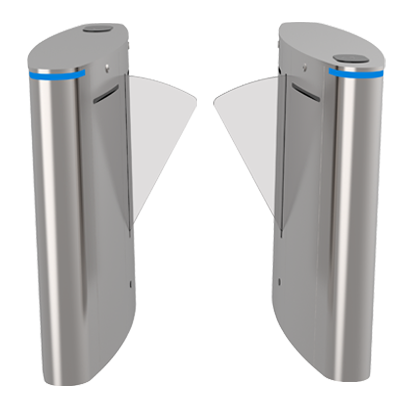

eSSL FB-E-1000 Single Lane Flap Barrier
The eSSL FB-E-1000 is a premium single-lane flap barrier designed for secure and efficient pedestrian access control. Featuring a robust 2.0mm SUS304 stainless steel body and a high-performance brushless DC motor, the FB-E-1000 delivers smooth, low-noise operation and long service life. It is ideal for offices, factories, educational institutions, metro stations, airports, commercial complexes, and other high-traffic environments requiring controlled access management.
Fast & Efficient Pedestrian Flow
Supports up to 35 persons per minute, making it suitable for busy entry and exit points.
Advanced Safety Protection
Equipped with infrared anti-clipping sensors and automatic opening during power failure for emergency evacuation.
High Security Design
Features anti-tailgating and anti-reverse passage functions to prevent unauthorized access.
Multiple Authentication Support
Compatible with IC cards, ID cards, QR scanners, barcode readers, and face recognition systems.
Key Features
- Single Lane Flap Barrier.
- 2.0mm SUS304 Stainless Steel Construction.
- Brushless DC Motor Drive.
- 3 Pairs of Infrared Sensors.
- Pass Rate up to 35 Persons/Minute.
- Automatic Opening During Power Failure.
- Anti-Tail and Anti-Reverse Protection.
- Automatic Reset Function.
- Infrared Anti-Clip Function.
- Memory and Non-Memory Card Modes.
- Supports IC, ID, QR Code and Face Recognition Systems.
- Low Noise and Long Service Life.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FB-E-1000 |
| Type | Single Lane Flap Barrier |
| Material | 2.0mm SUS304 Stainless Steel |
| Dimensions (L × W × H) | 1200 × 280 × 980 mm |
| Pass Width | 550 mm |
| Pass Rate | 35 Persons/Minute |
| Infrared Sensors | 3 Pairs |
| Input Voltage | 100V ~ 240V AC |
| Power Supply | 24V DC, 150W |
| Motor Type | DC Brushless Motor |
| Operating Temperature | -20°C to +70°C |
| Protection Rating | IP56 |
| Net Weight | 45 kg |
| MCBF | 5 Million Cycles |
| Communication | Compatible with Access Control Systems |
| Installation Environment | Indoor & Outdoor |
Operating Features
- Automatic unlocking during power failure.
- Anti-tail and anti-reverse passage protection.
- Automatic reset if passage is not completed within the preset time.
- Infrared anti-clip safety protection.
- Supports one-way and two-way access modes.
- Memory and non-memory authentication modes.
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Metro Stations
- Airports
- Educational Institutions
- Commercial Buildings
- Government Facilities
- Gym & Club Entrances
- Public Transport Hubs
Why Choose eSSL FB-E-1000?
- Premium SUS304 stainless steel construction.
- Fast throughput of up to 35 persons per minute.
- High security with anti-tailgating technology.
- Emergency opening function during power failure.
- Compatible with multiple authentication methods.
- IP56 protection for reliable operation.
- 5 million cycle durability with minimal maintenance.
Package Includes
- 1 × eSSL FB-E-1000 Single Lane Flap Barrier
- Installation Accessories
- User Manual
