eSSL FB-E-1200 Flap Barrier Gate – Premium Glass Access Control Gate
eSSL FB-E-1200 Flap Barrier Gate – Premium Glass Access Control Gate
Couldn't load pickup availability

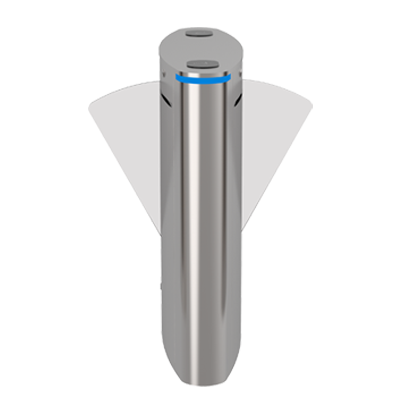

eSSL FB-E-1200 Multi-Lane Flap Barrier
The eSSL FB-E-1200 is a high-performance multi-lane flap barrier designed to provide secure and efficient pedestrian access control in high-traffic environments. Featuring a robust 2.0mm SUS304 stainless steel construction and a reliable DC brushless motor, the FB-E-1200 offers smooth, low-noise operation and long service life. It is ideal for offices, metro stations, airports, educational institutions, factories, gyms, and commercial buildings.
Multi-Lane Access Management
Designed to efficiently manage multiple pedestrian lanes while maintaining high security and smooth traffic flow.
Advanced Safety Protection
Equipped with infrared anti-clipping protection and automatic opening during power failure for emergency evacuation.
High Security Design
Supports anti-tailgating and anti-reverse passage functions to prevent unauthorized access.
Flexible Authentication Support
Compatible with IC cards, ID cards, QR scanners, barcode readers, and face recognition systems.
Key Features
- Multi-Lane Flap Barrier System.
- 2.0mm SUS304 Stainless Steel Construction.
- DC Brushless Motor Drive.
- 3 Pairs of Infrared Sensors.
- Pass Rate up to 35 Persons per Minute.
- Automatic Opening During Power Failure.
- Anti-Tail and Anti-Reverse Protection.
- Automatic Reset Function.
- Infrared Anti-Clip Safety Protection.
- Memory and Non-Memory Card Modes.
- Supports IC Card, ID Card, QR Code and Face Recognition.
- Low Noise and Long Service Life.
- Suitable for Indoor and Outdoor (Sheltered) Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FB-E-1200 |
| Type | Multi-Lane Flap Barrier |
| Material | 2.0 mm SUS304 Stainless Steel |
| Dimensions (L × W × H) | 1200 × 280 × 980 mm |
| Pass Width | 550 mm |
| Pass Rate | 35 Persons/Minute |
| Sensor Pairs | 3 Pairs |
| Input Voltage | 100V ~ 240V AC |
| Power Supply | 24V DC, 150W |
| Motor Type | DC Brushless Motor |
| Operating Temperature | -20°C to +70°C |
| Protection Rating | IP56 |
| Net Weight | 45 kg |
| MCBF | 5 Million Cycles |
| Communication | Compatible with Third-Party Access Control Systems |
| Installation Environment | Indoor & Outdoor (Sheltered) |
Operating Features
- Automatic unlocking during power failure.
- Anti-tail and anti-reverse passage protection.
- Automatic reset if passage is not completed within the preset time.
- Infrared anti-clip safety protection.
- Supports one-way and two-way access modes.
- Memory and non-memory authentication modes.
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Metro Stations
- Airports
- Educational Institutions
- Commercial Buildings
- Government Facilities
- Gym & Club Entrances
- Public Transport Hubs
Why Choose eSSL FB-E-1200?
- Premium SUS304 stainless steel construction.
- Fast throughput of up to 35 persons per minute.
- High security with anti-tailgating technology.
- Emergency opening function during power failure.
- Compatible with multiple authentication methods.
- IP56 protection for reliable operation.
- 5 million cycle durability with minimal maintenance.
Package Includes
- 1 × eSSL FB-E-1200 Multi-Lane Flap Barrier
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
