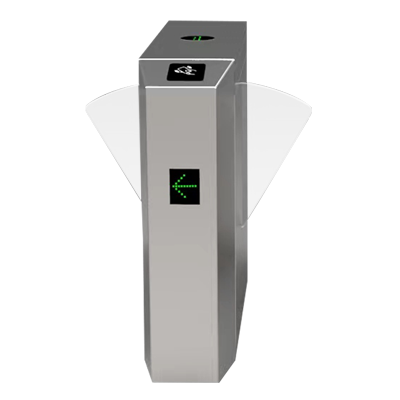

eSSL FB-E-2200 Double Lane Flap Barrier – Premium Glass Access Control Gate

Rs. 0.00

Sale Sold out

Scale your security checkpoint to handle heavy foot traffic effortlessly. The eSSL FB-E-2200 Double Lane Flap Barrier is a premium, space-saving access control system designed to establish two fully functional transit lanes using an efficient, multi-cabinet array. By integrating a dual-flap mechanism into its center cabinet, it provides dual-direction crowd screening without forcing you to buy duplicate hardware housings.

Encased in structural SUS304 stainless steel with retractable high-durability glass wings, the FB-E-2200 offers a high-throughput entrance solution that combines elite corporate aesthetics with rigorous defense against unauthorized walk-ins.

Why Security Directors Choose the FB-E-2200

Double-Lane Operational Efficiency: Maximizes crowd capacity while reducing your physical footprint. Perfect for high-density entry points, allowing simultaneous, separate entry and exit lanes.
Premium SUS304 Stainless Steel Cabinets: Built out of commercial-grade, brushed SUS304 stainless steel. Offers maximum protection against corrosion, scratches, and impacts, preserving an elegant look in your corporate lobby.
Multi-Pair Advanced Infrared Sensors: Features an integrated array of high-accuracy infrared (IR) beam sensors along both lanes. Instantly flags tailgating attempts or wrong-way crossings, sounding a local alarm while locking the wings.
Universal Verification Board: Outfitted with a versatile main control terminal interface. Connects directly with biometric facial terminals, fingerprint readers, standard RFID card controllers, and dynamic QR code scanners.
Emergency Retraction Safety Protocol: Prioritizes life safety above all else. In the event of an active fire alarm trigger or absolute power loss, the motorized wings retract fully into the housing to guarantee an open, unhindered exit route.
Smooth Motorized Actuation: The high-precision motorized mechanism moves the flaps silently and smoothly in fractions of a second, ending doorway bottlenecks during morning peak arrivals.

Versatile Premium Applications

The eSSL FB-E-2200 is the industry standard for properties handling continuous, heavy pedestrian volumes:

Corporate Lobbies & Tech Parks: Establish distinct, automated entry and exit lanes for large employee workforces utilizing single or dual credentials.
Transit Terminals & Subway Hubs: Maintain quick passenger screening pipelines while anchoring a premium architectural aesthetic.
Government Facilities & Financial Hubs: Block opportunistic walk-ins and control visitor tracking across complex, multi-lane security desks.
Educational Campuses & Libraries: Secure primary entry thresholds against non-authorized visitors while enabling rapid student card validation.

Technical Specifications

Specification Type	Details
System Layout Type	Double Lane Setup (Typically utilizes 2 Single-Flap & 1 Dual-Flap Center Cabinet)
Cabinet Chassis Material	Premium SUS304 Brushed Stainless Steel
Flap Wing Material	High-Strength Tempered Glass (Acrylic alternatives available)
Lane Width Dimension	Standard Lane: 550mm – 600mm per lane
Throughput Rate Capacity	Up to 30 – 40 transits per minute, per lane (based on credential validation speed)
Flap Transit Speed	Rapid 0.2 to 0.6 Seconds
Control Interface Type	Dry Contact Signal Input / Switching Relays
Power Input Profile	AC 110V – 220V \| 50Hz – 60Hz Universal Main Lines
Operational Reliability	Mean Time Between Failures (MTBF) greater than 3 Million Cycles
Environmental Tolerance	Temperature: -25°C to 70°C \| Indoor or Protected Outdoor Locations
Vendor	eSSL Security

System Architecture Tip: The FB-E-2200 series is modular. To construct a 2-lane layout, order 1 x FB-E-2200 Dual-Flap Center Cabinet and pair it with 2 x Single-Flap Side Cabinets. If you want to expand to 3 lanes in the future, you simply drop another Dual-Flap center module into the line without tearing down your existing hardware.

What’s in the Box?

1 x eSSL FB-E-2200 Premium Double-Lane Modular Component Package
Motorized Retractable High-Impact Tempered Glass Wings
Integrated Core Master Logic Mainboard Module Array
Integrated Multi-Pair Electronic Infrared Tracking Beams (Pre-Installed)
1 x Heavy-Duty Floor Anchor Bolt & Structural Hardware Kit
1 x Complete Wiring Architecture Map, Integration Interface Guide, and Operation Manual
