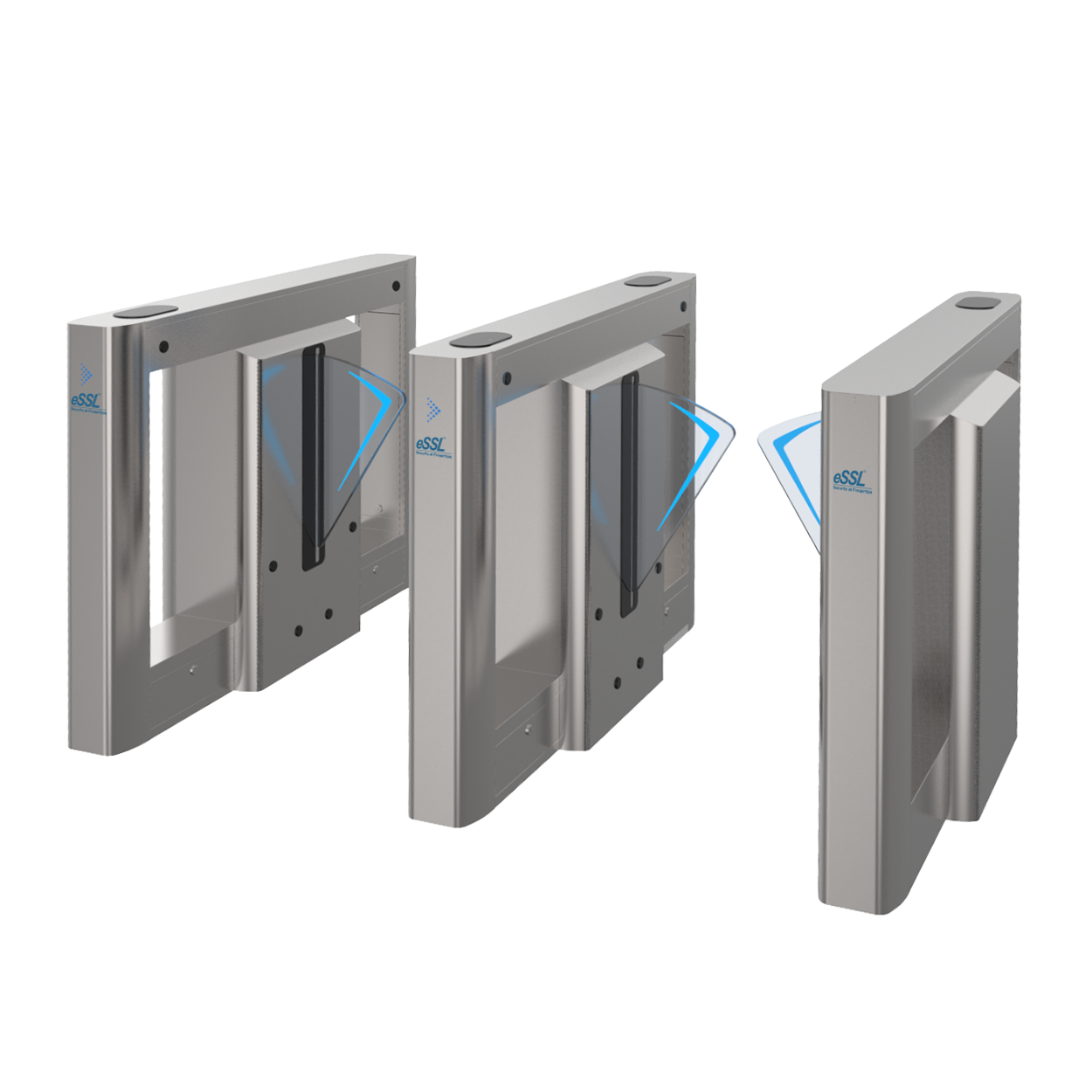

eSSL FB-E-2216 Wide Passage Flap Barrier – Premium Glass Access Control Gate

Rs. 0.00

Sale Sold out

True accessibility should never compromise your security standards. The eSSL FB-E-2216 Wide Passage Flap Barrier is a premium, motorized glass access control gate specifically engineered to accommodate wheelchairs, large baggage, and supply deliveries. By offering an expanded lane clearance, it guarantees an unhindered, ADA-compliant entry path while matching the elite visual styling of your primary entry gates.

Constructed with a heavy-duty SUS304 stainless steel cabinet and high-strength tempered glass panels, the FB-E-2216 provides a wide-lane checkpoint that combines smooth motorized operation with continuous protection against unauthorized entry.

Why Security Directors Choose the FB-E-2216

Expanded Wide-Passage Clearance: Engineered with a wider lane configuration (up to 900mm). This provides hassle-free entry for wheelchair users, disabled individuals, large security luggage, or maintenance carts.
Premium SUS304 Stainless Steel Chassis: Built using heavy-gauge, brushed SUS304 stainless steel. The housing resists rust, oxidization, and heavy impact, offering an elegant aesthetic for modern office lobbies.
Intelligent Anti-Tailgating Tracking: Equipped with multi-pair high-precision infrared (IR) sensors. The system instantly detects if an unauthorized user attempts to tail behind a valid user, immediately triggering an alarm and stopping the flaps.
Seamless Integration Interface: Features a universally compatible core motherboard. Connects directly with biometric face recognition terminals, fingerprint readers, standard RFID proximity readers, and QR code scanners.
Emergency Fail-Safe Mechanism: Prioritizes life safety. In the event of a power outage or fire alarm trigger, the motorized glass wings automatically retract inside the cabinet to establish a wide, completely open escape path.
Bi-Directional Lane Management: Flexibly program the gate for entry-only, exit-only, or bi-directional traffic flow to handle changing building crowd dynamics easily.

Versatile Premium Applications

The eSSL FB-E-2216 is the standard choice for facilities implementing a complete, accessible entrance plaza:

Corporate Headquarters & Tech Parks: Deploy alongside standard lanes to provide an accessible, high-tech entry barrier for disabled employees and visitors.
Airports, Metros & Transit Hubs: Effortlessly handle travelers carrying oversized rolling suitcases, strollers, or bulky carry-on items.
Logistics Centers & Secure Warehouses: Allow staff carrying packages, tool cases, or hand trucks to clear verification zones without scraping cabinets.
Commercial Showrooms & Exhibition Halls: Create a striking entrance that allows bulky displays and event gear to be wheeled onto the main floor smoothly.

Technical Specifications

Specification Type	Details
Cabinet Housing Material	Premium SUS304 Brushed Stainless Steel
Flap Wing Material	High-Durability Tempered Glass (Acrylic alternatives available)
Passage Width Capacity	Wide Lane: up to 900 mm (Wheelchair and Baggage accessible)
Throughput Efficiency	Up to 25 – 35 transits per minute (depending on access reader processing speeds)
Opening / Closing Duration	0.3 to 0.8 Seconds
Control Interface	Dry Contact Switch Signal / Relays
Power Supply Input	AC 110V – 220V \| 50Hz – 60Hz Universal Adaptability
Operational Reliability	Mean Time Between Failures (MTBF) greater than 3 Million Cycles
Environmental Tolerance	Temperature: -25°C to 70°C \| Indoor or Protected Outdoor Lobbies
Vendor	eSSL Security

Architecture & Layout Guide: For the most efficient office entrance array, we recommend installing the wide FB-E-2216 gate immediately next to the security desk or receptionist station. This setup makes it incredibly easy for guards to monitor delivery personnel or assist visitors requiring wheelchair access.
