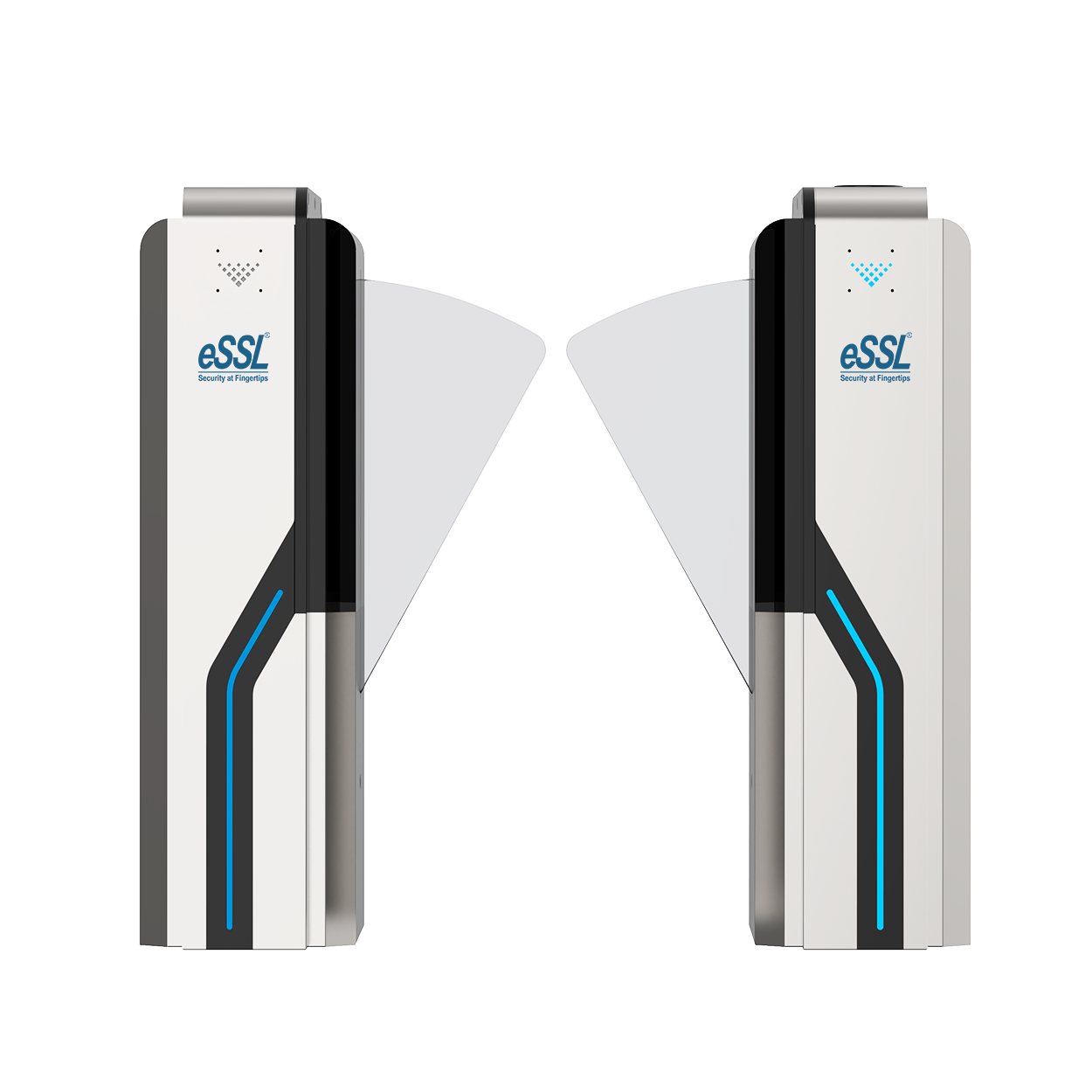

eSSL FB-EF-2213 Compact Flap Barrier
The eSSL FB-EF-2213 is a compact and intelligent flap barrier designed for secure pedestrian access control in locations where installation space is limited. Featuring a robust steel housing, acrylic flap barriers with RGB lighting, and a brushless drive mechanism, the FB-EF-2213 delivers smooth, quiet, and reliable operation for offices, schools, commercial buildings, and other high-traffic facilities.
Compact Space-Saving Design
The ultra-compact cabinet design makes the FB-EF-2213 ideal for narrow entrances and installations with limited space.
Advanced Security Protection
Supports anti-tailgating, anti-reverse passage, and infrared anti-clip functions to ensure safe and secure access control.
Smooth & Reliable Operation
Powered by a brushless movement system for low-noise operation, minimal maintenance, and long service life.
Multiple Authentication Support
Compatible with IC cards, ID cards, QR codes, face recognition systems, and other third-party access control devices.
Key Features
- Compact Flap Barrier Design.
- Space-Saving Cabinet Construction.
- Acrylic Flap Panels with RGB Lighting.
- Brushless Drive Mechanism.
- Anti-Tailgating and Anti-Reverse Protection.
- Infrared Anti-Clip Safety Function.
- Automatic Reset Function.
- Supports One-Way and Two-Way Access Modes.
- Low Noise and Smooth Operation.
- Supports IC/ID Card, QR Code & Face Recognition Systems.
- Easy Integration with Third-Party Access Control Systems.
- Long Service Life and Minimal Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FB-EF-2213 |
| Type | Compact Flap Barrier |
| Dimensions (L × W × H) | 600 × 280 × 980 mm |
| Passage Width | 550 mm |
| Cabinet Material | Steel Housing |
| Barrier Material | Acrylic Flaps with RGB Lighting |
| Drive System | Brushless Movement |
| Control System | Brushless Control System |
| Drive Unit | Brushless DC 30K 40W |
| Power Supply | 24V DC, 150W |
| Communication Interface | Dry Contact & RS485 |
| Pass Rate | 35 – 50 Persons/Minute |
| Operating Temperature | -20°C to +70°C |
| Working Humidity | ≤90% RH (Non-Condensing) |
| Protection Rating | IP4X |
| Working Environment | Indoor Installation |
Operating Features
- Automatic reset if passage is not completed within the preset time.
- Infrared anti-clip protection during gate operation.
- Supports one-way and two-way card reading modes.
- Open and closed operation modes available.
- Compatible with IC cards, ID cards, QR codes and face recognition.
- Smooth and reliable operation with low maintenance.
Applications
- Corporate Offices
- Educational Institutions
- Commercial Buildings
- Factories & Manufacturing Plants
- Business Centres
- Government Buildings
- IT Parks
- Gyms & Clubs
Why Choose eSSL FB-EF-2213?
- Compact design ideal for limited installation space.
- High throughput of up to 50 persons per minute.
- Advanced anti-tailgating and anti-reverse protection.
- Supports multiple authentication technologies.
- Quiet and smooth brushless operation.
- Easy integration with access control systems.
- Low maintenance and long service life.
Package Includes
- 1 × eSSL FB-EF-2213 Compact Flap Barrier
- Installation Accessories
- User Manual
