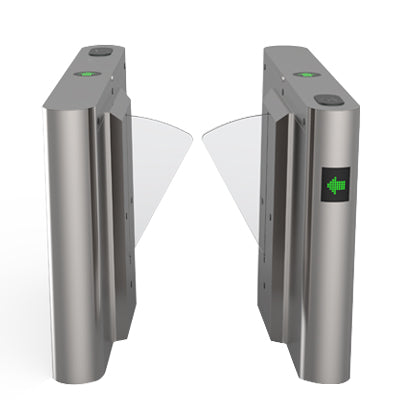

eSSL FB-Y-1000 Single Lane Flap Barrier
The eSSL FB-Y-1000 is a premium single-lane flap barrier designed for secure and efficient pedestrian access control in high-traffic environments. Built with a durable SUS304 stainless steel body and equipped with a high-performance DC brushless motor, the FB-Y-1000 delivers smooth, low-noise operation and long-term reliability. It is ideal for offices, factories, metro stations, airports, educational institutions, commercial buildings, and other facilities requiring controlled entry and exit management.
High Security Access Control
Supports anti-tailgating and anti-reverse passage functions to prevent unauthorized access and ensure secure pedestrian management.
Advanced Safety Protection
Equipped with 6 pairs of infrared sensors and automatic opening during power failure for emergency evacuation.
Reliable Performance
Powered by a DC brushless motor for smooth, quiet operation and an extended service life of up to 5 million cycles.
Multiple Authentication Support
Compatible with IC cards, ID cards, QR code scanners, and face recognition systems.
Key Features
- Single Lane Flap Barrier.
- 1.2/1.0 mm SUS304 Stainless Steel Construction.
- 6 Pairs of Infrared Sensors.
- Pass Rate up to 35 Persons/Minute.
- 550 mm Passage Width.
- Automatic Opening During Power Failure.
- Anti-Tailgating and Anti-Reverse Protection.
- Automatic Reset Function.
- Infrared Anti-Clip Function.
- Supports IC Card, ID Card, QR Code & Face Recognition.
- Low Noise and Smooth Operation.
- Supports One-Way and Two-Way Access Modes.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FB-Y-1000 |
| Type | Single Lane Flap Barrier |
| Material | 1.2/1.0 mm SUS304 Stainless Steel |
| Dimensions (L × W × H) | 1400 × 280 × 950 mm |
| Pass Width | 550 mm |
| Sensor Pairs | 6 Pairs |
| Pass Rate | 35 Persons/Minute |
| Input Voltage | 100V ~ 240V AC |
| Power Supply | 24V DC, 150W |
| Motor Type | DC Brushless Motor |
| Operating Temperature | -20°C to +70°C |
| Net Weight | 60 kg |
| Protection Rating | IP56 |
| MCBF | 5 Million Cycles |
| Installation Environment | Indoor & Outdoor |
| Communication | Compatible with Access Control Systems |
Operating Features
- Automatic unlocking during power failure.
- Anti-tail and anti-reverse passage protection.
- Automatic reset if passage is not completed within preset time.
- Infrared anti-clip safety protection.
- Memory and non-memory card reading modes.
- One-way and two-way operation modes.
- Open and closed operating modes.
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Metro Stations
- Airports
- Educational Institutions
- Government Buildings
- Commercial Complexes
- IT Parks
- Gym & Club Entrances
Why Choose eSSL FB-Y-1000?
- Premium SUS304 stainless steel construction.
- 6 infrared sensors for enhanced safety.
- Fast throughput of 35 persons per minute.
- IP56 protection for reliable operation.
- 5 million cycle durability.
- Supports multiple authentication technologies.
- Automatic emergency opening during power failure.
- Low maintenance and long service life.
Package Includes
- 1 × eSSL FB-Y-1000 Single Lane Flap Barrier
- Installation Accessories
- User Manual
