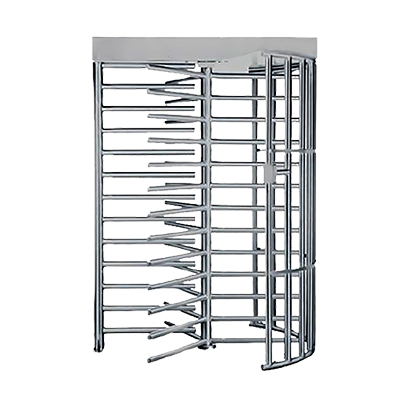

eSSL FHT-TL-139 Full Height Security Turnstile – Stainless Steel Pedestrian Access Gate
eSSL FHT-TL-139 Full Height Security Turnstile – Stainless Steel Pedestrian Access Gate
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
eSSL FHT-TL-139 Full Height Single Door Turnstile
The eSSL FHT-TL-139 is a premium full-height single-door turnstile designed to provide maximum security and controlled pedestrian access for high-security environments. Built with a heavy-duty corrosion-protected stainless-steel frame, the FHT-TL-139 offers reliable operation, anti-tailgating protection, and seamless integration with RFID, biometric, face recognition, and access control systems. It is ideal for factories, data centers, power plants, stadiums, transportation hubs, and government facilities.
Maximum Security Design
The full-height rotating barrier prevents unauthorized entry, climbing, and tailgating by allowing only one person per passage.
Heavy-Duty Construction
Constructed using heavy-gauge stainless-steel materials with minimal exposed hardware for enhanced durability and tamper resistance.
Flexible Passage Modes
Supports single-direction passage, bi-directional passage, free passage, and locked modes to meet various security requirements.
Easy System Integration
Compatible with RFID readers, fingerprint devices, face recognition terminals, and third-party access control systems via RS485 or TCP/IP communication.
Key Features
- Full Height Single Door Turnstile.
- Three-Arm Rotor Design.
- Heavy-Duty Corrosion-Protected Stainless-Steel Frame.
- One Person, One Passage Mechanism.
- Anti-Tailgating and Anti-Climb Security.
- Electro-Magnetic Drive System.
- Adjustable Hydraulic Damper.
- Automatic Barrier Delay Closing (1–60 Seconds).
- Single and Bi-Directional Operation.
- Supports RFID, Fingerprint, Face Recognition & Push Button Access.
- Low Maintenance and Long Service Life.
- Suitable for Indoor and Outdoor Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FHT-TL-139 |
| Type | Full Height Single Door Turnstile |
| No. of Arms | 3 Arms |
| Rotation Angle | 120° |
| Power Supply | 100V ~ 240V AC |
| Control Circuit | 24V DC |
| Power Consumption | 30W |
| Operating Temperature | -25°C to +70°C |
| Working Humidity | Up to 95% |
| Protection Rating | IP44 / IP54 |
| Electro-Magnetic Drive | DC |
| Communication Interface | RS485 or TCP/IP |
| Passage Width | < 650 mm |
| Barrier Delay Time | 1 – 60 Seconds Adjustable |
| Hydraulic Damper | Adjustable |
| MCBF | 5 Million Cycles |
| Dimensions (L × W × H) | 1630 × 1500 × 2310 mm |
| Net Weight | 220 kg |
| Installation Environment | Indoor & Outdoor |
Operating Modes
- Single Passage in the Set Direction.
- Bi-Directional Single Passage.
- Free Passage Mode.
- Always Free or Locked Mode.
- Automatic Delay Closing after Valid Authentication.
Applications
- Factories & Manufacturing Plants
- Power Plants & Utility Facilities
- Government Buildings
- Data Centers
- Warehouses & Logistics Centers
- Airports & Transportation Hubs
- Stadiums & Sports Complexes
- Construction Sites
- High-Security Industrial Premises
Why Choose eSSL FHT-TL-139?
- Maximum security with full-height anti-climb design.
- Prevents unauthorized entry and tailgating.
- Heavy-duty stainless-steel construction.
- Supports multiple authentication technologies.
- Reliable operation with 5 million cycle durability.
- Suitable for both indoor and outdoor installations.
- Low maintenance and long operational life.
Package Includes
- 1 × eSSL FHT-TL-139 Full Height Single Door Turnstile
- Installation Accessories
- User Manual
