eSSL FHT-TL-149 Full Height Turnstile – Stainless Steel Pedestrian Access Gate
eSSL FHT-TL-149 Full Height Turnstile – Stainless Steel Pedestrian Access Gate
📞 Call 9315441078 for Best Price
Couldn't load pickup availability

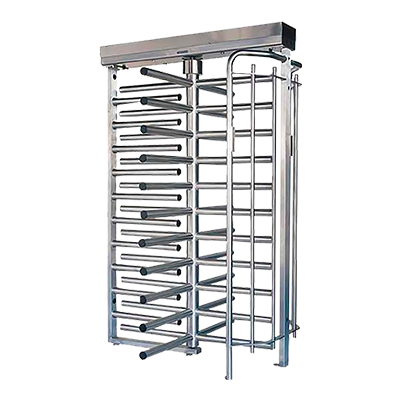

eSSL FHT-TL-149 Full Height Single Door Turnstile
The eSSL FHT-TL-149 is a premium heavy-duty full-height single-door turnstile designed to provide maximum security and controlled pedestrian access in high-security environments. Featuring a robust SUS304 stainless steel construction and a unique 4-arm rotor design, the FHT-TL-149 effectively prevents unauthorized entry, tailgating, and climbing attempts. It is ideal for factories, data centers, government facilities, power plants, stadiums, warehouses, and transportation hubs.
Maximum Security Access Control
The full-height design ensures one-person-per-passage operation, providing superior security and preventing unauthorized access.
Heavy-Duty Stainless-Steel Construction
Manufactured using premium SUS304 stainless steel with corrosion-resistant finishing for long-term durability and reliable operation.
4-Arm Rotor Design
The unique four-arm configuration provides smooth operation and enhanced pedestrian flow management while maintaining high security.
Flexible Integration
Compatible with RFID readers, fingerprint devices, face recognition systems, QR scanners, and third-party access control systems.
Key Features
- Full Height Single Door Turnstile.
- Heavy-Duty SUS304 Stainless Steel Construction.
- 4-Arm Rotor Design.
- One Person, One Passage Mechanism.
- Anti-Tailgating and Anti-Climb Protection.
- Single Direction and Bi-Directional Passage Modes.
- Automatic Barrier Delay Closing.
- Adjustable Hydraulic Damper.
- Low Noise and Smooth Operation.
- Supports RFID, Fingerprint, Face Recognition & QR Access Systems.
- Suitable for Indoor and Outdoor Installations.
- Low Maintenance and Long Service Life.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FHT-TL-149 |
| Type | Full Height Single Door Turnstile |
| Door Type | Single Door |
| Number of Arms | 4 Arms |
| Section Version | 90° |
| Rotational Direction | One Way / Bi-Directional |
| Material | SUS304 Stainless Steel (1.5mm) |
| Dimensions (L × W × H) | 1580 × 1370 × 2250 mm |
| Pass Width | 550 mm |
| Pass Rate | 35 Persons/Minute |
| Open Speed | Adjustable from 0.5s to 1.5s |
| Power Supply | AC 100V ~ 240V, 50/60Hz |
| Control Circuit | 24V DC |
| Power Consumption | 50W |
| Protection Rating | IP54 |
| Communication Interface | Dry Contact / RS485 |
| Operating Temperature | -20°C to +70°C |
| Humidity | Up to 95% RH |
| MCBF | 5 Million Cycles |
| Net Weight | 220 kg |
| Integration | Controller and RFID / Face / Fingerprint / QR Code Readers |
| Installation Environment | Indoor & Outdoor |
Operating Modes
- Single Passage in the Set Direction.
- Bi-Directional Single Passage.
- Free Passage Mode.
- Always Free or Locked Mode.
- Automatic Delay Closing (1–60 Seconds).
Applications
- Factories & Manufacturing Plants
- Government Buildings
- Power Plants & Utility Facilities
- Data Centers
- Warehouses & Logistics Centers
- Airports & Transportation Hubs
- Stadiums & Sports Complexes
- Construction Sites
- High-Security Industrial Premises
Why Choose eSSL FHT-TL-149?
- Maximum security with full-height anti-climb design.
- Advanced 4-arm rotor configuration.
- Heavy-duty SUS304 stainless steel construction.
- Supports multiple authentication technologies.
- Reliable operation with 5 million cycle durability.
- Suitable for both indoor and outdoor environments.
- Low maintenance and long operational life.
Package Includes
- 1 × eSSL FHT-TL-149 Full Height Turnstile
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
