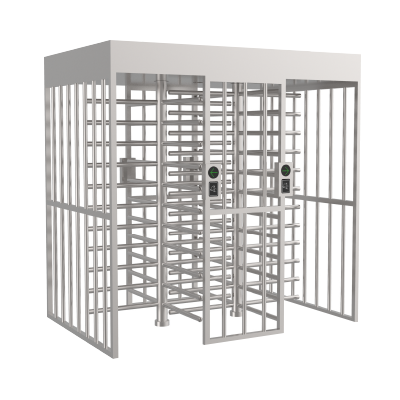

eSSL FHT-TL-232 Full Height Double Door Turnstile
The eSSL FHT-TL-232 is a heavy-duty double-door full-height turnstile designed for high-security pedestrian access control applications. Built with premium SUS304 stainless steel construction, the FHT-TL-232 offers reliable, unmanned access management while preventing unauthorized entry and tailgating. Its dual-lane design makes it ideal for factories, power plants, data centers, government facilities, construction sites, stadiums, and other high-security environments.
Double Lane High Throughput Design
The dual-door configuration allows simultaneous entry and exit, increasing pedestrian flow while maintaining maximum security.
Heavy-Duty Stainless Steel Construction
Manufactured using high-quality SUS304 stainless steel for superior durability, corrosion resistance, and long operational life.
Anti-Tailgating Security
Full-height design ensures one person per passage and effectively prevents unauthorized access and reverse entry.
Easy System Integration
Compatible with RFID readers, fingerprint devices, face recognition terminals, QR code scanners, and third-party access control systems.
Key Features
- Double Door Full Height Turnstile.
- Premium SUS304 Stainless Steel Construction.
- Bi-Directional Passage Control.
- One Person, One Passage Mechanism.
- Anti-Reverse and Anti-Tailgating Function.
- Automatic Unlock During Power Failure.
- Dry Contact and RS485 Communication Interface.
- Low Noise and Smooth Operation.
- Suitable for Indoor and Outdoor Installations.
- Supports RFID, Fingerprint, Face Recognition, and QR Systems.
- Long Service Life with Low Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FHT-TL-232 |
| Type | Full Height Double Door Turnstile |
| Door Type | Double Door |
| Material | SUS304 Stainless Steel |
| Dimensions (L × W × H) | 2200 × 1350 × 2250 mm |
| Pass Width | 600 mm |
| Pass Rate | 30 Persons/Minute |
| Unlock Time | 0.2 Seconds |
| Input Voltage | 100V ~ 240V AC, 50/60Hz |
| Driving Voltage | 24V DC |
| Power Consumption | 50W |
| Protection Rating | IP56 |
| Communication Interface | Dry Contact / RS485 |
| Working Temperature | -20°C to +70°C |
| MCBF | 5 Million Cycles |
| Rotation Direction | Two-Way Bi-Directional |
| Integration | Controller and RFID / Face / Fingerprint / QR Code Readers |
| Installation Environment | Indoor & Outdoor |
Operating Features
- Two-way traffic functionality.
- Automatic unlock during power failure for emergency evacuation.
- Automatic cancellation if user does not pass within preset time.
- Adjustable pass delay time through controller settings.
- Memory and non-memory operating modes.
- Anti-reverse mechanism to prevent unauthorized movement.
Applications
- Factories & Manufacturing Plants
- Government Buildings
- Power Plants & Utility Facilities
- Data Centers
- Construction Sites
- Stadiums & Sports Complexes
- Warehouses & Logistics Centers
- Airports & Transportation Hubs
- High-Security Industrial Premises
Why Choose eSSL FHT-TL-232?
- High-security full-height anti-climb design.
- Double-door configuration for higher throughput.
- Heavy-duty SUS304 stainless steel construction.
- Supports multiple authentication technologies.
- Ideal for both indoor and outdoor environments.
- Long service life with 5 million cycle durability.
- Low maintenance and reliable operation.
Package Includes
- 1 × eSSL FHT-TL-232 Full Height Double Door Turnstile
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
