eSSL FHT-TL-249 Full Height Security Turnstile – Stainless Steel Pedestrian Access Gate
eSSL FHT-TL-249 Full Height Security Turnstile – Stainless Steel Pedestrian Access Gate
Couldn't load pickup availability

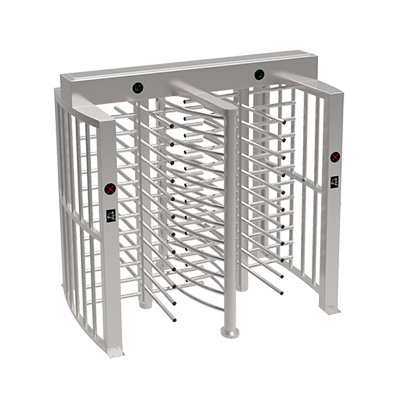

eSSL FHT-TL-249 Full Height Double Door Turnstile
The eSSL FHT-TL-249 is a heavy-duty full-height double-door turnstile engineered for high-security pedestrian access control applications. Designed with a robust SUS304 stainless steel construction and a unique 4-arm rotor system, the FHT-TL-249 provides maximum security, reliable operation, and efficient management of pedestrian traffic. It is ideal for factories, data centers, government facilities, power plants, warehouses, stadiums, and other high-security environments.
Maximum Security Access Control
The full-height anti-climb design ensures one-person-per-passage operation, effectively preventing unauthorized entry and tailgating.
Heavy-Duty Stainless Steel Construction
Manufactured from premium SUS304 stainless steel, providing excellent corrosion resistance, durability, and long service life.
Double Door Configuration
The dual-lane design supports simultaneous entry and exit, improving pedestrian throughput while maintaining strict security control.
Flexible System Integration
Compatible with RFID readers, fingerprint devices, face recognition systems, QR code scanners, and third-party access control solutions.
Key Features
- Full Height Double Door Turnstile.
- Heavy-Duty SUS304 Stainless Steel Construction.
- 4-Arm Rotor Design.
- Bi-Directional and Uni-Directional Operation.
- One Person, One Passage Mechanism.
- Anti-Tailgating and Anti-Reverse Function.
- Automatic Unlock During Power Failure.
- Programmable Microprocessor Controller.
- Supports RFID, Fingerprint, Face Recognition & QR Code Systems.
- Dry Contact and RS485 Communication Interface.
- Suitable for Indoor and Outdoor Installations.
- Low Maintenance and Long Service Life.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FHT-TL-249 |
| Type | Full Height Double Door Turnstile |
| Door Configuration | Double Door |
| Number of Arms | 4 Arms |
| Section Version | 90° |
| Housing Material | SUS304 Stainless Steel (1.5 mm) |
| Passage Width | 550 mm |
| Pass Rate | 25 – 35 Persons/Minute |
| Open Speed | 0.5 – 1.5 Seconds Adjustable |
| Power Supply | AC 100V ~ 240V, 50/60Hz |
| Operating Voltage | 24V DC |
| Power Consumption | 50W |
| Protection Rating | IP54 |
| Working Temperature | -20°C to +70°C |
| Working Humidity | ≤95% RH (Non-Condensing) |
| Communication Interface | Dry Contact / RS485 |
| MCBF | 5 Million Cycles |
| Dimensions (L × W × H) | Approx. 2400 × 1500 × 2300 mm |
| Net Weight | Approx. 420 kg |
| Emergency Function | Automatic Unlock During Power Failure |
| Installation Environment | Indoor & Outdoor |
| Integration | RFID / Fingerprint / Face Recognition / QR Code Readers |
Operating Modes
- Single Direction Passage.
- Bi-Directional Passage.
- Free Passage Mode.
- Always Locked or Always Open Mode.
- Automatic Reset After Preset Delay.
- Emergency Unlock During Power Failure.
Applications
- Factories & Manufacturing Plants
- Government Buildings
- Power Plants & Utility Facilities
- Data Centers
- Warehouses & Logistics Centers
- Airports & Transportation Hubs
- Stadiums & Sports Complexes
- Construction Sites
- High-Security Industrial Premises
Why Choose eSSL FHT-TL-249?
- Maximum security with full-height anti-climb design.
- Double-door configuration for high pedestrian throughput.
- Advanced 4-arm rotor system for smooth operation.
- Heavy-duty SUS304 stainless steel construction.
- Supports multiple authentication technologies.
- Power-safe emergency operation.
- Low maintenance and long service life.
Package Includes
- 1 × eSSL FHT-TL-249 Full Height Double Door Turnstile
- Installation Accessories
- User Manual
