eSSL FHT-TL-537 Full Height Turnstile – Stainless Steel Pedestrian Access Gate
eSSL FHT-TL-537 Full Height Turnstile – Stainless Steel Pedestrian Access Gate
📞 Call 9315441078 for Best Price
Couldn't load pickup availability

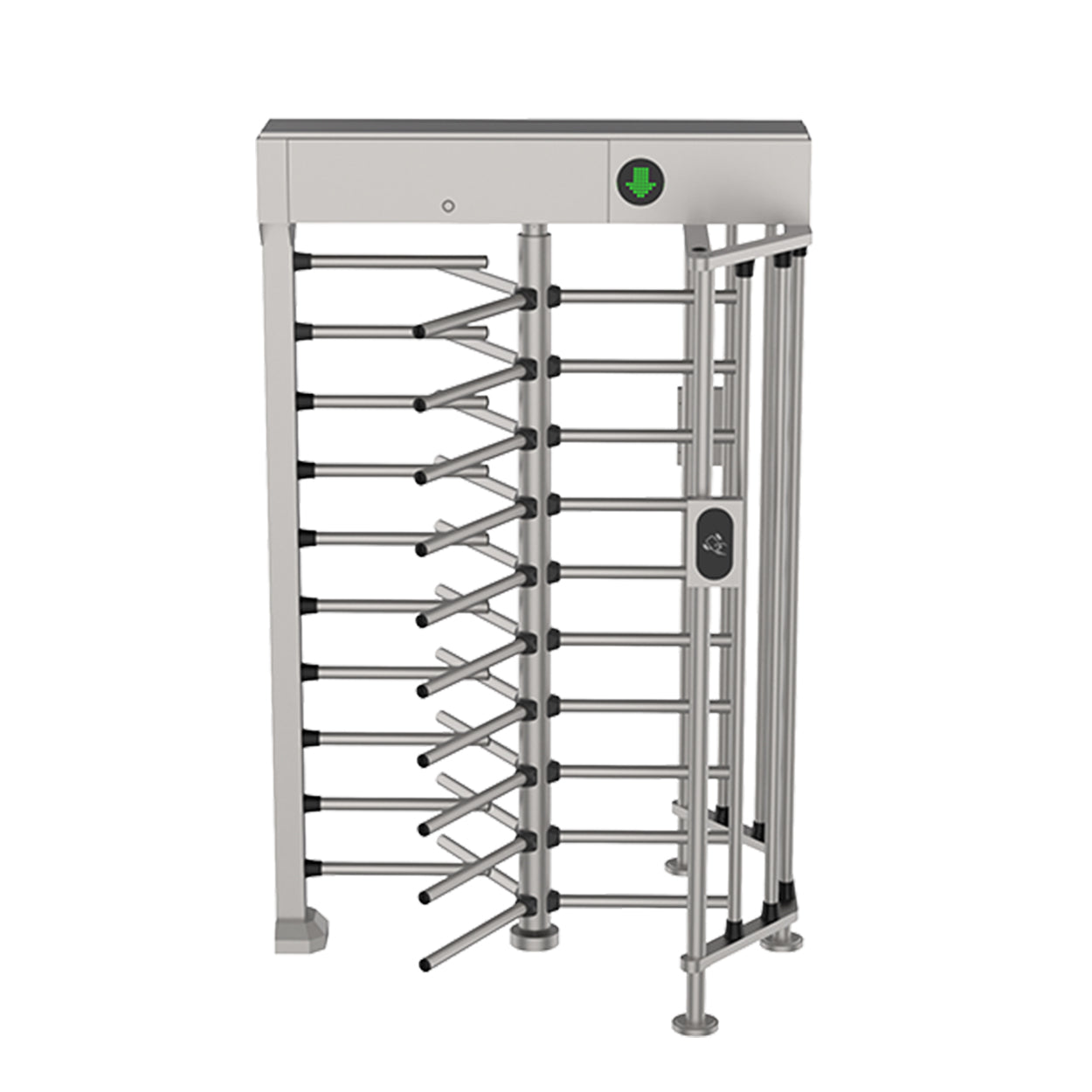

eSSL FHT-TL-537 Full Height Turnstile
The eSSL FHT-TL-537 is a heavy-duty full-height turnstile designed for high-security pedestrian access control applications. Its robust SUS304 stainless steel construction and anti-tailgating design make it ideal for factories, industrial facilities, government premises, stadiums, warehouses, data centers, and other restricted areas requiring strict entry management.
Maximum Security Design
Full-height structure prevents unauthorized entry, climbing, and tailgating while ensuring one person per passage.
Emergency Safety Function
Automatically unlocks and opens during power failure to meet fire safety and emergency evacuation requirements.
Smart Access Control Integration
Compatible with IC cards, ID cards, QR scanners, face recognition systems, and other access control devices.
Reliable Performance
Low-noise operation with smooth movement and long service life for continuous heavy-duty applications.
Key Features
- Heavy Duty Full Height Turnstile.
- One Person, One Passage Mechanism.
- Anti-Tail and Anti-Reverse Function.
- Automatic Opening During Power Failure.
- Automatic Reset Function.
- Card Memory and Non-Memory Modes.
- Infrared Anti-Clip Protection.
- Dynamic LED Indicator Lights.
- Low Noise and Smooth Operation.
- Compatible with RFID, Face Recognition and QR Systems.
- Suitable for Indoor and Outdoor Installations.
- Long Service Life with Minimal Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FHT-TL-537 |
| Type | Full Height Turnstile |
| Dimensions (L × W × H) | 1400 × 1300 × 2230 mm |
| Pass Width | 600 mm |
| Pass Rate | 35 – 50 Persons/Minute |
| Power Supply | 24V DC, 150W / AC 220V |
| Power Consumption | 50W |
| Body Material | SUS304 Stainless Steel (Body δ=1.2mm) |
| Fence Material | SUS304 Stainless Steel (Ø1.0mm) |
| Movement | Molding Full-Height Turnstile Movement |
| Sensor | Limited Sensor |
| Indicator Light | Dynamic Indicator Light |
| Drive Unit | Anti-Burn Solenoid |
| Communication Interface | Dry Contact & RS485 |
| MCBF | 3 Million Cycles |
| Working Temperature | -20°C to +70°C |
| Working Humidity | ≤90% RH (Non-Condensing) |
| Protection Rating | IP4X |
| Installation Environment | Indoor & Outdoor |
Operating Features
- Automatic unlocking during power failure.
- Anti-tail and anti-reverse passage protection.
- Automatic reset if passage is not completed within the preset time.
- Infrared anti-clip safety function.
- Memory and non-memory card reading modes.
- Two-way and one-way card reading modes.
Applications
- Factories & Manufacturing Plants
- Government Buildings
- Power Plants
- Data Centers
- Warehouses & Logistics Centers
- Stadiums & Sports Complexes
- Industrial Premises
- High-Security Restricted Areas
Why Choose eSSL FHT-TL-537?
- High-security full-height anti-climb design.
- Supports multiple authentication technologies.
- Heavy-duty SUS304 stainless steel construction.
- Fast throughput of up to 50 persons per minute.
- Automatic emergency unlocking function.
- Low maintenance and long service life.
- Suitable for both indoor and outdoor environments.
Package Includes
- 1 × eSSL FHT-TL-537 Full Height Turnstile
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
