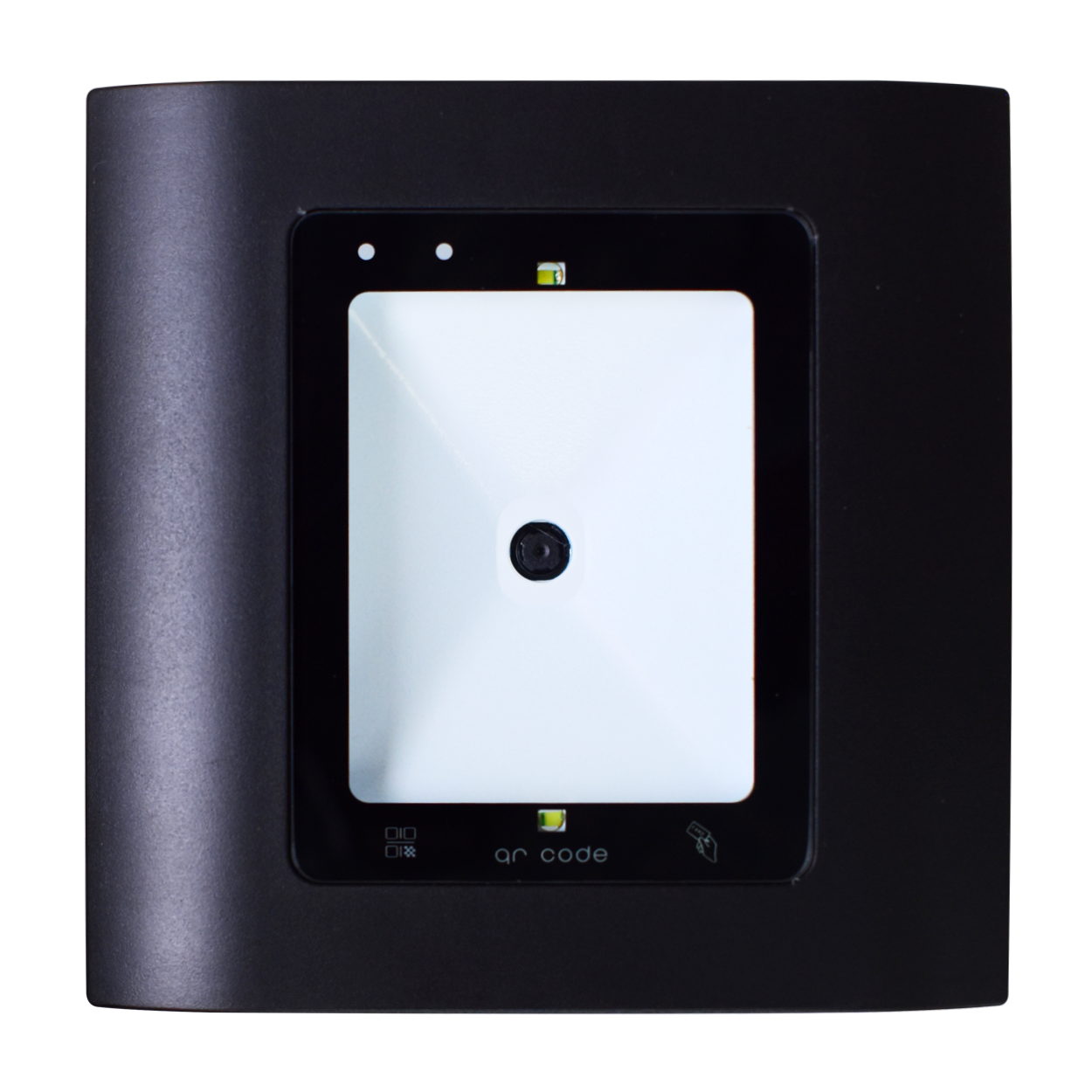

eSSL FQR-100 QR Code Access Reader – Contactless Visitor Entry

📞 Call 9315441078 for Best Price

FQR-100 QR Code & RFID Reader

The FQR-100 QR Reader is a high-performance QR code and RFID reader designed for modern access control applications. It supports both paper and screen QR code recognition and can seamlessly integrate with third-party access control systems through Wiegand 26/34 output. With fast decoding speed, waterproof ABS construction, and support for proximity cards, the FQR-100 is an ideal solution for offices, residential communities, factories, schools, and commercial buildings.

Key Features

Supports paper and mobile screen QR code recognition
Wiegand 26/34 output for third-party access control integration
Fast reading speed of less than 200ms
Supports QR code sizes from 20mm to 100mm
Built-in LED illumination with anti-glare interference
Auto-induction with buzzer feedback
Supports proximity card reading
Wide voltage input support from 4V to 15V DC
Durable ABS waterproof housing
Blue and Green status LED indicators

Technical Specifications

Specification	Details
Model	FQR-100
Dimensions (L × W × H)	86 × 86 × 42 mm
Material	ABS Waterproof Housing
Interface	Wiegand 26 / 34
Input Voltage	DC 12V, Supports 4V – 15V Wide Voltage Input
Current Consumption	800mA
Reading Speed	< 200ms
QR Code Reading Distance	0 – 20 cm
Card Reading Distance	3 – 6 cm
Reading Direction	Camera Centric Slant 45°
Supported QR Code Size	20 – 100 mm
Decoding Method	Image Decoding
