BioMax GBL-3300-AW Glass Door Bolt Lock – Access Control Door Hardware
BioMax GBL-3300-AW Glass Door Bolt Lock – Access Control Door Hardware
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details

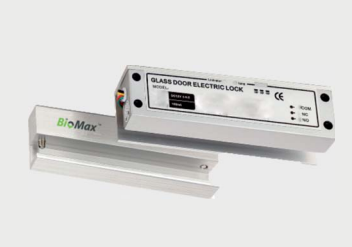

BioMax GBL-3300-AW Frameless Glass Door Drop Bolt Lock
The BioMax GBL-3300-AW is a heavy-duty industrial electric drop-bolt lock specially designed for fully frameless glass doors. Unlike conventional electronic locks that require drilling or modification of glass panels, the GBL-3300-AW uses a surface-clamping aluminum mounting design that provides secure installation without damaging the glass.
Designed for modern architectural environments, this glass door lock offers strong holding force, adjustable lock delay, and sensor feedback monitoring. It is an ideal solution for office lobbies, retail stores, commercial entrances, and high-security frameless glass access control applications.
Key Features
Designed for Frameless Glass Doors
Special surface-clamping design allows installation on glass doors without drilling or modifying the glass panel.
Heavy-Duty Locking Strength
Provides up to 300 kg holding force for reliable protection against forced entry.
5-Wire Feedback System
Includes power wiring and sensor feedback lines for lock status monitoring and advanced access control integration.
Adjustable Lock Delay
Supports configurable locking delay from 0 to 6 seconds according to installation requirements.
Aluminum Clamp Housing
Strong aluminum construction provides secure mounting while maintaining a clean architectural appearance.
Access Control Integration
Compatible with RFID readers, biometric controllers, exit switches, and centralized access control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | GBL-3300-AW |
| Product Type | Electric Drop Bolt Lock for Frameless Glass Doors |
| Door Compatibility | Fully Frameless Glass Doors |
| Wiring Configuration | 5-Wire System (Power + Sensor Feedback) |
| Working Voltage | DC 12V |
| Working Current | 0.8 A (High Load) |
| Holding Force | 300 kg Approx. (660 lbs) |
| Lock Delay | Adjustable 0–6 Seconds |
| Aluminum Slice Dimensions | 148 × 43 × 25 mm |
| Main Lock Body Dimensions | 148 × 43 × 39 mm |
| Total Weight | 1.0 kg |
| Operating Humidity | 0% to 95% RH (Non-Condensing) |
Applications
- Modern Office Glass Entrances
- Corporate Building Lobbies
- Retail Storefronts
- Showrooms
- Commercial Glass Doors
- High-Security Frameless Entry Systems
- Access Controlled Glass Partitions
Why Choose BioMax GBL-3300-AW?
The BioMax GBL-3300-AW offers a professional locking solution for frameless glass doors where aesthetics and security are equally important. Its non-invasive mounting design, powerful 300 kg holding force, sensor feedback capability, and flexible access control integration make it an ideal choice for modern commercial security installations.
