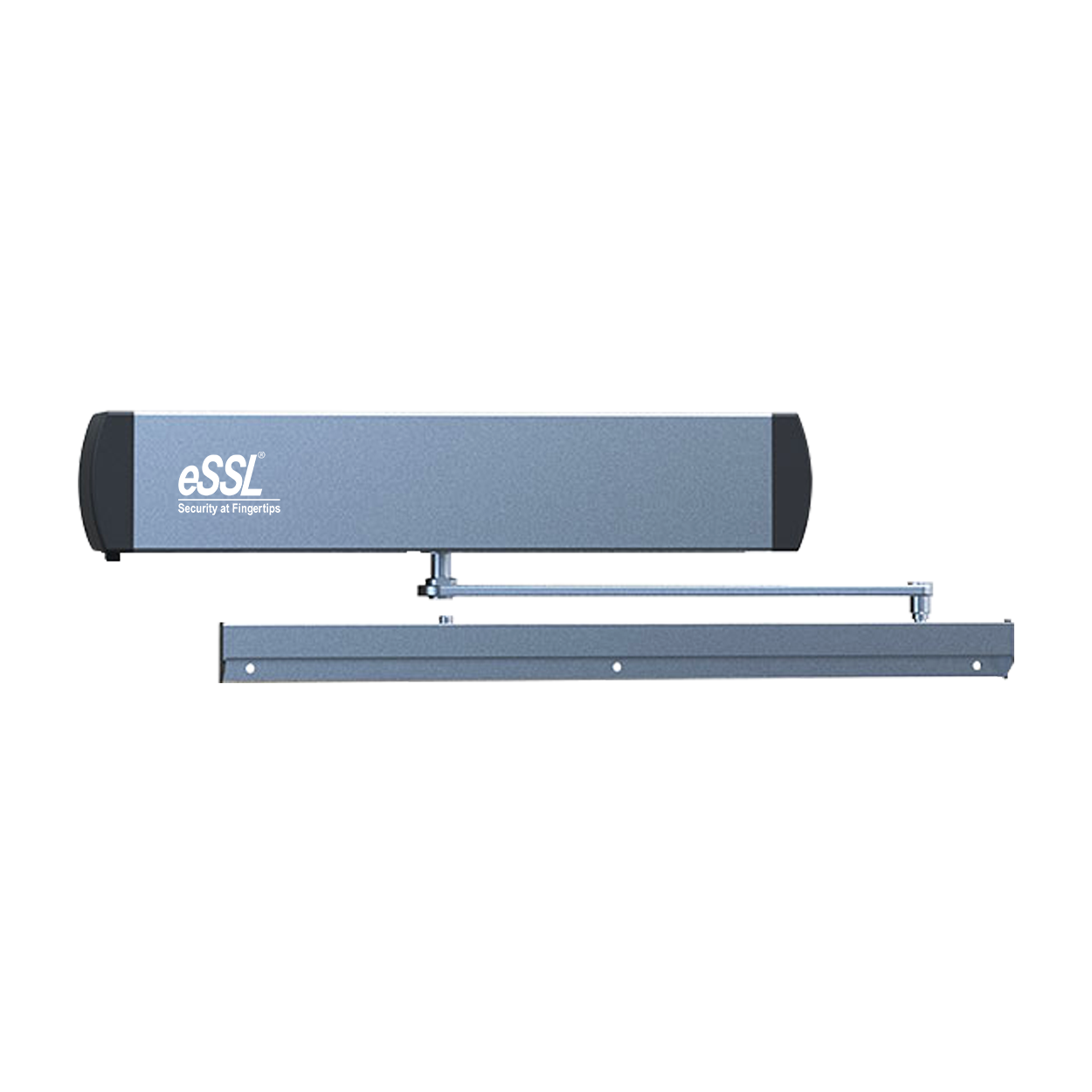

eSSL GO-I-28 Swing Door Opener
The eSSL GO-I-28 is a high-performance automatic swing door opener designed for residential, commercial, and industrial access control applications. Powered by a reliable 24V DC brushless motor, the GO-I-28 delivers smooth, quiet, and efficient door operation with intelligent safety functions, soft start and stop technology, and support for various access control systems.
24V DC Brushless Motor
High-efficiency brushless motor provides stable operation, low noise, and a service life of up to 2 million cycles.
Advanced Safety Protection
Automatically reverses during closing and stops during opening when an obstacle is detected.
Soft Start & Soft Stop
Ensures smooth operation, reduces mechanical wear, and extends the lifespan of the system.
Access Control Integration
Supports connection with radar sensors, photocells, card readers, fingerprint devices, face recognition systems, and fire alarm systems.
Key Features
- 24V DC Voltage Drive for Safe Operation.
- DC Brushless Motor with Accurate Limit Control.
- Up to 2 Million Operating Cycles.
- Soft Start and Soft Stop Function.
- Adjustable Opening and Closing Speed.
- Adjustable Open/Close Time.
- Automatic Limit Learning Function.
- Obstacle Detection and Reverse Protection.
- Auto-Close Function Available.
- Supports Single and Double Door Installation.
- Low Noise Operation.
- Fire Alarm Linkage Interface.
- Supports External Access Control Devices.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GO-I-28 |
| Product Type | Automatic Swing Door Opener |
| Power Supply | AC220V ±10%, 50Hz |
| Motor Power | 24V DC / 40W |
| Motor Speed | 1800 RPM |
| Open / Close Time | 3 – 10 Seconds (Adjustable) |
| Maximum Opening Angle | 120° |
| Maximum Door Width | 1200 mm |
| Maximum Door Weight | 120 kg |
| Working Temperature | -20°C to +50°C |
| Operating Life | Up to 2 Million Cycles |
| Motor Type | DC Brushless Motor |
| Installation Type | Push & Pull Rod Installation |
Safety Features
- Obstacle detection with automatic reverse function.
- Door stops immediately if obstruction is detected during opening.
- Motor self-lock functionality.
- Automatic close limit detection.
- Photocell safety support.
- Over-current and over-time protection.
- Error diagnosis and fault indication.
Supported Integrations
- Face Recognition Devices
- Fingerprint Readers
- RFID Card Readers
- Microwave Radar Sensors
- Infrared Sensors
- Electromagnetic Locks
- Electric Bolt Locks
- Fire Alarm Systems
- RS485 Communication Devices
Applications
- Residential Villas
- Apartment Complexes
- Corporate Offices
- Educational Institutions
- Hospitals
- Factories & Warehouses
- Commercial Buildings
- Hotels & Resorts
- Government Facilities
- Industrial Premises
Why Choose eSSL GO-I-28?
- Reliable 24V DC brushless motor.
- Long service life of up to 2 million cycles.
- Smooth and quiet operation.
- Advanced obstacle protection technology.
- Easy integration with access control systems.
- Supports single and double door applications.
- Simple installation and maintenance.
- Ideal for residential and commercial automation projects.
Package Includes
- 1 × GO-I-28 Swing Door Opener
- Main Rod Assembly
- Push/Pull Rod Kit
- Remote Transmitter
- Installation Accessories
- User Manual
