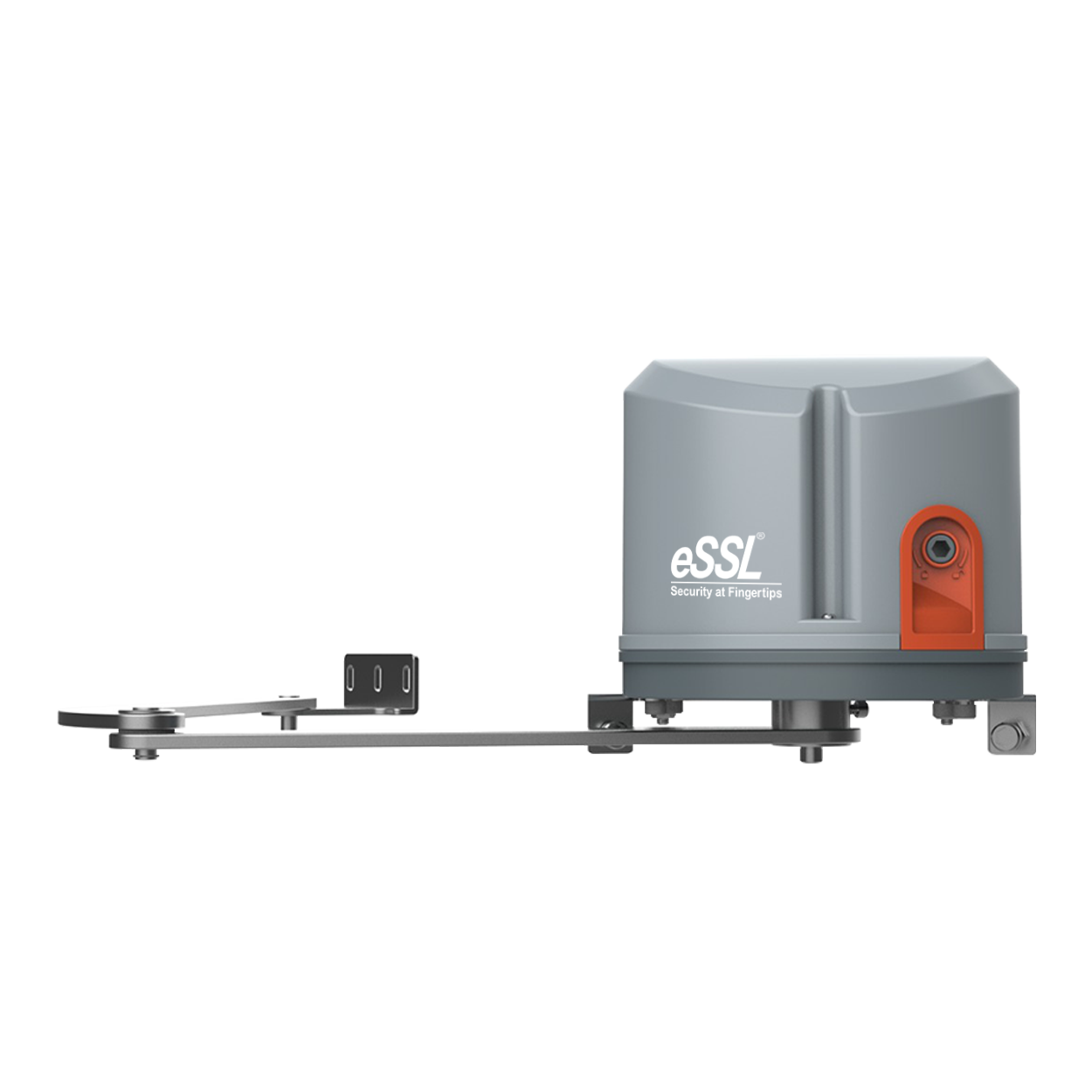

eSSL GO-O-19 Swing Gate Opener
The eSSL GO-O-19 is a high-performance automatic swing gate opener designed for residential, commercial, and light industrial gate automation applications. Equipped with a reliable 24V DC brushless motor, the GO-O-19 provides smooth and quiet operation, intelligent obstacle detection, soft start and stop technology, and compatibility with various access control systems.
24V DC Brushless Motor
High-efficiency brushless motor ensures stable performance, low noise operation, and a long service life.
Intelligent Safety Protection
Automatically reverses during closing and stops during opening when an obstacle is detected.
Soft Start & Soft Stop
Provides smooth gate movement and reduces mechanical wear for longer product life.
Access Control Integration
Compatible with photocells, RFID readers, fingerprint devices, face recognition terminals, and remote controls.
Key Features
- 24V DC Brushless Motor Technology.
- Low Noise and Smooth Operation.
- Soft Start and Soft Stop Function.
- Automatic Close Function.
- Obstacle Detection and Auto Reverse.
- Manual Release During Power Failure.
- Supports Single and Double Swing Gates.
- Compatible with External Access Control Systems.
- Weather Resistant Outdoor Design.
- Easy Installation and Maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GO-O-19 |
| Product Type | Automatic Swing Gate Opener |
| Motor Type | 24V DC Brushless Motor |
| Motor Power | 60W |
| Power Supply | AC 220V ±10%, 50Hz |
| Motor Speed | 1500 RPM ±10% |
| Maximum Gate Weight | 150 kg per leaf |
| Maximum Gate Width | 1.5 m per leaf |
| Maximum Opening Angle | 120° |
| Opening / Closing Time | 5 – 15 Seconds (Adjustable) |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Duty Cycle | Intensive Use |
| Operating Life | Up to 2 Million Cycles |
Safety Features
- Obstacle detection with automatic reverse function.
- Manual release during power failure.
- Over-current and overload protection.
- Soft stop technology to prevent impact damage.
- Photocell safety support.
- Motor self-lock mechanism.
Supported Integrations
- RF Remote Controls
- RFID Card Readers
- Fingerprint Devices
- Face Recognition Systems
- Infrared Photocells
- Loop Detectors
- Access Control Panels
- Video Door Phones
- Fire Alarm Systems
Applications
- Residential Villas
- Apartment Complexes
- Corporate Offices
- Commercial Buildings
- Hotels & Resorts
- Factories & Warehouses
- Educational Institutions
- Hospitals
- Government Facilities
- Industrial Premises
Why Choose eSSL GO-O-19?
- Reliable 24V DC brushless motor.
- Suitable for gates up to 150 kg per leaf.
- Quiet and smooth operation.
- Advanced obstacle protection.
- IP54 weatherproof outdoor design.
- Supports intensive operation.
- Easy integration with access control systems.
- Long operating life of up to 2 million cycles.
Package Includes
- 1 × GO-O-19 Swing Gate Opener Kit
- Arm Set
- Mounting Accessories
- Remote Controls
- User Manual
