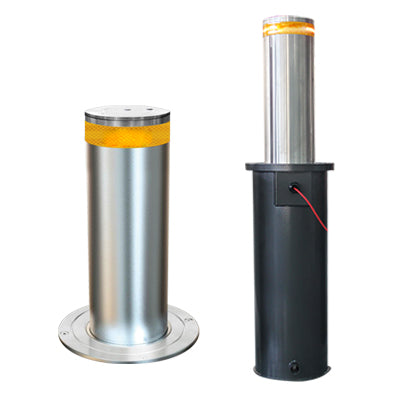

HB-426

The eSSL HB‑426 Hydraulic Bollard is a robust automatic rising security bollard designed for perimeter protection at high‑security entry points including government facilities, commercial complexes, campuses, and restricted zones. It combines electromechanical and hydraulic electric integration for smooth up/down operation with a 4‑second runtime and IP68 protection class. Built from 304 stainless steel with customizable height and thickness options, the HB‑426 offers high thrust force, reflective warning features, and optional LED lighting for enhanced visibility and durability.

Key Highlights

• Working Power Supply: AC 220V for reliable operation.
• Drive Mode: Electromechanical and hydraulic electric integration.
• Protection Class: IP68 dust and water resistance.
• Running Speed: Fast 4‑second up/down cycle.
• Maximum Thrust: 200 kg force capacity.

Features

• Customizable Height: Standard 600 mm height with optional 800 mm to 1000 mm.
• Cylinder Options: 220 mm diameter (custom 270 mm).
• Column Wall Thickness: Available in 6 mm, 8 mm, or 10 mm.
• Cylinder Material: Durable 304 stainless steel tube.
• Foundation Box Material: Strong Q235 steel.
• Anti‑Corrosion Process: Electrophoresis and plastic spraying for outdoor use.
• Passing Pressure: Withstands up to 50 T vehicle load.
• Reflective Warning: 3M reflective film (50 mm) for high visibility.
• Warning Light: Standard LED lamp beads with optional LED light strip and anti‑collision rubber.

HBC-600 (Control Unit)

• Integrated Control: Provides full control for raising and lowering the HB‑426 bollard.
• Manual Override: Allows emergency manual operation in case of power failure.
• Connection Interfaces: Supports connection with access control systems, push buttons, and remote control.
• Status Indicators: LED indicators for operational status, faults, and emergency mode.
• Safety Features: Includes anti-crash and obstruction detection for vehicle safety.
• Programmable Settings: Adjustable up/down speed, automatic timer, and operation mode.

Technical Specifications
