eSSL Security

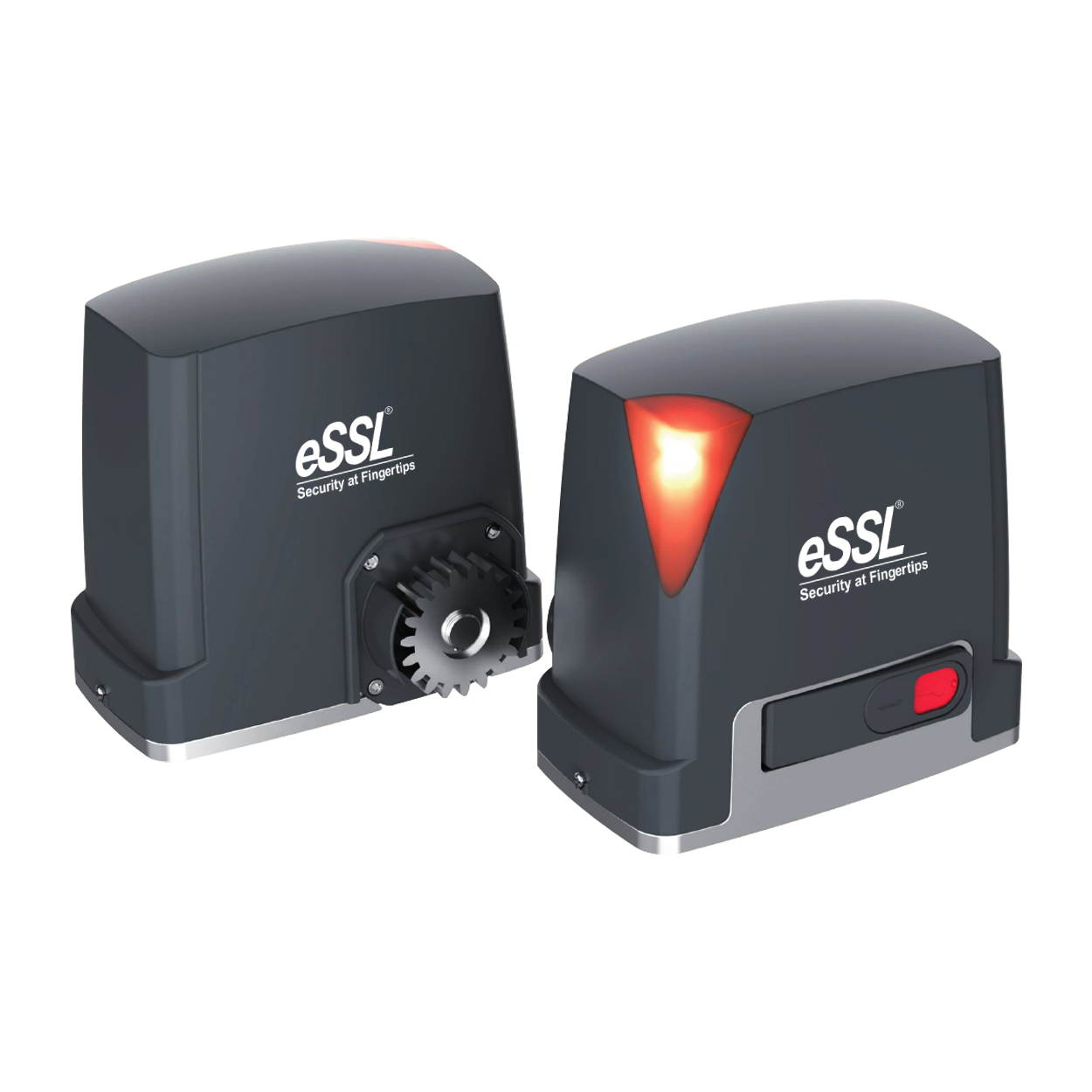

eSSL HG-BDC-800 Sliding Gate Motor – 800kg Capacity Automatic Gate

Rs. 0.00

Sale Sold out

eSSL HG-BDC-800 Sliding Gate Motor

The eSSL HG-BDC-800 is a high-performance DC brushless sliding gate motor designed for residential, commercial, and light industrial automation. It delivers smooth operation with intelligent control, soft start/stop technology, and built-in safety features, making it ideal for gates up to medium-heavy load capacity.

DC Brushless Motor Technology

Equipped with a 24V DC brushless motor for efficient, low-noise, and long-lasting performance.

Built-in Smart Controller

Integrated control board reduces wiring complexity and enables easy plug-and-play installation.

Soft Start & Stop Function

Ensures smooth gate movement, reduces mechanical stress, and increases system lifespan.

Manual Override System

Allows gate operation during power failure using a clutch release mechanism.

Key Features

24V DC Brushless Motor
Built-in Controller for Easy Installation
Supports Remote Control Operation
Soft Start and Soft Stop Technology
Manual Release for Emergency Use
Compatible with Photocells and Safety Sensors
Supports Wall Switch and External Controls
Stable Performance with Accurate Limit System
Optional Auto-Close Function
LED Status Indication

Technical Specifications

Specification	Details
Model	HG-BDC-800
Motor Type	DC Brushless Motor
Motor Voltage	24V DC
Input Power	220V AC
Motor Power	120W
Maximum Gate Weight	Up to 800 kg
Running Speed	Approx. 12 m/min
Output Speed	50 m/min (gear output)
Operating Temperature	-30°C to +60°C
Relative Humidity	≤ 90%
Remote Control Range	≥ 30 meters
Control System	Built-in Intelligent Controller
