eSSL HM520Pro Handheld Metal Detector – Portable Security Wand
eSSL HM520Pro Handheld Metal Detector – Portable Security Wand
Couldn't load pickup availability

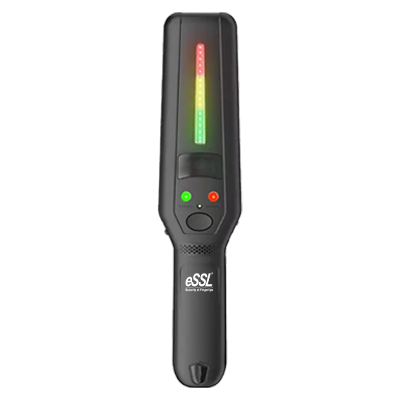

eSSL HM520Pro Super Scanner Hand Held Metal Detector
The eSSL HM520Pro is a professional-grade hand held metal detector designed for high-sensitivity security screening applications. Featuring advanced digital signal processing technology, adjustable sensitivity, sound and vibration alarms, and a lightweight ergonomic design, the HM520Pro provides reliable detection of concealed metallic objects in airports, government buildings, factories, educational institutions, correctional facilities, and event venues.
High Sensitivity Detection
Detects small metallic objects such as razor blades, knives, firearms, coins, and other concealed metal items with high accuracy.
Digital Signal Processing Technology
Advanced DSP technology ensures stable performance and reduces false alarms caused by environmental interference.
Dual Alarm Modes
Provides both audible and vibration alerts with LED indication for convenient operation in various environments.
Ergonomic & Lightweight Design
Compact ABS construction allows comfortable operation during extended security screening sessions.
Key Features
- Professional Super Scanner Hand Held Metal Detector.
- Advanced Digital Signal Processing (DSP) Technology.
- High Sensitivity Detection.
- Adjustable Sensitivity Control.
- Sound and Vibration Alarm Modes.
- LED Power and Low Battery Indicators.
- Rechargeable Battery Support.
- Low Power Consumption.
- Lightweight and Ergonomic Design.
- Suitable for Continuous Security Screening.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HM520Pro |
| Type | Hand Held Metal Detector |
| Technology | Digital Signal Processing (DSP) |
| Operating Frequency | Approximately 22 KHz |
| Operating Voltage | 7V – 12V DC |
| Power Supply | 9V Battery or Rechargeable Battery Pack |
| Power Consumption | < 270 mW |
| Operating Current | < 50 mA |
| Operating Temperature | -10°C to +65°C |
| Humidity | 0% – 95% RH (Non-Condensing) |
| Product Dimensions | 410 × 85 × 45 mm |
| Net Weight | Approximately 400 g |
| Material | High Impact ABS |
| Alarm Modes | Audio / Vibration with LED Indication |
| Battery Indicator | Low Battery LED Indication |
| Charging Support | Yes (Rechargeable Version) |
Detection Performance
| Object | Typical Detection Distance |
|---|---|
| Pin | 30 – 60 mm |
| ₹1 Coin | 90 – 120 mm |
| 6-inch Knife | 180 – 220 mm |
| Small Handgun | 180 – 250 mm |
| 20 mm Steel Ball | 120 – 150 mm |
Operating Features
- High sensitivity metal detection.
- Audible and vibration alarms.
- Low battery indication.
- Rechargeable battery compatibility.
- Lightweight ergonomic handle.
- Reliable and stable operation.
- Easy maintenance and long service life.
Applications
- Airports & Railway Stations
- Government Buildings
- Factories & Industrial Facilities
- Schools & Colleges
- Hotels & Shopping Malls
- Banks & Financial Institutions
- Prisons & Correctional Facilities
- Hospitals
- Sports Stadiums & Public Events
- Security Checkpoints & VIP Protection
Why Choose eSSL HM520Pro?
- Advanced DSP technology for stable performance.
- High sensitivity for detecting concealed metallic objects.
- Dual alarm modes with LED indication.
- Lightweight and ergonomic design.
- Low power consumption.
- Rechargeable battery support.
- Ideal for professional security screening applications.
Package Includes
- 1 × eSSL HM520Pro Hand Held Metal Detector
- 9V Battery / Rechargeable Battery Pack (Depending on Variant)
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
