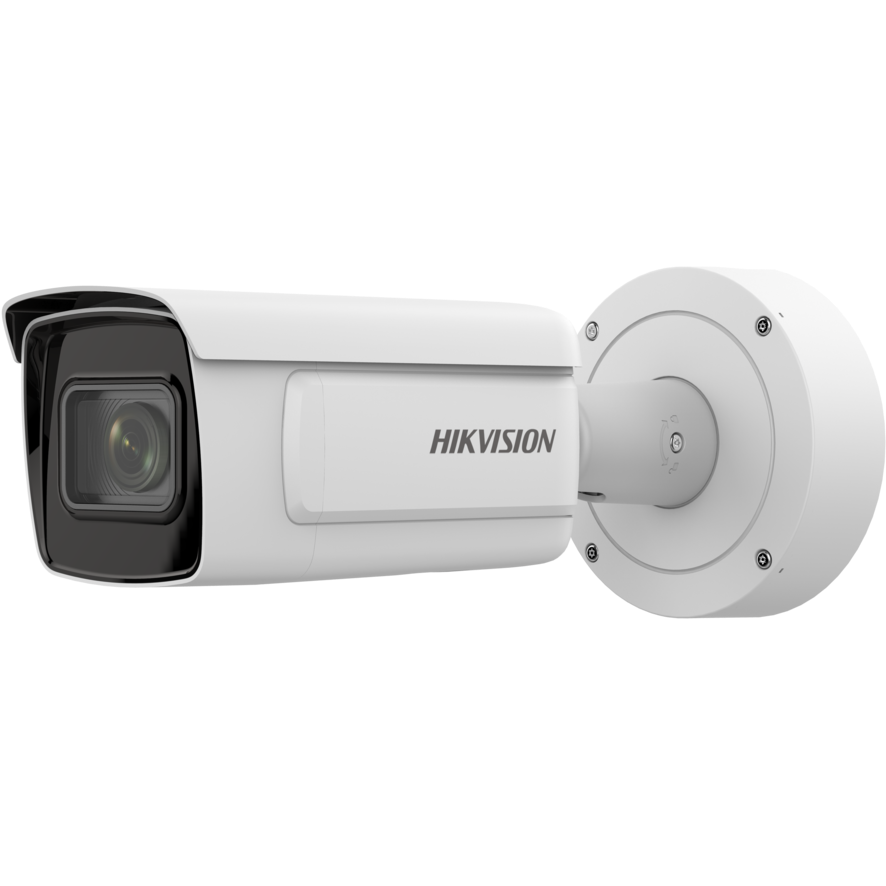

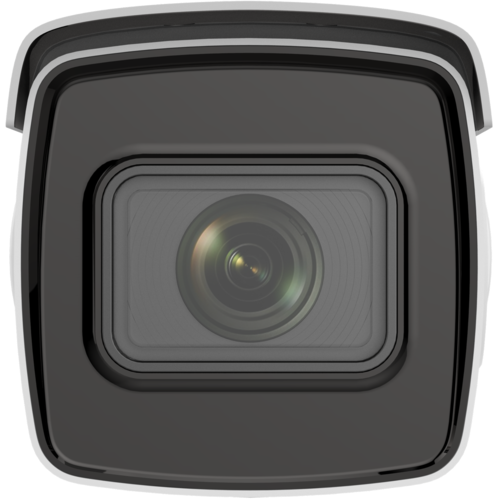

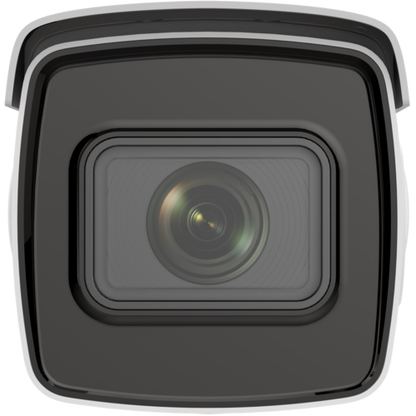

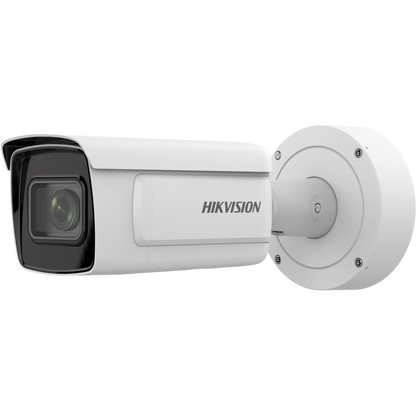

iDS-2CD7A46G0-IZHS(Y)(R)

Name: iDS-2CD7A46G0-IZHS(Y)(R)
Brand: My Store
Availability: InStock

Rs. 0.00

Sale Sold out

Product variants

Quantity

Camera

Image Sensor - 1/1.8" Progressive Scan CMOS
Max. Resolution - 2560 × 1440
Min. Illumination - Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time - 1 s to 1/100,000 s
Day & Night - IR cut filter
Blue glass module to reduce ghost phenomenon

Focal Length & FOV - 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Focus - Auto, semi-auto, manual
Iris Type - P-iris
Aperture - 2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73

Main Stream - 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720)
60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
Sub-Stream - 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream - 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream - 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream - 50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression - H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate - 32 Kbps to 8 Mbps
H.264 Type - Baseline Profile/Main Profile/High Profile
H.265 Type - Baseline Profile/Main Profile/High Profile
Bit Rate Control - CBR/VBR
Scalable Video Coding (SVC) - H.264 and H.265 encoding
Region Of Interest (ROI) - 4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Target Cropping - Yes

Environment Noise Filtering - Yes
Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio Bit Rate - 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Audio Compression - G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Type - Mono sound

Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View - Up to 20 channels
API - Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host - Up to 32 users
3 user levels: administrator, operator, and user
Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage - NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client - iVMS-4200, Hik-Connect
Web Browser - Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Not recommended: Safari 11+, Edge

Image Parameters Switch - Yes
Image Settings - Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Day/Night Switch - Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR) - 140 dB
Image Enhancement - BLC, HLC, Defog, 3D DNR
SNR - ≥ 52 dB
Privacy Mask - 8 programmable polygon privacy masks, mask color or mosaic configurable
Image Stabilization - EIS
Picture Overlay - LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Video Output - 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface - 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage - Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key - Yes
Power Output - With -Y: 12 VDC, max. 100 mA

Event
Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event - Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
Linkage - Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Multi-Target - Type Detection
Supports simultaneous detection and capture of human body, face and vehicle

Gets 7 face features, 13 human body features and 2 vehicle features
Face Capture - 1. Detects up to 60 faces simultaneously
2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°

3. Uploads face with background and closed-up face pictures
Face Comparison - Up to 10 face libraries. 150,000 faces for each library. 150,000 faces in total.
Supports face library encryption
Perimeter Protection - Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Power - 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W
Dimension - Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
Package Dimension - 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″) Approx. 1950 g (4.2 lb.)
With Package Weight - Approx. 3070 g (6.7 lb.)
Storage Conditions - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions - -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language - 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function - Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams

EMC - FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7);

KC (KN 32: 2015, KN 35: 2015)
Safety - UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014/A11:2017);

BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

LOA (IEC/EN 60950-1)
Environment - CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Protection - IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Anti-Corrosion Protection - With -Y: NEMA 4X(NEMA 250-2018)
Automotive And Railway - EN50121-4
Other - PVC FREE
