eSSL InBio-160 Pro Plus Network Access Controller – 1-Door Access Management

📞 Call 9315441078 for Best Price

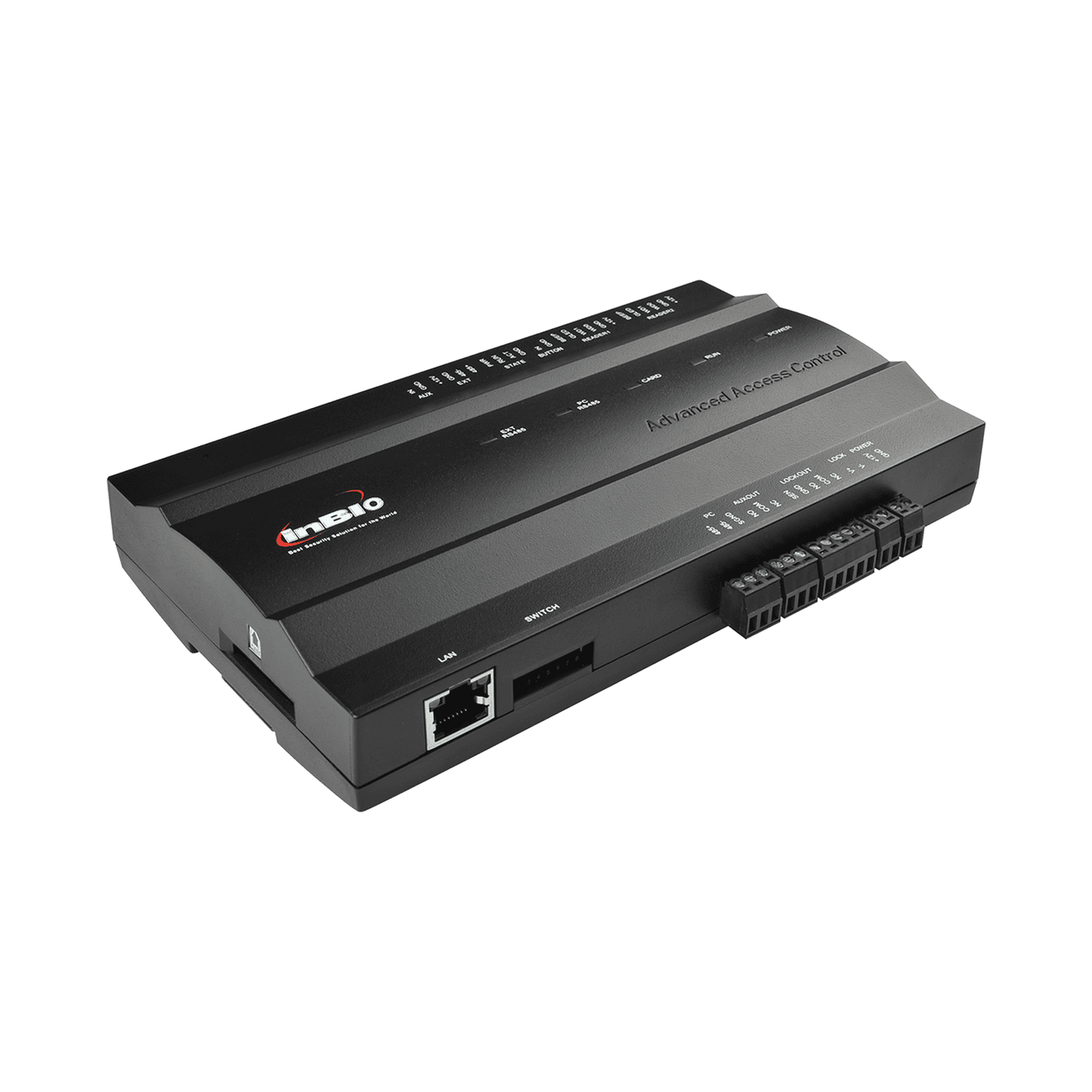

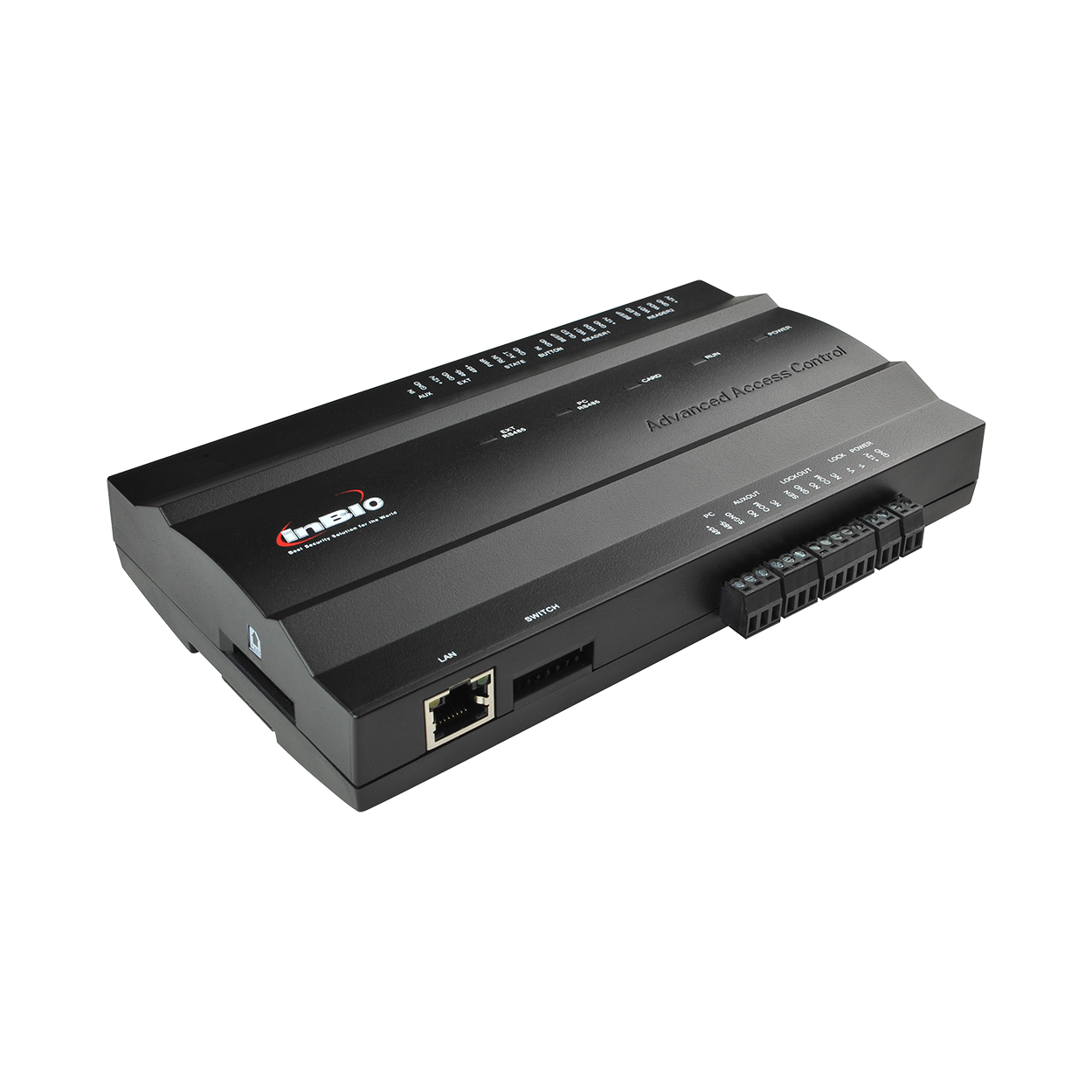

eSSL InBio-160 Pro Plus Door Controller

The eSSL InBio-160 Pro Plus is a professional single-door biometric access control panel powered by Linux OS. It supports fingerprint and RFID authentication with large storage capacity and advanced access control functions, making it ideal for offices, commercial facilities, and high-security applications.

Key Features

Controls 1 door from a single controller
Linux operating system for reliable performance
Supports fingerprint and RFID authentication
30,000 card capacity, expandable to 100,000 with a license
20,000 fingerprint templates capacity
Stores up to 500,000 transaction records
Supports Wiegand and RS485 readers
Real-time monitoring through web browser
Advanced anti-passback and interlock functions
Remote door opening and closing support

Technical Specifications

Specification	Details
Model	InBio-160 Pro Plus
Product Type	Single Door Biometric Access Controller
Operating System	Linux OS
Number of Doors	1 Door
Card Capacity	30,000 Cards (Default), Expandable to 100,000 with License
Fingerprint Capacity	20,000 Templates
Transaction Capacity	500,000 Records
Communication	TCP/IP
Supported Readers	2 × RS485 Readers or 2 × 26-bit Wiegand Readers
Reader Types	26-bit Wiegand and RS485 Readers
Number of Inputs	3 (1 Exit Button, 1 Door Sensor, 1 AUX Input)
Number of Outputs	2 (1 Form-C Relay for Lock and 1 Form-C Relay for AUX Output)
Mounting	Wall Mount
Power Supply	9.6V – 14.4V DC
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-Condensing)
Dimensions (L × W × H)	185.12 × 106 × 36.07 mm
Access Control Interface	Wiegand (Card Reader / QR Code Reader)
Communication Ports	TCP/IP, Wiegand Input ×2, AUX Output ×1, Lock ×1, Door Sensor ×1, Exit Button ×1, Alarm ×1
Supported Software	eSSL BioCVSecurity 6.4.1 (Web Version)
Supported Databases	PostgreSQL (Default), MS SQL, Oracle
