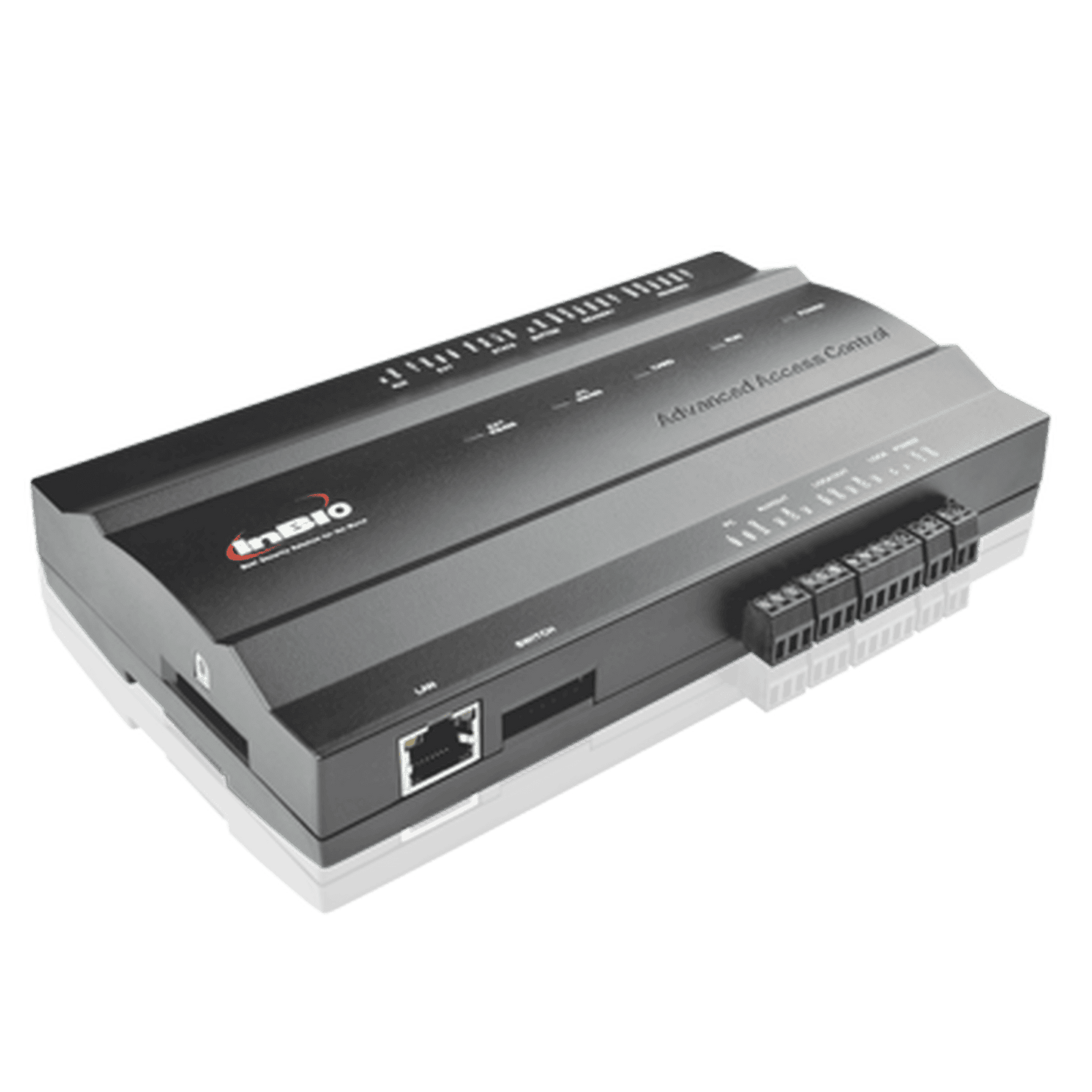

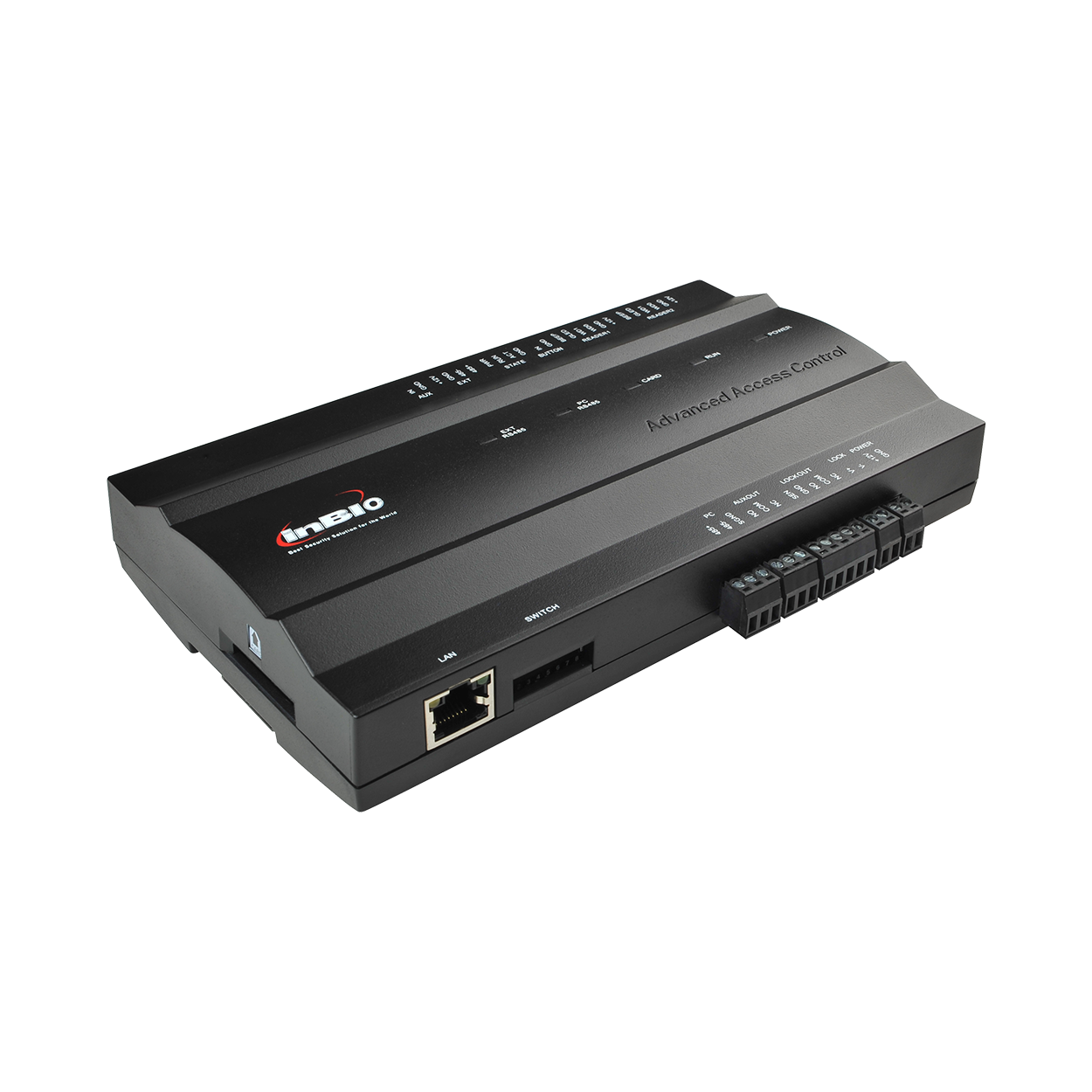

InBio-260 Pro Plus

The eSSL InBio‑260 Pro Plus is a professional 2‑door biometric access control panel designed for secure and scalable access management in enterprise, commercial, and industrial environments. It runs on a stable Linux operating system and supports high capacities for cards, fingerprints, and transaction logs, making it suitable for large-scale installations. With support for multiple reader types, flexible communication interfaces, advanced access features, and seamless integration with centralized security software, the InBio‑260 Pro Plus delivers reliable performance and real-time monitoring for modern access control applications.

Key Highlights

• Linux Operating System: Stable and secure platform for continuous access control.
• Dual Door Control: Manages up to 2 doors with full access capabilities.
• High Capacities: Supports up to 100,000 cards, 20,000 fingerprint templates, and 500,000 transaction logs.
• Flexible Reader Support: Works with both RS‑485 and Wiegand readers.
• Robust Interfaces: Includes multiple inputs/outputs for locks, sensors, exit buttons, alarms, and auxiliary devices.
• Advanced Access Features: Supports anti‑passback, interlock, linkage functions, multi‑card opening, and remote door control.

Features

• Standalone & Network Integration: Supports both independent operation and centralized network management.
• Rich Communication Options: Includes TCP/IP, RS‑485, and Wiegand for seamless system expansion.
• Reliable Data Handling: Large local storage keeps data safe even if network connectivity is interrupted.
• Real-Time Monitoring: Enables live event tracking and status reporting through compatible software.
• Multiple Input/Output Support: Interfaces for door sensors, exit devices, locks, alarms, and auxiliary inputs.
• Durable Design: Wall-mountable construction built for continuous commercial and industrial use.

Software and Database Supported

• Centralized Software: Compatible with eSSL BioCVsecurity 6.4.1 (Web Version) for access control management, configuration, and reporting.
• Database Options: Default support for PGSQL with alternatives including MSSQL and Oracle for scalable secure data storage.
• Web-Based Monitoring: Provides real-time event and door status monitoring through browser interfaces.
• Software Features: Includes configuration for time zones, access levels, holidays, anti-passback, interlock, multi-card opening, linkage, remote door actions, and real-time web monitoring.
• PC Requirements: Minimum 16 GB RAM and Windows 10 or higher for software installation; firewall/antivirus should be disabled during install.

Technical Specifications
