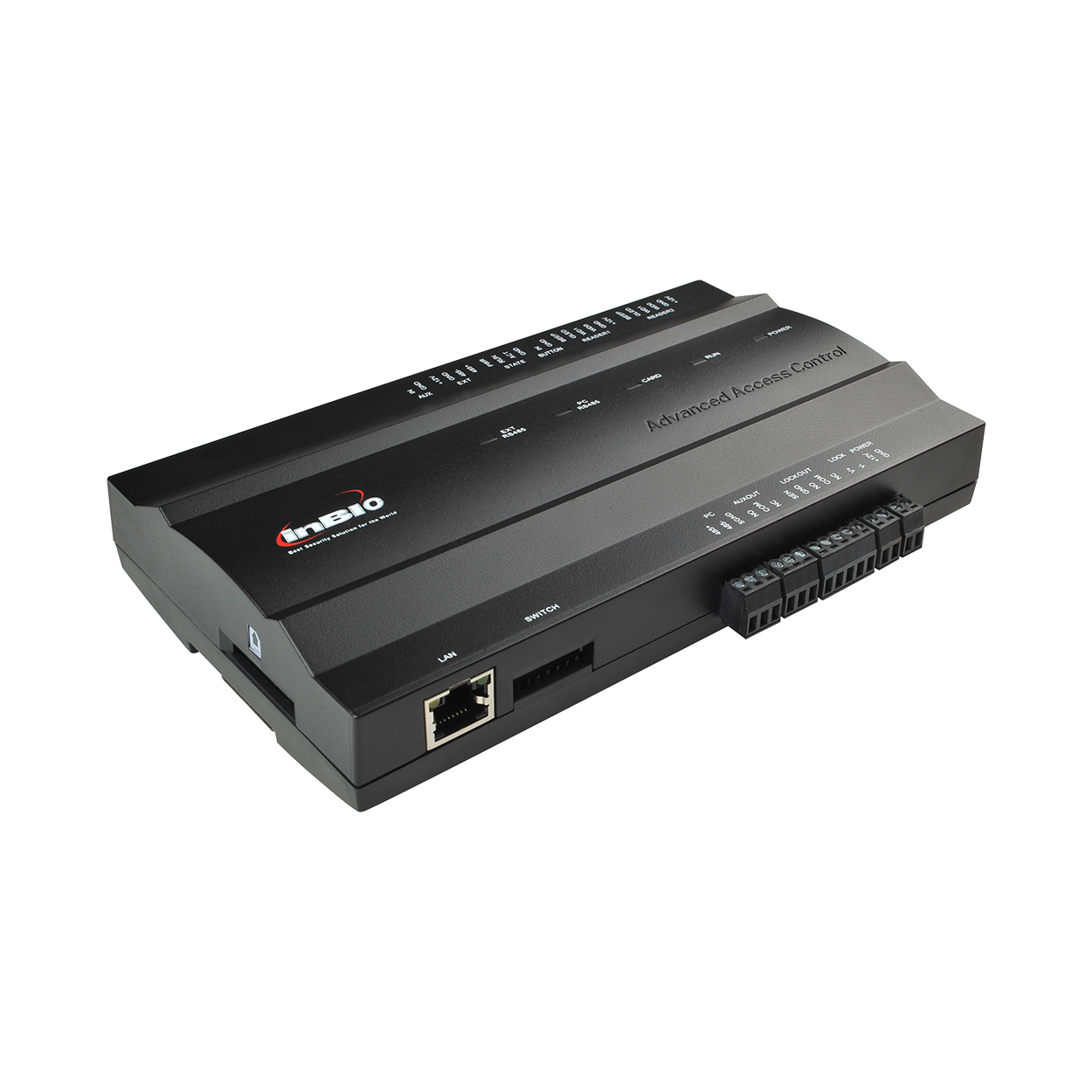

InBio-460 Pro Plus

The eSSL InBio-460 Pro Plus is a robust and high-capacity four-door access control panel designed for enterprise and commercial security systems. It runs on a stable Linux OS and supports extensive user and transaction capacities, making it ideal for large installations requiring secure, scalable, and real-time access management. With support for multiple reader types, flexible communication interfaces, and advanced access control functions, the InBio-460 Pro Plus delivers powerful performance and seamless integration with centralized software platforms for monitoring, reporting, and configuration.

Key Highlights

• Multi-Door Control: Handles up to 4 doors with full monitoring and control.
• High Capacities: Supports up to 100,000 card holders, 20,000 fingerprint templates, and 500,000 transaction logs.
• Linux-Based Platform: Stable and secure operating system for continuous access control operations.
• Flexible Reader Support: Works with RS-485 and Wiegand readers for varied biometric and card technologies.
• Advanced Access Rules: Includes anti-passback, interlock, holidays, and time zones for precise access policies.
• Wide Environmental Range: Reliable in typical indoor environments with standard operating conditions.

Features

• Standalone & Network Mode: Operates independently or connects to centralized access control networks.
• Rich I/O Interfaces: Includes inputs and outputs for locks, sensors, exit buttons, alarms, and auxiliary devices.
• High Integration Support: Integrates with fingerprint and card readers over RS-485 or Wiegand protocols.
• Real-Time Monitoring: Enables web-based monitoring of door events and controller status.
• Event Handling: Supports advanced functions like multi-card opening and remote door control.
• Reliable Data Management: Stores large volumes of transactions and user data locally and syncs with server software.
• Robust Build: Designed for commercial and enterprise deployment with durable hardware.

Software and Database Supported

• Centralized Software Platform: Compatible with eSSL BioCVsecurity 6.4.1 web-based software for access control management.
• Database Flexibility: Default support for PGSQL with options for Microsoft SQL Server or Oracle.
• Web Equipment Management: Supports real-time monitoring via web browser interfaces.
• Enterprise Software Features: Includes time zones, access levels, anti-passback, linkage functions, and remote door operations.
• Minimum PC Requirements: Recommended 16 GB RAM, Windows 10 or higher, antivirus/firewall disabled during installation.

Technical Specifications
