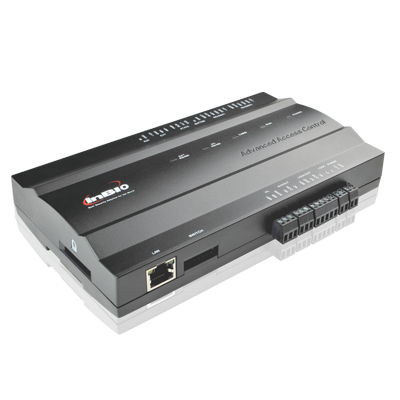

eSSL InBio260 2-Door IP-Based Biometric Access Control Panel

Rs. 22,451.00

~~Rs. 29,186.00~~ Rs. 22,451.00

Sale Sold out

eSSL InBio 260 Multi-Door Access Controller

The eSSL InBio 260 is a professional 2-door biometric access control panel featuring embedded fingerprint verification and advanced access management functions. With support for TCP/IP and RS485 communication, large user capacities, and comprehensive security features, it is ideal for commercial and enterprise access control applications.

Key Features

Controls up to 2 doors from a single controller
Embedded fingerprint verification and advanced access control functions
Stores up to 30,000 card holders
Stores up to 3,000 fingerprint templates
Stores up to 100,000 event records
Supports TCP/IP and RS485 communication
Supports Wiegand and RS485 readers
Supports Anti-Passback, Interlock and First-Card Opening
Supports Multi-Card Opening and Duress Password Entry
Built-in auxiliary input and output linkages

Technical Specifications

Specification	Details
Model	InBio 260
Product Type	2-Door Biometric Access Controller
Number of Doors Controlled	2 Doors
Supported Readers	8 Readers (4 RS485 Readers and 26-bit Wiegand Readers)
Reader Types	26-bit Wiegand and RS485 FR Series Readers
Inputs	6 (2 Exit Devices, 2 Door Status, 2 AUX Inputs)
Outputs	4 (2 Form-C Relays for Locks and 2 Form-C Relays for AUX Outputs)
Card Holder Capacity	30,000 Cards
Fingerprint Capacity	3,000 Templates
Log Events Capacity	100,000 Records
Communication	TCP/IP and RS485
CPU	32-bit 400 MHz CPU
RAM	32 MB
Flash Memory	128 MB
Power Supply	9.6V – 14.4V DC
Operating Temperature	0°C to 45°C
Operating Humidity	20% – 80% RH
Package Dimensions	350 × 90 × 300 mm (L × H × W)
Package Weight	3.6 kg
