eSSL Security

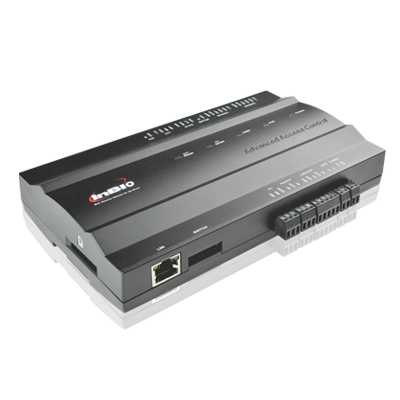

eSSL InBio460 4-Door IP-Based Biometric Access Control Panel

Rs. 24,288.00

~~Rs. 31,574.00~~ Rs. 24,288.00

Sale Sold out

eSSL InBio 460 Multi-Door Access Controller

The eSSL InBio 460 is an advanced 4-door biometric access control panel designed for enterprise security applications. Powered by a 32-bit MIPS processor, it supports fingerprint and RFID authentication with TCP/IP and RS485 communication, making it ideal for centralized access management in commercial and industrial environments.

Key Features

Controls up to 4 doors from a single controller
32-bit MIPS CPU for high-performance processing
Supports fingerprint and RFID authentication
Stores up to 3,000 fingerprints
Stores up to 30,000 cards
Stores up to 100,000 event records
Supports TCP/IP and RS485 communication
Supports real-time monitoring via web browser
Supports Anti-passback and Interlock functions
Supports remote door opening and closing
Supports video server integration
Supports auxiliary inputs and outputs for alarm integration

Technical Specifications

Specification	Details
Model	InBio 460
Product Type	4-Door Biometric Access Controller
CPU	32-bit MIPS CPU
RAM	32 MB
Flash Memory	128 MB
Fingerprint Capacity	3,000 Templates
Card Capacity	30,000 Cards
Event Buffer	100,000 Records
Power Supply	12V DC, 5A for Controller
Maximum Reader Current	1A
Wiegand Reader Ports	4 Ports (26/34-bit Wiegand, 4/8-bit for PIN RS485)
Extended Reader Port	1 × RS485 Port
Communication	TCP/IP, RS485
Baud Rate	38,400 bps (Recommended), 9,600 bps, 19,200 bps, 57,600 bps (Selectable)
Input Ports	8 Inputs (4 Exit Buttons and 4 Door Sensors)
Supported Readers	F12 (RS485) Fingerprint Reader
