eSSL JS-32E RFID Card Reader – 125KHz EM for Access Control

📞 Call 9315441078 for Best Price

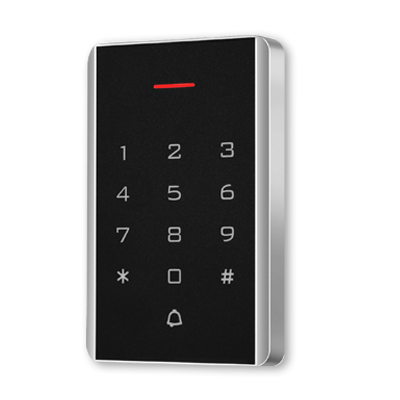

JS-32E Standalone Access Control Reader

The JS-32E Standalone Access Control Reader is a compact and reliable access control solution designed for indoor security applications. Equipped with an integrated keypad and EM proximity card reader, the device supports multiple authentication methods including PIN, Card, and PIN + Card. With support for up to 2,000 users and Wiegand 26-bit input/output, the JS-32E is ideal for offices, apartments, shops, and restricted access areas.

Key Features

Supports EM 125KHz proximity cards
Built-in keypad for PIN authentication
Multiple access methods: Card, PIN, and PIN + Card
User capacity of up to 2,000 users
Wiegand 26-bit input and output
Adjustable door opening time
Compact and elegant indoor design
Low power consumption
Easy installation and operation
Suitable for standalone access control applications

Technical Specifications

Specification	Details
Model	JS-32E
Product Type	Standalone Access Control Reader
Card Type	EM 125KHz Proximity Card
User Capacity	2,000 Users
Authentication Modes	PIN, Card, PIN + Card
Working Voltage	DC 12V ±10%
Reading Range	3 – 6 cm
Door Opening Time	0 – 99 Seconds (Adjustable)
Current Consumption	< 30mA (Standby)
Electric Lock Output	< 1A
Wiegand Interface	26-bit Input and Output
Operating Humidity	10% – 90% RH (Non-Condensing)
Operating Temperature	-45°C to +60°C
Short Circuit Protection	< 100µs Response Time
Housing Material	Plastic Case
Installation Type	Indoor Use
Dimensions (L × W × H)	115 × 75 × 16 mm
