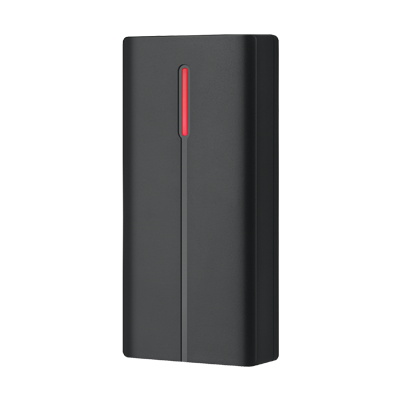

eSSL JS-500M RFID Card Reader – 13.56MHz Mifare for Access Control

Rs. 1,401.00

~~Rs. 1,821.00~~ Rs. 1,401.00

Sale Sold out

JS-500M Mifare Card Reader

The JS-500M Mifare Card Reader is a compact and weatherproof RFID reader designed for secure access control applications. Featuring an IP66-rated waterproof enclosure, the reader is suitable for both indoor and outdoor installations. It supports 13.56 MHz Mifare cards and provides Wiegand 26-bit and 34-bit output for seamless integration with access control and time attendance systems.

Key Features

Supports 13.56 MHz Mifare cards
IP66-rated waterproof design for outdoor installation
Wiegand 26-bit and 34-bit output
Reading distance up to 8 cm
Durable ABS housing
Adjustable door opening time
Low power consumption
Built-in short-circuit protection
Easy integration with third-party access control systems
Compact and modern design

Technical Specifications

Specification	Details
Model	JS-500M
Product Type	Mifare Card Reader
Card Type	13.56 MHz Mifare Cards
Output Interface	Wiegand 26-bit / 34-bit
Working Voltage	DC 12V ±10%
Reading Range	3 – 8 cm
Door Opening Time	0 – 99 Seconds (Adjustable)
Current Consumption	< 30mA (Standby)
Electric Lock Output	< 3A
Short Circuit Protection	< 100μs Response Time
Operating Humidity	10% – 90% RH (Non-Condensing)
Operating Temperature	-45°C to +60°C
Protection Rating	IP66
Housing Material	ABS Plastic
Dimensions (L × W × H)	109 × 47 × 20 mm
