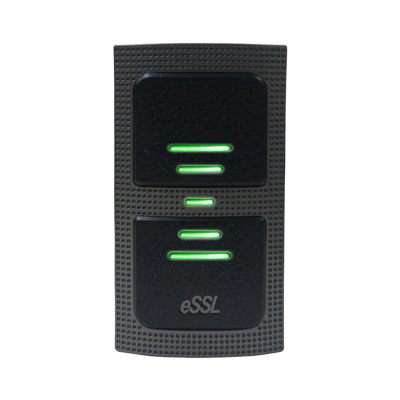

eSSL KR500-M RFID Card Reader – 13.56MHz Mifare for Access Control

Rs. 1,840.00

~~Rs. 2,392.00~~ Rs. 1,840.00

Sale Sold out

KR500-M Mifare Card Reader

The KR500-M Mifare Card Reader is a reliable and high-performance RFID reader designed for secure access control and time attendance applications. Operating at 13.56 MHz, the KR500-M delivers fast card reading performance, seamless Wiegand connectivity, and dependable operation in various environments. Its compact design, dual-color LED indicators, and built-in buzzer make it an ideal solution for offices, commercial buildings, educational institutions, and industrial facilities.

Key Features

13.56 MHz Mifare Card Reader
Reading distance up to 5 cm
Fast card reading speed of ≤200 ms
Supports 26-bit and 34-bit Wiegand output
Dual-color LED indicators
Built-in buzzer for audio feedback
Supports external LED control inputs
Low power consumption
Compact and elegant design
Easy integration with access control systems

Product Advantages

Fast and accurate Mifare card authentication
Reliable and stable performance
Simple installation and maintenance
Compatible with third-party access control systems
Low power consumption for continuous operation
Durable design for long-term usage

Technical Specifications

Specification	Details
Model	KR500-M
Card Type	13.56 MHz Mifare Card
Reading Distance	Up to 5 cm
Reading Time	≤ 200 ms
Connectivity	Wiegand Interface
Output Format	26-bit Wiegand / 34-bit Wiegand
Input Ports	2 External LED Control Inputs
Power Supply	DC 6V – 14V
Maximum Current Consumption	70mA
LED Indicators	Red and Green Dual-Color LEDs
Beeper	Yes
Operating Temperature	-20°C to +65°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Color	Black
Dimensions (W × H × T)	116 × 75 × 17.3 mm
Weight	50 g
