eSSL KR503-M RFID Card Reader – 13.56MHz Mifare for Access Control

📞 Call 9315441078 for Best Price

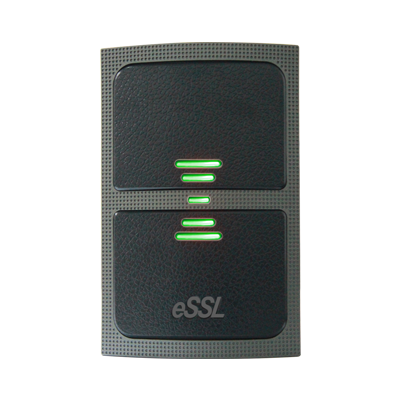

KR503-M Mifare Card Reader

The KR503-M Mifare Card Reader is a 13.56 MHz RFID access control reader designed for secure and reliable authentication using Mifare cards. It supports RS485 communication and is suitable for modern access control systems requiring short-range, high-security card verification.

Key Features

13.56 MHz Mifare card reader
Read range up to 5 cm
RS485 communication interface
Fast card reading time ≤ 300 ms
Supports 26-bit and 34-bit Wiegand output (default)
Dual-color LED indicator (Red / Green)
Built-in buzzer support
External LED and buzzer control inputs
Compact black housing design

Technical Specifications

Specification	Details
Model	KR503-M
Product Type	Mifare Card Reader
Card Frequency	13.56 MHz
Read Range	Up to 5 cm
Communication	RS485
Reading Time	≤ 300 ms
Operating Voltage	DC 6–14V
Current	Max 70 mA
Output Format	26-bit / 34-bit Wiegand (Default)
LED Indicator	Red / Green Dual Color LED
Buzzer	Yes
Input Ports	External LED Control, External Buzzer Control
Operating Temperature	-20°C to +65°C
Operating Humidity	10% – 90% RH (Non-condensing)
Dimensions (W × H × T)	116 × 75 × 17.3 mm
