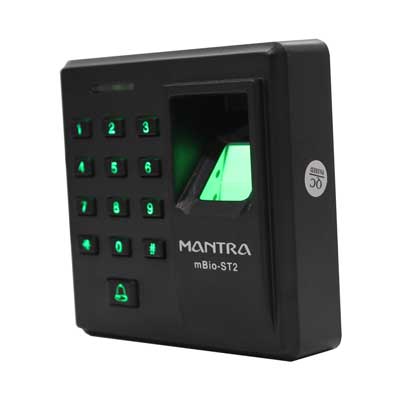

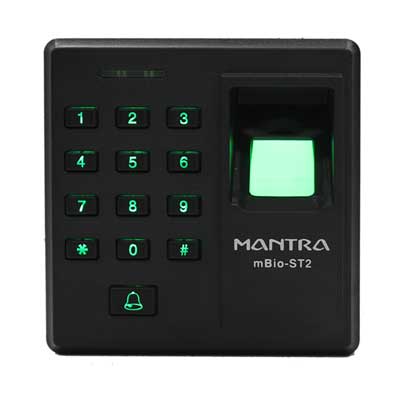

Mantra mBio ST2
Mantra mBio ST2
Couldn't load pickup availability
The Mantra mBio ST2 offers reliable access control with a range of capabilities. Use as a standalone reader with door lock, exit switch, alarm, and door sensor connections. Includes Wiegand IN and OUT ports for third-party access control integration, and a USB port for offline data management.
| Battery | NA |
|---|---|
| Dimension | 88*88*130 mm |
| Fingerprint Capacity | 3000 |
|---|---|
| ID Card Capacity | 1000 |
| Record Capacity | 100000 |
| Card Type | Proximity card |
| Identify mode | Finger, Card, Password |
| LED Indicator | 2 LED Status (Green, Red) |
| Voice Prompt | NA |
| Identification Time | ≤ 1 sec |
| Keypad Type | Numeric |
| Wiegand/RS485 Interface | Wiegand Input & Output 26/34 bit |
| Fingerprint scanner type | 600 DPI Optical Sensor |
|---|---|
| Communication | USB |
| Push Data technology | NA |
| FRR | 0.001 |
| FAR | 1.0E-6 |
| Operation Humidity | 20% ~ 80% |
| Operation Temperature | 10° C ~ 60° C |
| Power | DC 12V 2A |
| Finger placement angle | 360° rotation allowed |

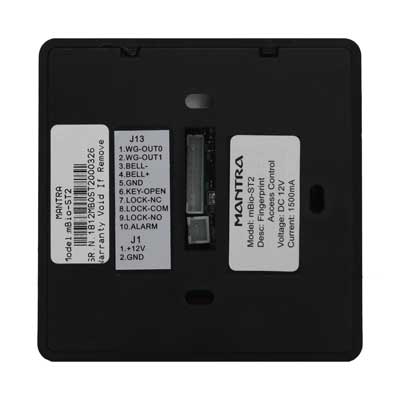

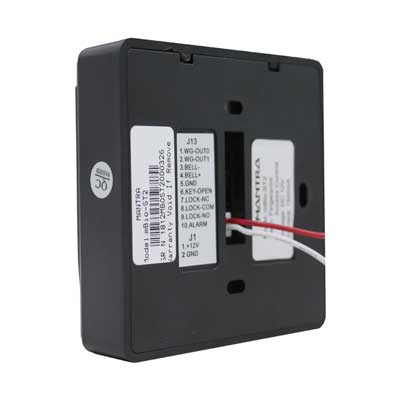

| Wiring Connections | External Card Reader, Electric Lock, Exit Button, Alarm, Bell |
|---|
Introducing Mantra mBio ST2 - the expertly designed access control system for your body. With a 600 DPI optical sensor fingerprint scanner and a 360° finger placement angle, this system provides quick and accurate identification in less than a second. Store up to 3000 fingerprints and 1000 ID cards, with a record capacity of 100000. With a sleek dimension of 88*88*130 mm, this system is perfect for any environment.
