Matrix Eternity Menx 16sac

Matrix Eternity Menx 16sac

The Matrix Eternity MENX16SAC IP PBX System offers a robust, scalable communication platform for large enterprises. Supporting up to 3232 users and 99 IP trunks, it provides flexibility and seamless connectivity across VoIP, GSM/3G/4G, and PSTN networks. This advanced system is equipped with 16 universal slots, ensuring businesses can integrate various modules to suit evolving communication needs. The system features redundancy with both AC and DC power supplies, making it ideal for mission-critical environments.

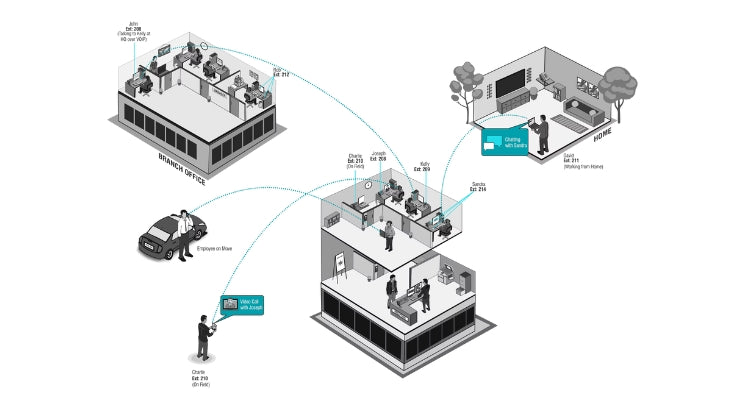

Interface Diagram

Key Features:

• Scalable Capacity: Supports up to 3232 users and 99 IP trunks, ideal for growing businesses.
• Redundancy Support: Equipped with AC and DC power supply redundancy for uninterrupted communication.
• Seamless Connectivity: Connect to VoIP, GSM, and PSTN networks for versatile communication.
• Hot-Swap Expansion: Supports hot-swap for easy integration and upgrades of expansion cards.
• Flexible Installation: Can be installed as wall mount or tabletop, offering flexibility for diverse office spaces.

Features:

• Maximum Universal Slots: 16, enabling easy expansion with various modules.
• Maximum IP Trunks: 99 for handling a high volume of calls and data.
• Maximum Users Supported: Up to 3232 users, perfect for large enterprises.
• Redundancy: Supports AC and DC power supply redundancy for uninterrupted operations.
• Hot-Swap Support: Easily swap out expansion cards without downtime.
• Voice Mail Channels: Up to 64 for handling voicemail needs.
• Seamless Network Integration: Supports VoIP (SIP), GSM/3G/4G, and PSTN networks.
• ISDN T1/E1 PRI Channels: Up to 240 channels (8 ports) for advanced communication options.

Technical Specifications:

• Compatible Server Software: SARVAM UCS ENT
• Maximum SIP Trunks: 99
• Maximum GSM/3G/4G Trunks: Up to 64
• CO Ports: Up to 128
• Maximum VoIP (VOCODER) Channels: Up to 248
• ISDN T1/E1 PRI Channels: Up to 240 channels (8 ports)
• Maximum IP Subscribers: Up to 2000
• Maximum Digital Subscribers: Up to 128
• Maximum Analog Subscribers: Up to 512
• Maximum Voicemail Channels: Up to 64
• Power Supply: 100-240 VAC, 47-60Hz, 48VDC +20% to -15%
• Redundancy: Yes (AC and DC Power Supply and CPU Card)
• Hot-Swap Support: Yes (For Expansion Cards)
• Installation Options: Wall Mount, Table Top

Why Choose Matrix Eternity MENX16SAC?

• Scalable and Flexible: The Eternity MENX16SAC provides a powerful communication system with the capacity to support up to 3232 users and 99 IP trunks, making it ideal for growing businesses and large enterprises.
• Reliable and Redundant: With AC and DC power supply redundancy, your system will remain operational even during power fluctuations or failures, ensuring seamless business continuity.
• Easy Expansion: The hot-swap capability for expansion cards ensures that you can easily upgrade or modify the system to accommodate new requirements without service interruptions.
• Versatile Connectivity: This PBX supports a wide range of communication methods, including VoIP, GSM, PSTN, and ISDN, enabling businesses to integrate their existing infrastructure smoothly.
• Cost-Effective: The system combines flexibility, scalability, and redundancy, delivering excellent value for businesses looking to maximize their investment in communication technology.
