Matrix

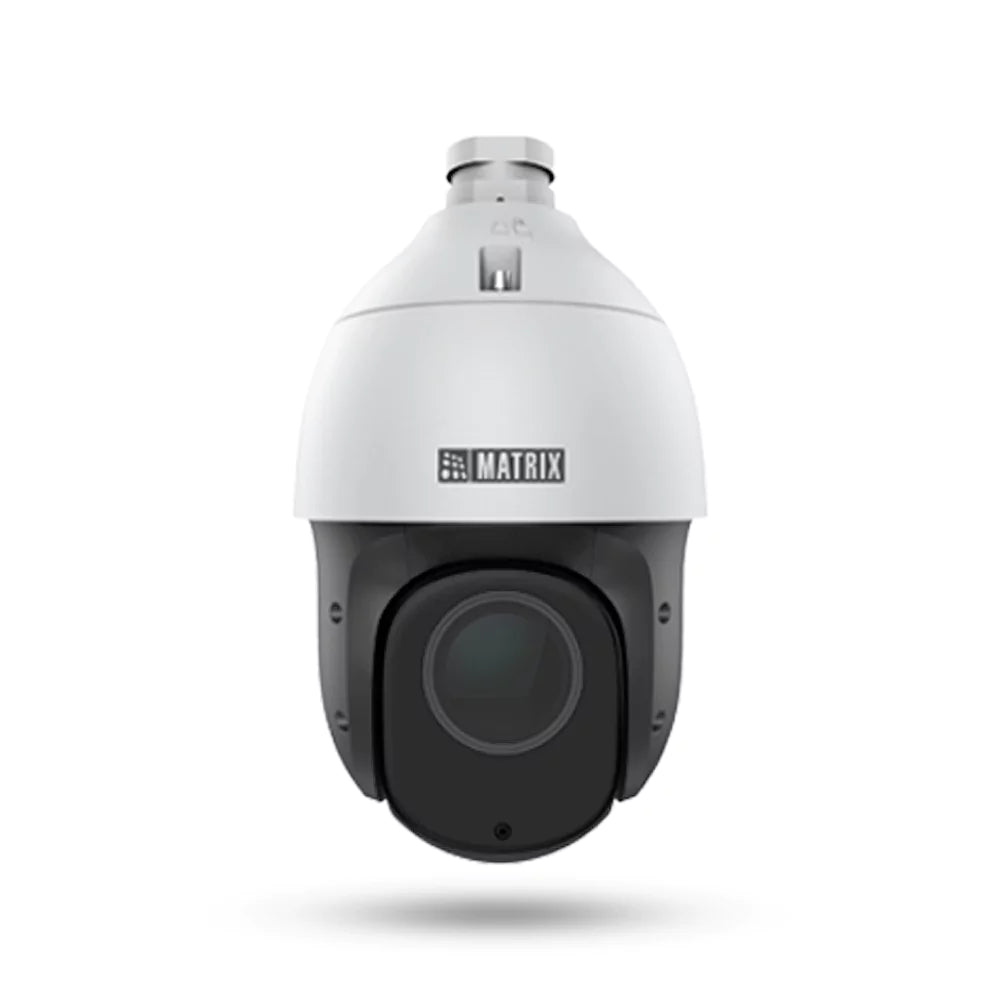

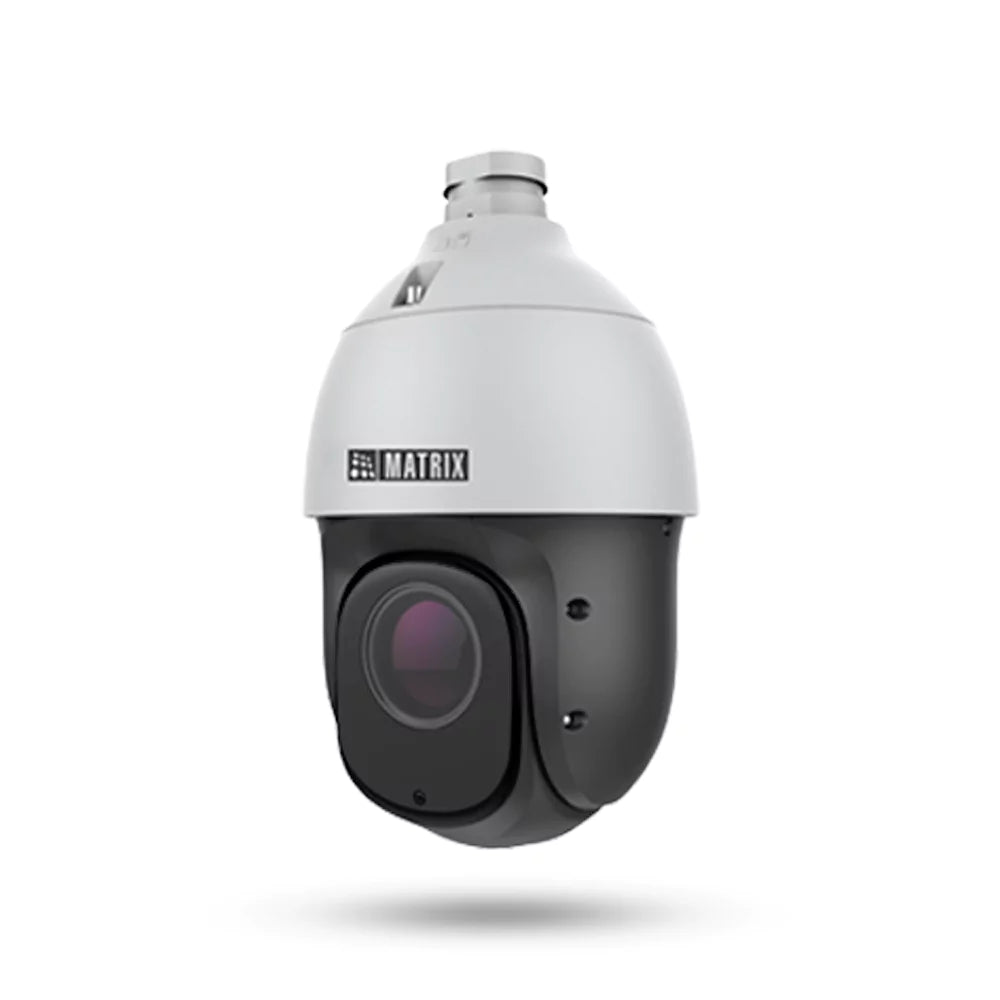

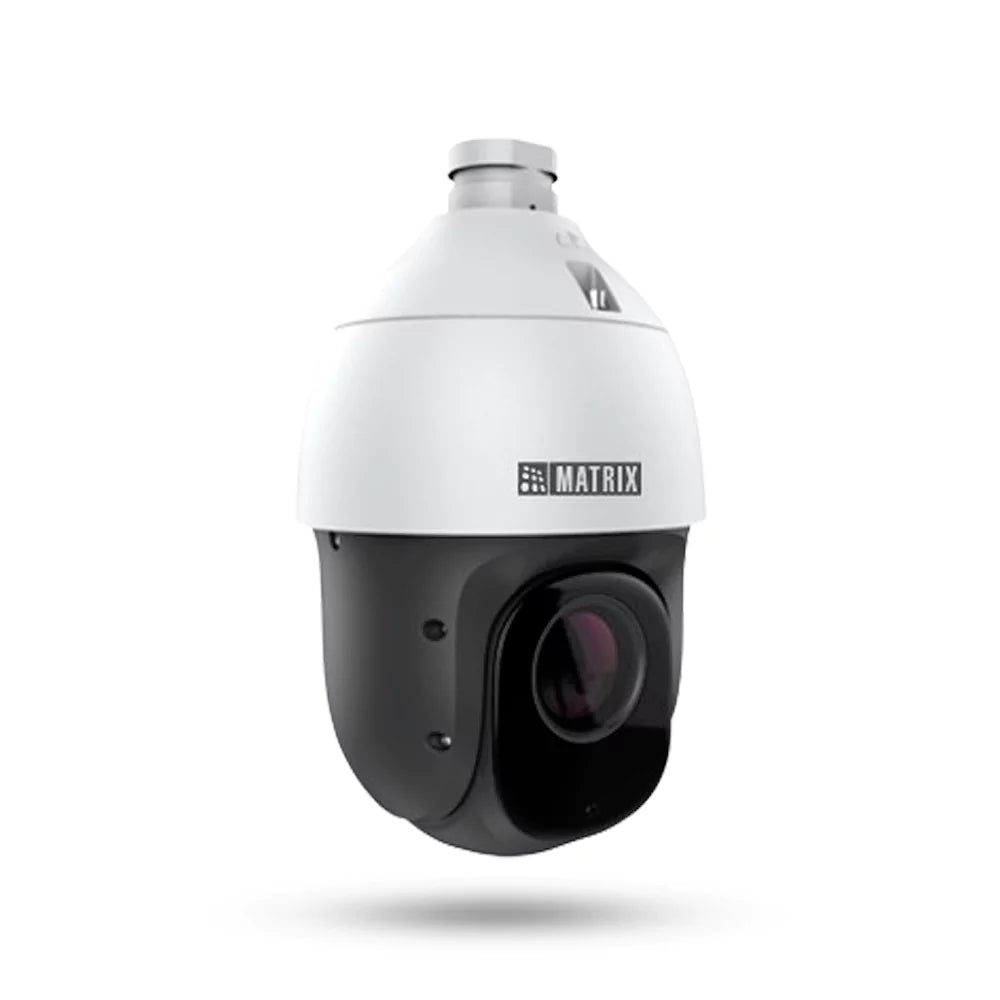

Matrix Satatya PTZ2040P 2MP IR Dome PTZ with 38X Zoom
Matrix Satatya PTZ2040P 2MP IR Dome PTZ with 38X Zoom
Couldn't load pickup availability
Matrix Satatya PTZ2040P 2MP IR Dome PTZ with 38X Zoom
Experience next-level surveillance with the Matrix Satatya PTZ2040P, a powerful 2MP IR dome PTZ camera engineered for precision, clarity, and wide-area monitoring. Featuring 5MP/2MP resolution with advanced audio support, this camera delivers exceptional image quality under all lighting conditions. With 38x optical zoom, 16x digital zoom, and a total zoom of 608x, you’ll capture even the finest details from a distance. Designed for industrial-grade environments, it boasts a rugged build with IP67, IK10, and NEMA 4X protection standards, making it ideal for both indoor and outdoor installations.
Features
High-Resolution Imaging Powered by a 1/2.8” CMOS sensor offering up to 5MP resolution with outstanding clarity.
Exceptional Zoom Capability 38x optical and 16x digital zoom provides 608x total zoom—ideal for long-distance surveillance.
Advanced Night Vision Equipped with 9 IR LEDs and a 300m range, this camera ensures visibility even in total darkness.
True Wide Dynamic Range With 120dB WDR, it captures clear images in challenging lighting conditions.
Rapid PTZ Functionality Full 360° pan and -15° to 90° tilt with auto-flip, adjustable at speeds up to 240°/s.
Smart Video Analytics Includes object detection, intrusion detection, loitering, motion detection, and more.
Versatile Streaming Options Supports four simultaneous video streams with flexible resolution and frame rate settings.
Audio & Alarm Integration Built-in audio input/output and alarm ports for complete security control.
Robust Build Quality IP67 weatherproof, IK10 vandal-proof, and NEMA 4X certified for maximum durability.
Onboard Storage Support Comes with a Micro SD card slot supporting up to 512GB for local storage backup.
Technical Specifications
Image Sensor 1/2.8” CMOS with superior low-light performance.
Resolution 2MP (1920×1080), 5MP (2592×1944) maximum.
Zoom 38x Optical Zoom + 16x Digital Zoom (608x Total).
Shutter Speed Adjustable between 1/15s to 1/10000s.
Minimum Illumination 0.03 Lux in color, 0 Lux with IR.
IR Range Up to 300 meters with adjustable irradiance angle.
Focal Length 4.4 mm – 169.4 mm for flexible coverage.
Pan/Tilt Range 360° pan and -15° to 90° tilt with 300 presets.
Preset Accuracy 0.16° for precise surveillance control.
Video Compression H.265, H.264, and MJPEG supported.
Audio Compression G.711 (A-law/U-law), G.726.
Network Protocols Compatible with TCP/IP, RTSP, HTTPS, IPv4/IPv6, SNMP, and more.
Power Supply 24VDC 2.5A with AC support (optional).
Operating Temperature Designed to operate in -30°C to 60°C environments.
Protection Rating IP67 weatherproof, IK10 vandal-resistant, NEMA 4X certified.
Weight and Dimensions 5.1 kg; Φ206.6mm x 329mm (Diameter x Height).
Why Choose Matrix Satatya PTZ2040P 2MP IR Dome PTZ Camera?
When security is non-negotiable, the Matrix Satatya PTZ2040P delivers unmatched performance. With industry-leading zoom capabilities, dynamic range, and smart analytics, this camera ensures you’re always a step ahead. Whether for critical infrastructure, commercial surveillance, or outdoor perimeter monitoring, it combines intelligence, power, and resilience. Built to thrive in extreme conditions and equipped with high-end features normally reserved for premium systems, it’s the smart choice for demanding surveillance needs.
