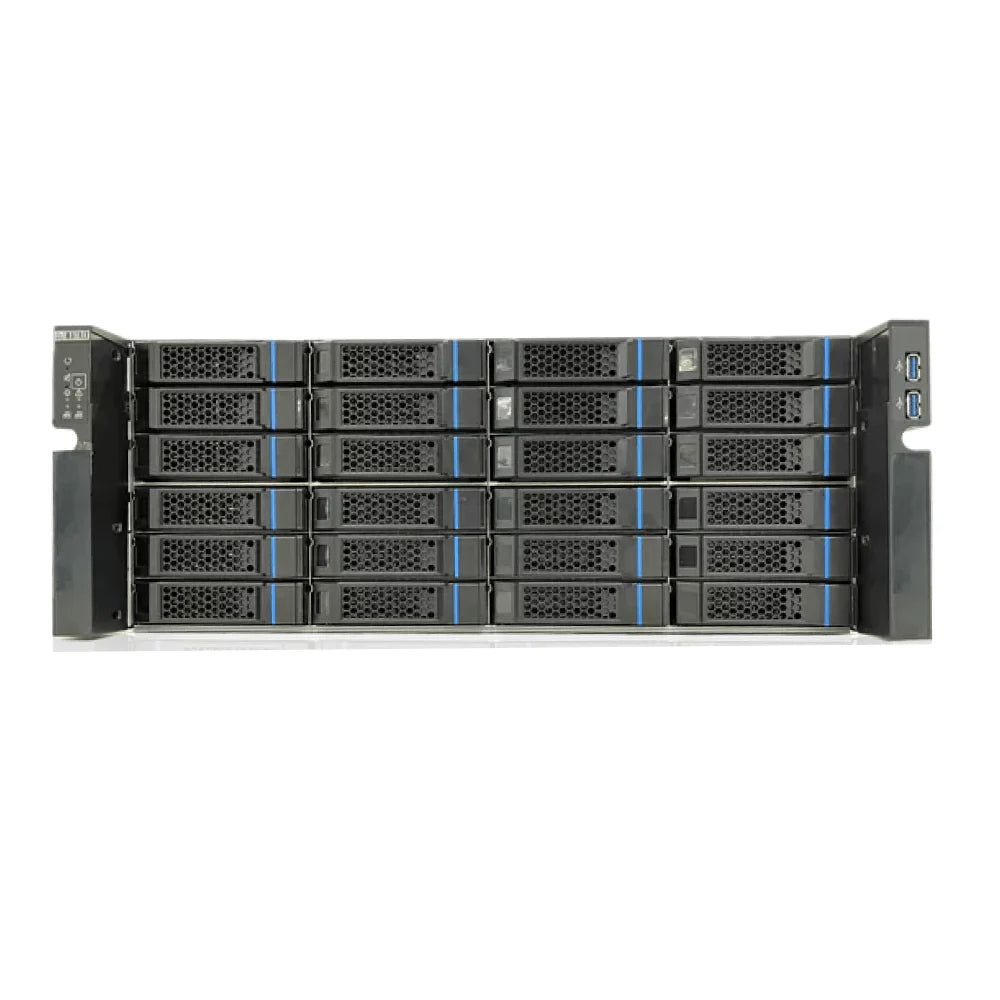

Matrix SATATYA VMSP4020XCTP Video Management System with 24 HDD Slots & Cyber Secured VMS

Matrix SATATYA VMSP4020XCTP Video Management System with 24 HDD Slots and Cyber Secured VMS

The Matrix SATATYA VMSP4020XCTP Video Management System is engineered for enterprise-level surveillance with powerful hardware and built-in security features. It comes preloaded with Windows 10 IoT Enterprise LTSC 2019 and the SATATYA SAMAS PLT license, supporting up to 255 IP cameras. With 24 hot-swap HDD bays, a 16-core Xeon processor, 64GB RAM, and a GTX1650 GPU, it ensures smooth video processing, high reliability, and secure data handling in demanding environments.

Features

3rd Gen 16-core Xeon processor with 64GB RAM for high-performance operation
Preloaded with Windows 10 IoT Enterprise LTSC 2019 and expandable SATATYA SAMAS PLT license
24 hot-swap 3.5"/2.5" SATA HDD/SSD bays (up to 18TB per slot, HDDs not included)
Dual input hot-swap 1200W (1+1) redundant power supply for system stability
2x 10GbE and 2x 1GbE LAN ports with 512Mbps uplink and downlink throughput
Supports Onvif and major camera brands up to 12MP resolution
Decoding support for 1x 4K, 4x 1080P, 9x 720P, or 16x D1 streams
Video compression formats include H.265, H.264, and MJPEG
GPU GTX1650 and hardware RAID controller for fast processing and data protection
Multiple display outputs: HDMI, VGA, DP, and DVI-D
Expandable camera support up to 255 IPC

Technical Specifications

Processor: 3rd Gen Xeon 16-Core
RAM: 64GB
Storage Bays: 24x 3.5"/2.5" SATA (18TB max each, HDD not included)
OS: Windows 10 IoT Enterprise LTSC 2019
VMS License: SATATYA SAMAS PLT (Expandable)
Network Ports: 2x 10GbE, 2x 1GbE
Video Input: Supports up to 12MP resolution
Decoding: 1 x 4K / 4 x 1080P / 9 x 720P / 16 x D1
Video Compression: H.265, H.264, MJPEG
GPU: GTX1650
RAID: Hardware RAID controller included
Display Outputs: 1x HDMI, 1x VGA, 1x DP, 1x DVI-D
Power Supply: Dual 1200W (1+1) Redundant
Throughput: Uplink - 512Mbps / Downlink - 512Mbps
Scalability: Supports up to 255 IP cameras
Camera Support: Onvif and major brands

Why Choose Matrix SATATYA VMSP4020XCTP Video Management System?

With massive storage capacity, advanced security, and smart camera integration, this Matrix VMS platform is ideal for high-security installations. It delivers seamless performance, efficient storage, and reliable monitoring, making it the top choice for enterprises needing 24x7 surveillance.
