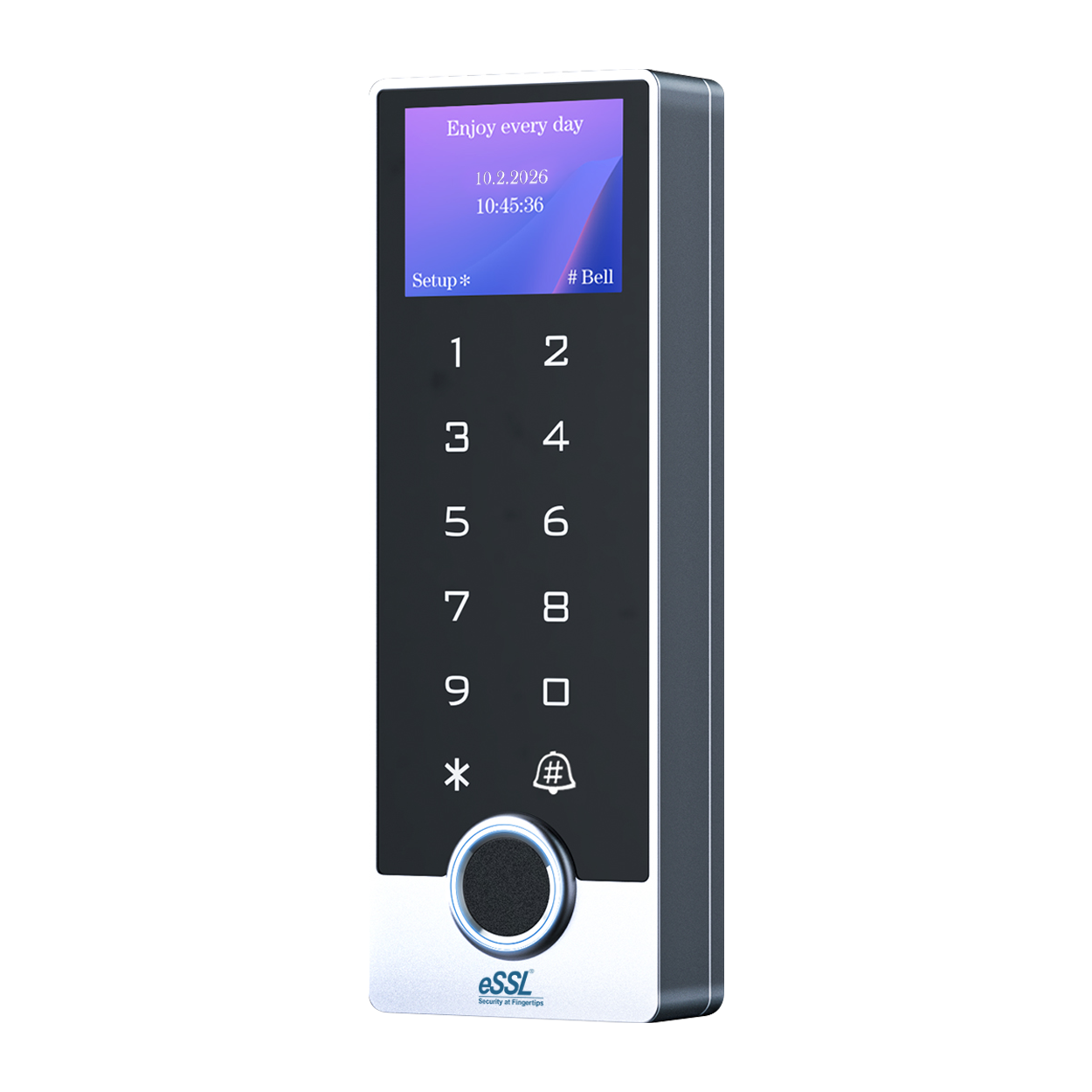

Mobile Access Control App eSSL JS-37E

Rs. 3,770.00

~~Rs. 4,901.00~~ Rs. 3,770.00

Sale Sold out

Mobile App Access Reader

JS-37E

Metal Body · Fingerprint · Touch Keypad · IP66

When the door is outside and the weather isn't cooperative — metal housing, IP66 sealing, fingerprint, and full app control in one compact reader.

✓ IP66 Outdoor Metal Housing

Fingerprint Sensor Touch Keypad Tuya App

Some access readers are built for a lobby desk. The JS-37E is built for a gate post. Its all-metal case is designed to take knocks, its IP66 rating means rain and dust aren't a problem, and its semiconductor fingerprint sensor still reads reliably in bright sunlight or damp conditions. Install it on an exterior wall, a parking barrier column, or a factory entrance and it'll just get on with the job — quietly handling fingerprints, cards, PINs, and remote unlocks via the Tuya app without needing any babysitting. The LCD screen and voice broadcast mean users always get clear feedback even in noisy outdoor environments. It stores up to 2,000 card and code users and 200 fingerprints, which covers most mid-sized sites comfortably. If you need more than that, the JS-36E scales further — but if you need something genuinely tough for outdoors, the JS-37E is the one to pick.

Built for outdoors, not just rated for it. The JS-37E goes beyond the IP65 of the JS-36E with a full IP66 seal and a proper metal case — not just a plastic shell with a gasket. That combination makes it the right choice for gates, parking areas, construction sites, and anywhere exposed to weather, dust, or physical abuse.

2000

Card/PIN Users

200

Fingerprints

IP66

Protection

−40°

Min Temp

4 Ways to Get In

Fingerprint

Semiconductor sensor, 200 prints stored on-device.

EM Card

Standard 125 KHz tap-to-open. Fast and reliable.

PIN Code

Handy backup — works with gloves on too.

Mobile App

Unlock from anywhere via Tuya. Full remote management.

3 Working Modes — One Device

Mode 01

Standalone Access Control

The reader manages authentication and triggers the lock directly — no external panel or network required. The simplest way to secure a single door or gate.

Mode 02

Pure Reader Mode

Sends credentials over Wiegand 26 to an existing access controller. Drop this in as a tougher, smarter reader in front of whatever panel you already have installed.

Mode 03

Relay Toggle Mode

Latches the relay open or closed on each valid credential — the right choice for boom barriers, sliding gates, and shutters that need to stay put between triggers.

What It Does Well

All-Metal Case

Not plastic with a metal finish — an actual metal housing that resists dents, drill attacks, and years of outdoor use without cracking or warping.

IP66 — Truly Weatherproof

Completely sealed against dust and high-pressure water jets. Rated for −40°C to 60°C, so it handles Indian summers and cold northern winters equally well.

LCD Screen

Shows time, date, and access status clearly. Particularly useful outdoors where ambiguous beeps don't tell the user what went wrong.

Voice Broadcast

Announces access results out loud — adjustable volume and multiple language options. Cuts through ambient noise at busy entry points like loading bays and car parks.

Temporary Codes

Set a time-limited PIN for a contractor or visitor via the app. It stops working automatically — no call needed to revoke it.

Data Backup

Enrolled users can be backed up so a hardware replacement doesn't mean starting the entire enrolment process from scratch.

Technical Specifications

Electrical▾

Working Voltage

DC 12 – 24V

Operating Current

≤ 100 mA

Idle Current

≤ 35 mA

Lock Output Load

≤ 1 A

Short-Circuit Protect

≤ 100 μs

Reader & Credentials▾

Card Type

EM (125 KHz)

Reading Range

2 – 6 cm

Fingerprint Sensor

Semiconductor (capacitive)

Fingerprint Capacity

200

Card / Code Users

2,000

Wiegand Interface

Wg26 Input / Output

Physical & Environmental▾

Housing Material

Metal

Keypad

Touch

Display

LCD screen

Ingress Protection

IP66 (Dustproof & High-Pressure Water-Jet Resistant)

Operating Temperature

−40°C to 60°C

Operating Humidity

0 % – 95 % RH

App & Access Features▾

Access Modes

Fingerprint, EM Card, PIN Code, Mobile App

Working Modes

Standalone access control / Pure reader (Wg26) / Relay toggle

App Platform

Tuya Smart (iOS & Android)

Remote Unlock

Yes — via internet from anywhere

Temporary Codes

Yes — set validity period via app

Visitor Records

Yes — viewable in Tuya app

User Management

Admin card or mobile app

Voice Broadcast

Yes — adjustable volume, multi-language

Data Backup

Yes

Where It Works Best

Parking Gates & Barriers

Relay toggle mode keeps barriers open when needed. IP66 and metal housing handle rain, vehicle exhaust, and the occasional bump without complaint.

Factory & Warehouse Entrances

Workers in gloves can use PIN; others use fingerprint. Voice broadcast cuts through machinery noise. The metal case handles industrial dust and hose-down cleaning.

Residential Society Gates

Residents get cards or fingerprints; the guard can grant remote access from the booth. Temporary codes handle deliveries without anyone needing to walk to the gate.

Construction Sites

Robust enough to survive a site environment. Enrol workers' fingerprints on day one, issue temporary codes to subcontractors, and track every entry in the app.

Schools & Campuses

Outdoor gates and sports facility entries benefit from the weatherproof build. Multiple language voice prompts work well in diverse student populations.

Existing Wiegand Systems

Pure reader mode over Wiegand 26 makes this a direct upgrade for any outdoor reader position in your existing access control infrastructure.
