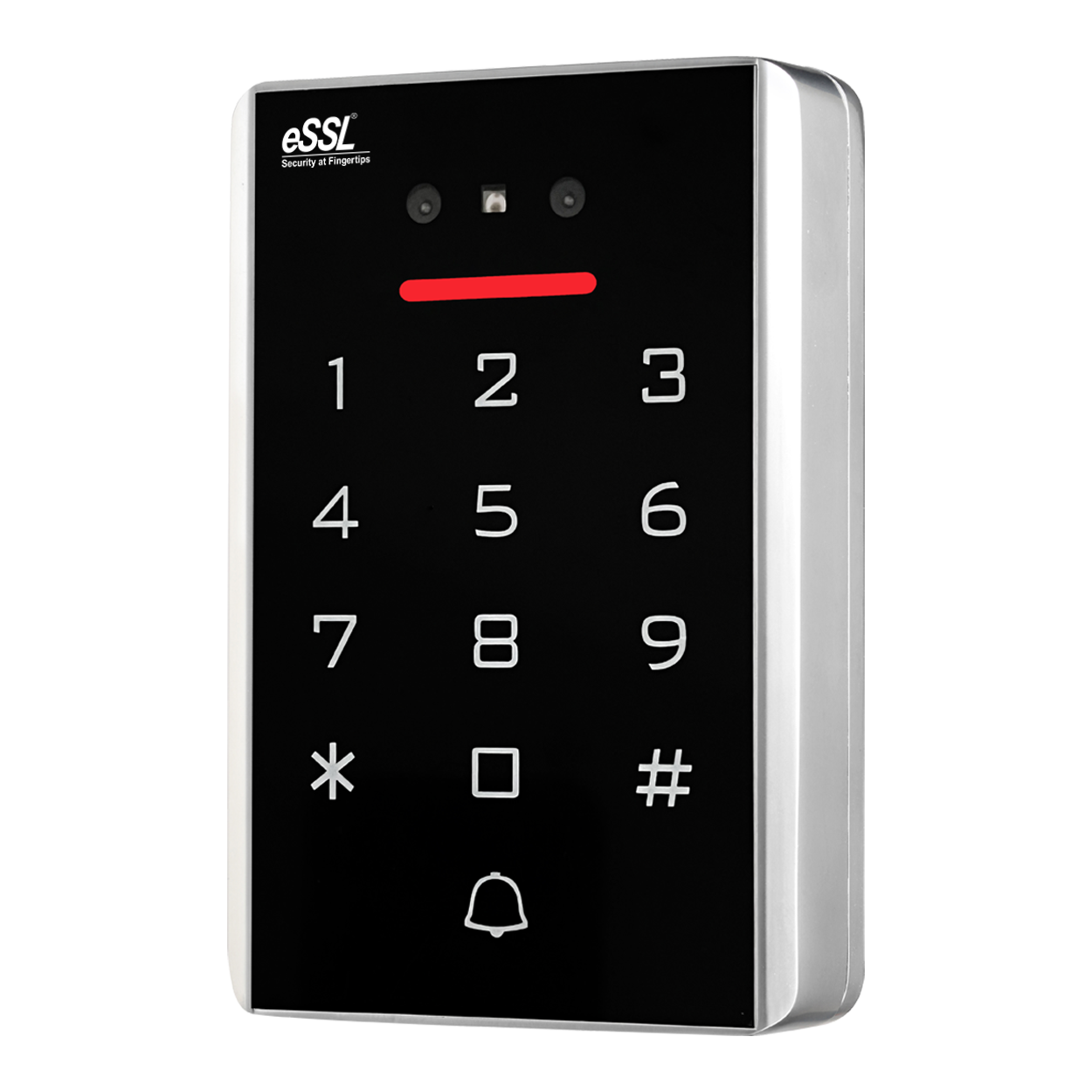

Mobile App Access Control System eSSL JS-39E

Mobile App Access Control System eSSL JS-39E

Regular price Rs. 3,200.00
Regular price Sale price Rs. 3,200.00
Sale Sold out
Quantity
Mobile App Access Reader — Flagship
JS-39E
3D Facial Recognition · Metal Anti-Vandal · Tuya Wi-Fi
Walk up, get recognised, door opens. The JS-39E brings genuine face recognition at 1 metre into a compact metal reader with card, PIN, and full app control as backup.
✓ 3D Face Recognition 1m Range
Metal Anti-Vandal Tuya Wi-Fi WG26 / WG34
Of all the readers in this range, the JS-39E is the one people stop and notice. Not because it looks different — it's still a compact metal unit with a touch keypad — but because users walk up and the door simply opens. No card tap, no PIN, no fumbling. The 3D facial recognition engine identifies registered faces from up to a metre away, which means access happens before someone has even reached out to touch anything. That matters in hospitals, clinics, and food handling areas where hygiene counts. It matters in fast-moving lobbies where queues build up at slow readers. And it matters for senior staff or executives who simply shouldn't have to fish for a card every time they pass through a door. When face recognition isn't appropriate — visitors, contractors, someone new — the card reader and touch keypad are right there as fallbacks. Tuya Wi-Fi is listed as optional on this model, so confirm with us at order if you need remote management. The hardware is built for it and the Tuya functions are the same as the rest of the JS range: remote unlock, visitor logs, temporary codes, and full user management from your phone.
Top of the JS Series
The JS-39E is the most capable reader in the eSSL mobile app range. It adds 3D facial recognition and an external doorbell connection on top of everything the JS-37E already offers — metal case, anti-vandal build, illuminated touch keypad, WG26/34 output, Tuya app support, and flexible working modes. If you need the best, this is it.
100
Face Templates
2000
Card/PIN Users
1m
Face Range
99s
Max Door Time
4 Ways to Get In
Face Recognition
3D scan from up to 1 metre. Hands-free, touchless, instant.
EM Card
Standard 125 KHz tap-to-open for card-carrying users.
PIN Code
Illuminated touch keypad. Works even when gloved or in low light.
Card + PIN
Two-factor mode for high-security areas that need both credentials.
Face Recognition — How It Works
Recognition Distance
Up to 1m
The reader identifies registered faces from up to one metre away — so the door can be unlocked before the user even extends their hand. In busy corridors and entrances this makes a real difference to flow.
Technology
3D Scan
3D facial recognition is significantly harder to spoof than 2D camera-based systems. A flat photograph or phone screen won't fool it — it reads the actual depth and geometry of a face.
Capacity
100 Faces
Stores 100 face templates locally on the device. Suited to dedicated access points — a VIP entrance, a boardroom, a medical dispensary — where a defined group of people need frictionless access.
What Makes It Stand Out
Metal Anti-Vandal Case
A solid metal housing that resists drilling, prying, and impact. Not cosmetic metal — structural. Built to stay functional even if someone tries to force it off the wall.
Illuminated Touch Keypad
Backlit digit keys that are easy to use in low-light conditions — underground car parks, stairwells, and dimly lit corridors where standard keypads become frustrating at night.
External Doorbell Support
A dedicated doorbell connection lets you wire an external bell or buzzer to the unit — visitors press it to announce themselves, and whoever is inside can then remotely unlock via the app.
WG26 / WG34 Output
User-selectable Wiegand output in reader mode. Works with virtually any existing access controller — so you get face recognition capability without replacing your backend panel.
0–99s Adjustable Relay
Fine-tune the door open duration to match your specific lock — a quick 2-second release for a strike plate, or a longer hold for a motorised gate that needs time to swing clear.
Tuya Wi-Fi (Optional)
When the Tuya module is included, you get remote unlock, visitor records, temporary codes, and full user management via the Tuya Smart app — same as the rest of the JS range.
Tuya Wi-Fi is listed as optional on the JS-39E. This means the unit can be ordered with or without the Wi-Fi module. If you need remote unlock, visitor logs, temporary codes, and phone-based user management, please confirm the Tuya option at the time of ordering. The face recognition and all standalone access control features work regardless of whether Wi-Fi is included.
Technical Specifications
Electrical
Working Voltage
DC 12V (24V customisable)
Static Current
≤ 30 mA
Electric Lock Output
≤ 1 A
Short-Circuit Protect
≤ 100 μs
Door Opening Time
0 – 99 s (adjustable)
Face Recognition
Technology
3D Facial Recognition
Recognition Distance
Up to 1 m
Face Template Capacity
100
Card Reader & Credentials
Card Type
EM (125 KHz)
Card Reading Range
2 – 5 cm
Card / Code Users
2,000
Access Modes
Face, Card, PIN, Card + PIN
Wiegand Output
WG26 / WG34 (user-selectable in reader mode)
Physical & Environmental
Housing
Metal, anti-vandal
Keypad
Digital illuminated touch
External Doorbell
Yes — supports wired external bell/buzzer
Ambient Temperature
−45°C to 60°C
Humidity
10 % – 90 % RH
App & Remote Features (Tuya — Optional)
Connectivity
Tuya Wi-Fi (optional — confirm at order)
App Platform
Tuya Smart (iOS & Android)
Remote Unlock
Yes — via internet from anywhere
Temporary Codes
Yes — set validity period via app
Visitor Records
Yes — viewable in Tuya app
User Management
Mobile app (when Tuya module present)
Where It Works Best
Hospitals & Clinics
Hands-free recognition is the right call in medical environments where touching a shared surface is exactly what you want to avoid. Staff walk past and doors open — no gloves off required.
Corporate Reception & VIP Areas
Senior staff, executives, and board members get the frictionless experience the role demands. No fumbling for a card when your hands are full of a laptop bag and a coffee.
Food Production & Pharma
Hygiene-controlled zones where touching surfaces is regulated. Face recognition means authorised staff enter cleanrooms and production floors without breaking protocol.
High-Traffic Lobbies
When dozens of people arrive at 9am, a 1-metre recognition range keeps the queue moving. Card readers create bottlenecks; face recognition doesn't.
Residential Buildings with Doorbell
Residents get face recognition access. Visitors press the wired doorbell, the resident gets a notification and unlocks remotely via Tuya — a complete visitor management setup in one unit.
Upgrading Existing Wiegand Systems
WG26/WG34 reader mode means you can add face recognition capability to your existing access panel without touching the infrastructure — just swap out the reader head.
