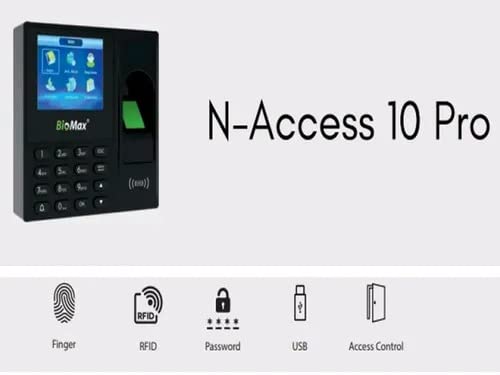

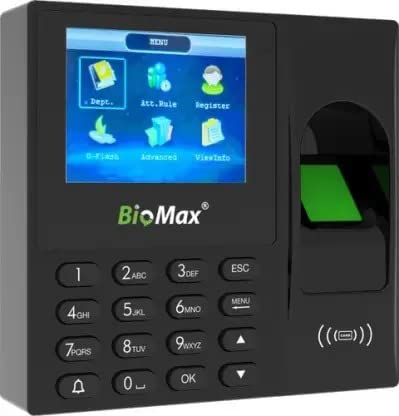

Biomax N-Access10 Pro Fingerprint Door Access Controller – Fingerprint, RFID Card, Password, Inbuilt Bell
Biomax N-Access10 Pro Fingerprint Door Access Controller – Fingerprint, RFID Card, Password, Inbuilt Bell
Couldn't load pickup availability
One touch opens the door.
2.4" TFT colour LCD
Installed and configured by AmpleTrails anywhere in India.
The Biomax N-Access10 Pro is a compact standalone fingerprint, RFID card and password door access controller with a relay for electromagnetic, bolt or strike locks.
Key specifications
| Fingerprint capacity | 3,000 (spec table) |
| Card capacity | 1,000 |
| Password capacity | 1,000 |
| Display | 2.4" TFT colour LCD |
| Lock output | Relay for EM, bolt or strike lock |
| Bell | Inbuilt |
| Power | 12V DC / 2A |
| Operating temperature | 0°C to 45°C |
| Dimensions | 100.24 x 105.2 x 29.4 mm |
Who should purchase it?
Offices, cabins, server rooms and store rooms that need secure single-door entry.
How many users can it support?
The Biomax specification table lists 3,000 fingerprints, 1,000 cards and 1,000 passwords; our team confirms the current figure for your unit on the quotation.
Which biometric methods does it support?
Fingerprint, RFID card and password, with dual modes such as fingerprint + card and fingerprint + password.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
Connectivity for this model is confirmed on your quotation – our team will share the current manufacturer details.
Does it support an attendance application?
Attendance application support for this model is confirmed on your quotation – our team will share the current manufacturer details.
Which software is compatible?
Compatible software for this model is confirmed on your quotation – our team will share the current manufacturer details.
Does it support access control?
Yes. A relay drives an electromagnetic lock, bolt lock or strike lock, with a push button on the inner side to open the door, plus an inbuilt bell.
What are the installation requirements?
Door-side mounting with a 12V DC / 2A supply and a compatible lock. Operating temperature 0°C to 45°C; size 100.24 x 105.2 x 29.4 mm. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the Biomax manufacturer warranty through AmpleTrails, an authorised Biomax partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.
What alternatives are available?
- Biomax N-BioAccess – networked access terminal with Wi-Fi, RS485 and 10,000 users
- Biomax FLG 22 – fingerprint lock built for glass doors
- Biomax N-K30 Pro – adds LAN attendance with a door relay
- Browse all biometric attendance machines or the full Biomax range.
Buy from an authorised Biomax partner
AmpleTrails is an authorised Biomax partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
