Biomax N-BM20+ID Pro
Biomax N-BM20+ID Pro
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details

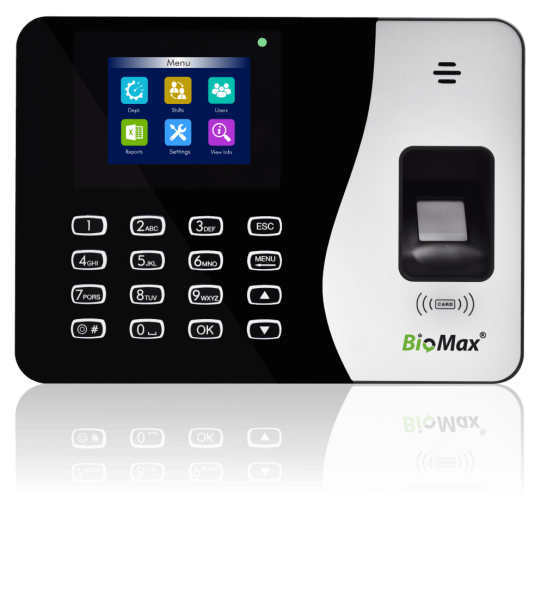

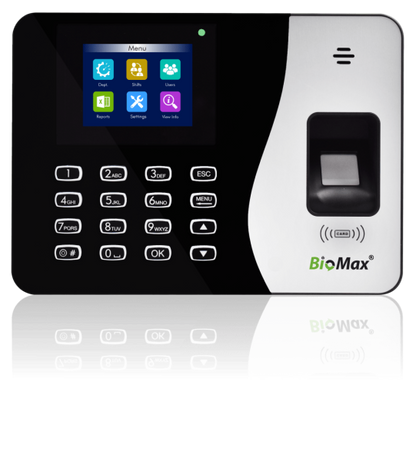

BioMax N-BM20+ID Pro Fingerprint Time Attendance System
The BioMax N-BM20+ID Pro is a compact and budget-friendly biometric time attendance system designed for small and medium workforce management applications. It combines fingerprint recognition, RFID card verification, and PIN authentication to provide flexible attendance solutions for offices, shops, factories, and small organizations.
Powered by a high-performance CPU and Linux operating system, the N-BM20+ID Pro delivers fast verification, reliable attendance processing, and convenient data management through TCP/IP LAN connectivity and USB Host support. Its built-in battery backup ensures continued operation during power interruptions.
The device is designed to handle different fingerprint conditions, including rough, dry, colored, inked, or mehndi-applied fingers, making it suitable for diverse workplace environments.
Key Features
Fingerprint & RFID Verification
Supports fingerprint, RFID card, and PIN authentication modes for flexible employee attendance management.
Large User Capacity
Stores up to 1,000 fingerprint users, 1,000 cards, and 1,000 passwords for efficient workforce management.
Fast Biometric Performance
Equipped with a 500 DPI fingerprint sensor for accurate and quick user identification.
LAN & USB Connectivity
Supports TCP/IP network communication and USB Host for attendance data transfer and report generation.
Push Data Technology
Allows centralized attendance monitoring by transferring data between branches and head office systems.
Built-in Battery Backup
Provides continuous operation support during temporary power failures.
Color TFT Display
Features a 2.4-inch TFT LCD color screen with voice guidance for easy operation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Model | N-BM20+ID Pro |
| Product Type | Fingerprint Time Attendance System |
| Fingerprint Capacity | 1,000 Fingerprints |
| Card Capacity | 1,000 RFID Cards |
| Password Capacity | 1,000 Passwords |
| Maximum Users | 1,000 Users |
| Log Capacity | 1,50,000 Attendance Records |
| Identification Mode | Fingerprint, Card, PIN |
| Sensor Type | 500 DPI Fingerprint Sensor |
| FAR | 0.00001% |
| FRR | 0.001% |
| Communication | TCP/IP, USB Host |
| Push Data | Yes |
| Operating System | Linux |
| Display | 2.4" TFT LCD Color Screen (320 × 240 Pixels) |
| Voice Instruction | 16-bit Hi-Fi Voice & Sound Indication |
| Language | English |
| Battery Backup | Built-in Battery |
| Operating Temperature | 0°C to 50°C |
| Power Supply | DC 5V / 2A |
| Dimensions | 180 × 130 × 35 mm |
Applications
- Small and Medium Offices
- Retail Shops
- Factories and Workshops
- Educational Institutions
- Corporate Branch Offices
- Small Workforce Attendance Management
- Employee Time Tracking Systems
Why Choose BioMax N-BM20+ID Pro?
The BioMax N-BM20+ID Pro provides an economical yet powerful attendance management solution with biometric accuracy, RFID flexibility, network connectivity, and reliable data storage. Its compact design, battery backup, and easy reporting features make it an ideal choice for organizations requiring efficient attendance control within a limited budget.
