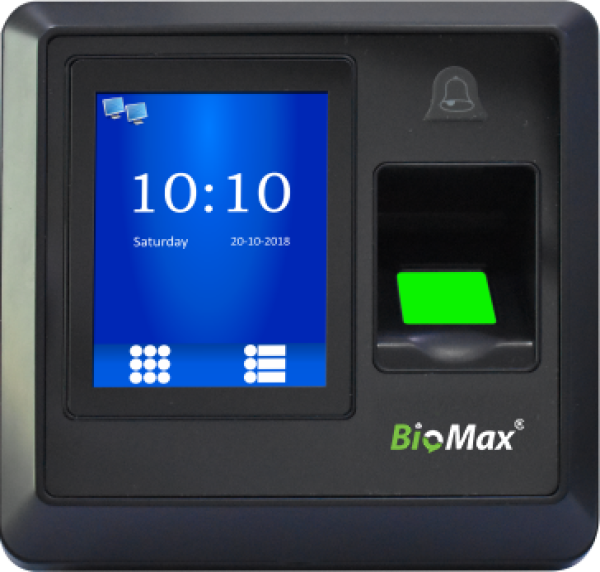

BioMax N-BM300 W Fingerprint Biometric Attendance Machine
BioMax N-BM300 W Fingerprint Biometric Attendance Machine
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details
BioMax N-BM300 W Fingerprint Time Attendance & Access Control System
The BioMax N-BM300 W is a compact fingerprint time attendance and access control system designed for organizations that require powerful performance in a space-saving design. Featuring a 2.8-inch TFT colour display, built-in Wi-Fi, TCP/IP, and USB connectivity, Linux operating system, and advanced fingerprint sensor, the N-BM300 W delivers fast and accurate attendance management while providing complete access control functionality. Its elegant vertical design allows installation in offices, factories, buses, forklifts, warehouses, and other locations where installation space is limited.
Key Features
- Fingerprint Time Attendance & Access Control System
- Elegant vertical compact design
- 2.8-inch TFT colour screen
- Built-in Wi-Fi connectivity
- TCP/IP LAN communication
- USB Host & Slave support
- Stores up to 3,000 fingerprints
- Supports up to 3,000 RFID cards
- Password authentication support
- 150,000 transaction log capacity
- Linux operating system for stable performance
- 500 DPI optical fingerprint sensor
- Supports Fingerprint, Card and PIN verification
- Push Data support (Optional)
- Dual relay output for access control
- Wiegand Input/Output support
- 255 Time Zones
- Multi-identification verification mode
- Duress Mode
- Anti-passback support
- Supports Exit Switch, Wiegand Reader and No Touch Sensor
- Recognizes dry, rough, inked and mehndi fingerprints accurately
Why Choose BioMax N-BM300 W?
The BioMax N-BM300 W combines powerful attendance management and professional access control in an elegant compact device. With built-in Wi-Fi, TCP/IP, USB communication, Linux OS, advanced fingerprint recognition, and enterprise-grade access control functions, it is an excellent solution for organizations looking for reliable security and attendance management without occupying much installation space.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | BioMax N-BM300 W |
| Product Type | Fingerprint Time Attendance & Access Control System |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Password Capacity | 3,000 |
| Log Capacity | 150,000 Records |
| Display | 2.8" TFT Colour Screen |
| Voice Instruction | 16-bit Hi-Fi Voice & Sound Indication |
| Language | English |
| Communication | Wi-Fi, TCP/IP, USB (Host & Slave) |
| Push Data | Yes (Optional) |
| Sensor Type | 500 DPI |
| Operating System | Linux |
| Identification Mode | Fingerprint, Card, PIN |
| False Acceptance Rate (FAR) | 0.00001% |
| False Rejection Rate (FRR) | 0.001% |
| Wiegand | Input / Output |
| Relay Output | 2 Relay |
| Standard Access Control Functions | 255 Time Zones, Multi-identification, Duress Mode, Anti-passback |
| Operating Temperature | 0°C ~ 50°C |
| Power Supply | 12V DC / 2A |
| Dimensions (L × H × W) | 150 × 150 × 35 mm |
Applications
- Corporate Offices
- Factories and Manufacturing Units
- Warehouses and Logistics Centers
- Retail Stores
- Schools and Educational Institutions
- Hospitals and Clinics
- Vehicle Fleets and Buses
- Forklifts and Mobile Operations
- Commercial Buildings
- Access Control Installations
Benefits
- Compact design fits in small installation spaces
- Wireless and wired communication options
- Fast and accurate fingerprint verification
- Recognizes dry, rough, inked and mehndi fingerprints
- Large storage capacity for users and attendance records
- Professional access control with dual relay support
- Supports Anti-passback and Duress Mode
- Reliable Linux operating system for stable performance
- Easy integration with attendance and access control software
- Ideal for professional security and workforce management applications
