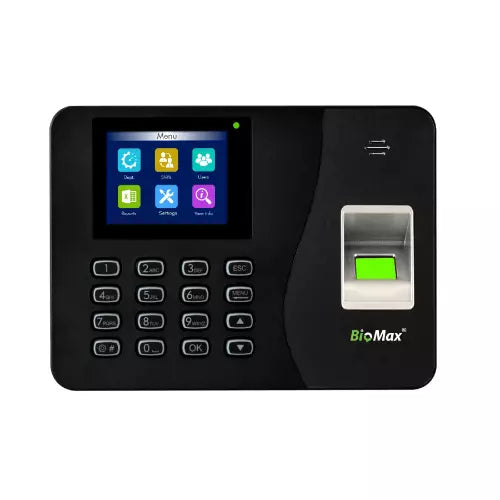

BioMax N-WL20 Fingerprint Biometric Attendance Machine
BioMax N-WL20 Fingerprint Biometric Attendance Machine
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
Product Details
BioMax N-WL20 Fingerprint Time Attendance System
The BioMax N-WL20 is an efficient fingerprint time attendance system designed to meet the essential attendance requirements of small and medium-sized organizations. Equipped with built-in Wi-Fi connectivity, USB Host support, and a high-performance fingerprint sensor, the N-WL20 eliminates the need for LAN cabling while providing accurate and reliable attendance management. Its Linux operating system, user-friendly interface, and durable construction make it an ideal solution for offices, retail stores, schools, clinics, and commercial establishments.
Key Features
- Fingerprint Time Attendance System
- Built-in Wi-Fi connectivity for wireless communication
- USB Host for offline data transfer
- Stores up to 1,000 fingerprints
- Supports up to 1,000 passwords
- Maximum user capacity of 1,000
- Transaction log capacity of 150,000 records
- 2.4-inch TFT LCD colour display (320 × 240 pixels)
- Linux operating system
- 500 DPI optical fingerprint sensor
- High-speed fingerprint verification
- Supports Push Data communication
- Desktop, Web and Cloud software compatibility
- Optional SSR support
- Accurately recognizes dry, rough and difficult fingerprints
Why Choose BioMax N-WL20?
The BioMax N-WL20 is an ideal attendance solution for organizations looking for simple installation and dependable performance. Its wireless Wi-Fi connectivity removes the need for network cabling, while the advanced fingerprint sensor delivers fast and accurate verification. With large attendance storage, Linux-based stability, and support for desktop, web, and cloud software, the N-WL20 offers an efficient and cost-effective attendance management solution.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | BioMax N-WL20 |
| Product Type | Fingerprint Time Attendance System |
| Fingerprint Capacity | 1,000 |
| Password Capacity | 1,000 |
| Maximum Users | 1,000 |
| Log Capacity | 150,000 Records |
| Display | 2.4" TFT LCD Colour Screen (320 × 240 Pixels) |
| Voice Instruction | 16-bit Hi-Fi Voice & Sound Indication |
| Language | English |
| Communication | Wi-Fi, USB Host |
| Push Data | Yes |
| Operating System | Linux |
| Sensor Type | 500 DPI |
| Identification Mode | Fingerprint, PIN |
| False Acceptance Rate (FAR) | 0.00001% |
| False Rejection Rate (FRR) | 0.001% |
| Software Compatibility | Desktop, Web, Cloud |
| SSR | Yes (Optional) |
| Operating Temperature | 0°C ~ 50°C |
| Power Supply | 5V DC / 1A |
| Dimensions (L × H × W) | 180 × 130 × 35 mm |
Applications
- Corporate Offices
- Small and Medium Businesses
- Retail Stores
- Schools and Educational Institutions
- Hospitals and Clinics
- Warehouses
- Commercial Establishments
- Service Centers
Benefits
- Wireless attendance management without LAN cabling
- Fast and accurate fingerprint verification
- Reliable recognition of dry and rough fingerprints
- Large storage capacity for users and attendance logs
- Easy data transfer through Wi-Fi or USB Host
- Compatible with Desktop, Web and Cloud software
- Stable Linux operating system for dependable performance
- Compact and durable design for daily use
- Easy installation and maintenance
- Ideal for professional attendance management applications
