BioMax N-X10 RFID Card & Password Access Control System

BioMax N-X10 RFID Card & Password Access Control System

📞 Call 9315441078 for Best Price

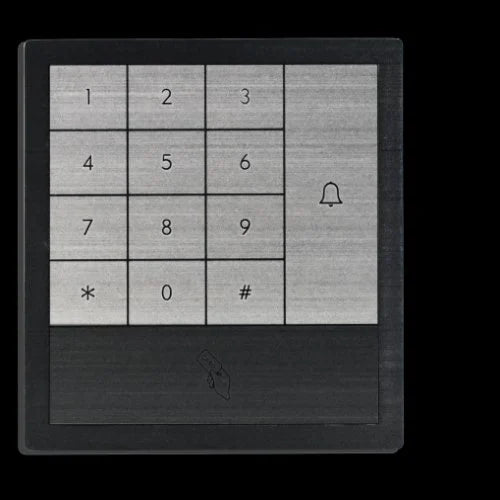

BioMax N-X10 RFID Card & Password Access Control System

The BioMax N-X10 is a compact and stylish standalone access control system designed to provide secure entry management for offices, server rooms, locker rooms, and restricted areas. Combining RFID card recognition and password authentication, the N-X10 allows authorized users to access protected environments while maintaining reliable security control.

Featuring a modern wooden finish body, illuminated T9 keypad, wired doorbell control, and Wiegand output support, the N-X10 delivers both aesthetic appeal and practical functionality. Its compact design makes it suitable for installations where space efficiency and professional appearance are important.

Key Features

RFID Card Authentication

Supports EM cards and compatible RFID cards for fast and reliable user verification.

Password Identification

Provides secure password-based access with support for multiple user passwords and virtual password functionality.

Dual Verification Modes

Allows users to access secured areas through card recognition or digital password entry according to security requirements.

Wired Doorbell Control

Integrated doorbell function allows visitors or guests to notify security staff or reception for remote door opening.

Wiegand Output Support

Supports connection with external card readers for expanded access control applications.

Compact Stylish Design

Small footprint with an attractive wooden finish body and illuminated keypad suitable for modern workspaces.

Technical Specifications

Specification Details
Brand BioMax
Model N-X10
Product Type Standalone RFID Card & Password Access Controller
RFID Card Capacity 100 Cards
Open Door Password Capacity 5 Passwords (Supports Virtual Password)
Password Length 4 Digits
Programming Password 6 Digits (Default: 123456)
Card Reading Distance 1–5 cm
Card Type EM Card / EM Compatible Card
Authentication Mode Card Recognition / Password Identification
Door Opening Mode Card or Digital Password
Lock Relay Time Adjustable 00–99 Seconds
Tamper Alarm Supported
Open Card Function Supported
Mother Card Function Supported
Doorbell Wired Doorbell Control
Wiegand Output Supported
Operating Voltage DC 12V ±10%
Operating Current 0.1A
Lock Relay Output DC 12V / 2A
Working Temperature 0°C – 45°C
Storage Temperature -20°C – 60°C
Working Humidity 40% – 90% RH
Storage Humidity 20% – 90% RH

Applications

  • Corporate Offices
  • Server Rooms
  • Locker Rooms
  • VIP Areas
  • Residential Security Doors
  • Small Commercial Facilities
  • Restricted Access Rooms
  • Reception Controlled Entrances

Why Choose BioMax N-X10?

The BioMax N-X10 provides a simple yet effective access control solution with RFID card verification, password security, doorbell integration, and external reader connectivity. Its compact design, reliable relay control, and user-friendly keypad make it an ideal choice for securing offices and controlled entry points where dependable access management is required.
