BioMax Security

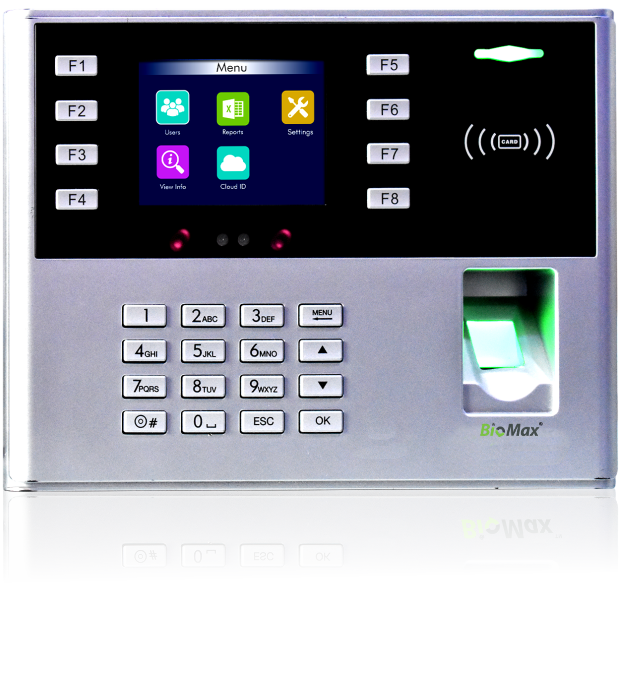

BioMax N-X990 Fingerprint Biometric Attendance Machine

📞 Call 9315441078 for Best Price

Product Details

BioMax N-X990 Fingerprint Time Attendance & Access Control System

The BioMax N-X990 is a professional-grade fingerprint time attendance and access control system designed for organizations that require high-capacity workforce management with advanced security features. Powered by a Linux operating system and high-performance CPU, the N-X990 delivers fast authentication, reliable attendance tracking, and flexible access control. Supporting fingerprint, RFID card, and PIN verification, along with Wi-Fi, TCP/IP, RS232/485, USB, and optional 4G GPRS connectivity, it is ideal for corporate offices, factories, construction sites, educational institutions, and commercial facilities.

Key Features

Fingerprint Time Attendance & Access Control System
Supports Fingerprint, RFID Card and PIN verification
Stores up to 10,000 fingerprints
Supports up to 10,000 RFID cards
Supports up to 10,000 users and passwords
150,000 transaction log capacity
3.2-inch TFT LCD colour display
Linux operating system
500 DPI advanced fingerprint sensor
TCP/IP, Wi-Fi, RS232/485, USB Host & Client communication
Push Data support
Optional 4G GPRS connectivity
Optional printer support
Optional battery backup
Function shortcut keys for quick operation
Multiple administrator support with role management
Time Zone management for employees
One-to-One verification mode for enhanced security
Work Code support
Canteen management with optional thermal printer
Supports centralized attendance management
Access Control with Anti-Passback support
Door delay timing and feedback alarm
Supports RS485 Reader, Wiegand Reader, Remote, Push Button and No Touch Exit

Why Choose BioMax N-X990?

The BioMax N-X990 is engineered for organizations that demand enterprise-level attendance management and access control. Its large storage capacity, multiple communication options, optional battery backup, centralized management capability, anti-passback functionality, and flexible authentication methods make it an ideal solution for multi-location businesses, factories, educational institutions, and high-security workplaces.

Technical Specifications

Parameter	Details
Model	BioMax N-X990
Product Type	Fingerprint Time Attendance & Access Control System
Fingerprint Capacity	10,000
Card Capacity	10,000
Password Capacity	10,000
User Capacity	10,000
Log Capacity	150,000 Records
Operating System	Linux
Communication	TCP/IP, Wi-Fi, RS232/485, USB Host & Client
Push Data	Yes
4G GPRS	Yes (Optional)
Display	3.2" TFT LCD Colour Screen
Voice Instruction	16-bit Hi-Fi Voice & Sound Indication
Language	English
Printer	Yes (Optional)
Sensor Type	500 DPI
Identification Mode	Fingerprint, Card, PIN
False Acceptance Rate (FAR)	0.00001%
False Rejection Rate (FRR)	0.001%
Wiegand	Input / Output
Relay	Yes
Access Control Support	RS485 Reader, Wiegand Reader, Remote, Push Button, No Touch
Battery Backup	Yes (Optional)
Operating Temperature	0°C ~ 50°C
Power Supply	12V DC / 2A
Dimensions (L × H × W)	215 × 160 × 45 mm

Applications

Corporate Offices
Factories and Manufacturing Units
Construction Sites
Schools and Colleges
Hospitals and Healthcare Facilities
Warehouses and Logistics Centers
Retail Stores
Commercial Buildings
Multi-Branch Organizations
High-Security Access Control Installations

Benefits

High-capacity attendance management for large organizations
Fast and accurate fingerprint recognition using 500 DPI sensor
Supports fingerprint, RFID card and PIN authentication
Flexible communication with Wi-Fi, TCP/IP, RS232/485 and USB
Optional 4G GPRS connectivity for remote installations
Supports centralized employee management across multiple locations
Advanced access control with Anti-Passback and Time Zone management
Optional battery backup for uninterrupted operation
Optional printer support for canteen management applications
Reliable Linux operating system for long-term performance
