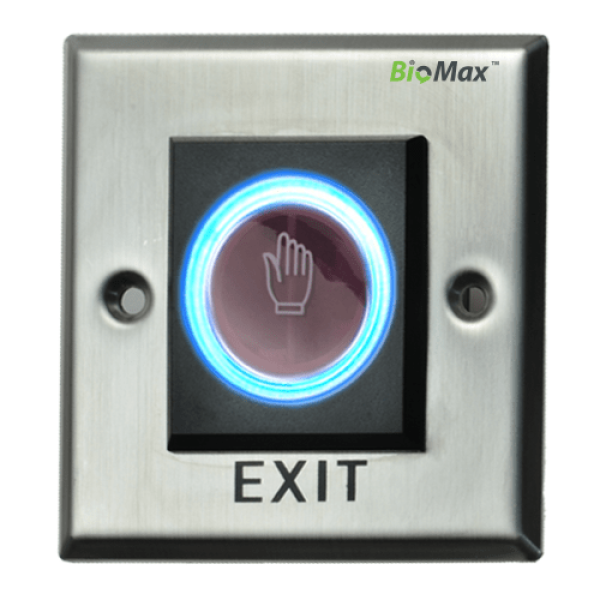

BioMax No Touch Exit Sensor
The BioMax No Touch Exit Sensor is a contactless infrared-based door release switch designed to provide hygienic and convenient access control operation. It allows users to unlock doors by simply waving a hand near the sensor, eliminating the need for physical contact with traditional exit buttons.
Designed for environments where cleanliness and infection control are important, the BioMax No Touch Exit Sensor is ideal for hospitals, laboratories, clean rooms, food processing facilities, offices, and commercial buildings. Its stainless steel faceplate, infrared detection technology, and reliable relay output provide a durable and efficient exit solution.
Key Features
Contactless Door Release
Enables users to activate door release by hand movement without touching the device, improving hygiene and convenience.
Infrared Detection Technology
Uses optical infrared sensing for accurate hand detection and reliable trigger response.
Adjustable Detection Distance
Detects hand movement up to 4 inches (10 cm) from the sensor surface for easy operation.
Dry Contact Relay Output
Provides NO, NC, and COM relay contacts for compatibility with magnetic locks, electric strikes, and access controllers.
Stainless Steel Faceplate
Features a durable brushed stainless steel front panel designed for professional and long-term installations.
IP55 Protection
Provides resistance against dust and water exposure for reliable operation in demanding environments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BioMax |
| Product Type | No Touch Infrared Exit Sensor |
| Detection Technology | Optical / Infrared Diffused Detection |
| Detection Range | Up to 4 inches (10 cm) |
| Working Voltage | DC 12V |
| Relay Contact Rating | 3A @ AC 120V / DC 30V |
| Output Contacts | Dry Contacts (NO / NC / COM) |
| Ingress Protection | IP55 Waterproof & Dust Resistant |
| Faceplate Material | Brushed Stainless Steel |
| Dimensions | 76 × 76 × 5 mm |
| Mounting Pattern | Standard 3 × 3 Inch Square Design |
| Hardware Weight | 80 grams |
| Operating Temperature | -20°C to +55°C |
Applications
- Hospitals & Healthcare Facilities
- Clean Rooms
- Food Processing Plants
- Corporate Offices
- Laboratories
- Commercial Buildings
- Industrial Facilities
- Access Controlled Exit Points
Why Choose BioMax No Touch Exit Sensor?
The BioMax No Touch Exit Sensor provides a safe, hygienic, and reliable alternative to traditional push-button exit switches. With infrared contactless detection, durable stainless steel construction, flexible relay outputs, and wide environmental tolerance, it is an excellent choice for modern access control installations requiring convenience and cleanliness.
