Matrix Comsec

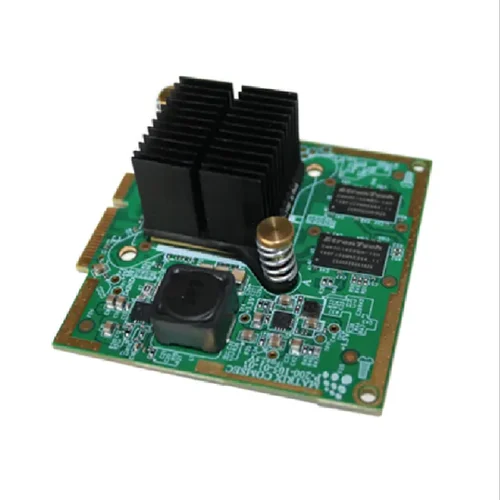

NX DBM VOCODER64

Rs. 12,003.84

~~Rs. 13,204.22~~ Rs. 12,003.84

Sale Sold out

Features of NX DBM VOCODER64

Daughter-board Module (Hardware) for SPARK200

Channel Capacity	Supports maximum 64 simultaneous vocoding channels
Module Support	Maximum 4 modules on SPARK200 platform
Total Capacity	Up to 248 vocoder channels (platform dependent)

⬇ Download PDF

OPEN SERVER BASED PBX

ANANT UNIFIED COMMUNICATION SOFTWARE is a hardware-independent, open server-based PBX solution designed to improve scalability, flexibility, and communication efficiency. It connects users across multiple devices and locations with enterprise-grade UC features.

PRODUCT HIGHLIGHTS

5000 IP Users
1024 Concurrent Calls
512 Three-party Conferences
64 Simultaneous Call Recordings
Hardware independence
Active-standby redundancy
Mobility support
Auto-attendant and voicemail
Unified messaging and integration support

KEY FEATURES

LDAP client support
Auto sign-in for softphone
Least cost routing
Hotline and room monitoring
VoIP gateway integration
Scheduled backup and auto sync configuration

TECHNICAL SPECIFICATIONS

SIP Extensions	5000
SIP Trunks	99
Maximum Transcoding Audio Calls (a-Law/u-Law)	Based on resources (Max: 1024)
Maximum Transcoding Audio Calls (G.729)	Based on resources (Max: 1024)
Maximum DRTP/RTP Relay Audio Calls	1024
Maximum DRTP/RTP Relay Video Calls	102
Maximum Voicemail Channels	64
Maximum Conference Participants (System wide)	1536
Maximum 3-Party Conference	512
Maximum Participants in a Single Multi-Party or Dial-In Conference	64
Maximum Call Tapping or Recordings	64
Audio Codecs	G.729, G.711 (A-law, μ-law), G.722, iLBC (30 ms, 20 ms)
Supported IETF RFCs	3261, 3262, 3389, 3550, 3551, 3311, 3265, 4733, 2915, 2916, 2327, 2833, 2806, 768, 793, 1034
Network Protocols	IPv6, IPv4, TCP, UDP, SNTP, ARP, ICMP, PPP, DNS, SMTP, STUN
VoIP Quality of Service	Support of Layer 2/3 CoS/QoS for SIP and Layer 3 QoS for RTP
Security	SRTP/TLS over SIP, MD5 authentication for SIP, AES128 encrypted passwords
Configuration	Web-based intuitive GUI (Jeeves)

SERVER SPECIFICATIONS

Server Model	Any
Processor Model	Intel Xeon E-2134 or above
CPU Speed	3.5 GHz or above
CPU Core/Thread	4 / 8
Max Turbo Frequency	4.5 GHz or above
Cache	8 MB Smart Cache
RAM	8 GB DDR4 ECC
Hard Disk	1 TB (1 HDD) – Without RAID 1 TB (2 HDDs) – RAID 1 Support 1 TB (3 HDDs) – RAID 5 Support
Form Factor	1U Rack
RAID Controller (Optional)	H330 RAID Controller
