Panasonic Video Door Phone VL-SA611SX VDP

Rs. 12,899.00

~~Rs. 16,696.00~~ Rs. 12,899.00

Sale Sold out

Panasonic Video Door Phone

VL-SA611SX

Hybrid Video Intercom Kit with Mobile App Access

See who's at the door, speak to them hands-free, and unlock remotely — from your indoor monitor or your phone, wherever you are.

✓ 7″ Touch Screen 2MP HD Camera

IP65 / IK08 Colour Night Vision Panasonic SmartWiFi

A video door phone does one thing that a regular doorbell never can — it shows you exactly who is outside before you decide whether to answer. The Panasonic VL-SA611SX takes that a step further. Its 7-inch full-colour touchscreen gives you a crisp, wide-angle view of your entrance at any hour, thanks to built-in white LED night vision that works down to 1 lux. The 2MP HD camera captures enough detail to see faces and clothing clearly, and the joystick-controlled adjustable angle means you're not stuck with a fixed view. When you're not home, the Panasonic SmartWiFi app puts the same live view and remote unlock on your iOS or Android phone — so the courier, the housekeeper, or a family member can be let in without anyone needing to be physically present. It supports up to four outdoor door stations and up to three indoor monitors across the system, making it a serious choice for larger homes, apartments, and small commercial premises that need more than a single-door solution.

7″

Touch Screen

2MP

HD Camera

100

Image Storage

256GB

SD Card Support

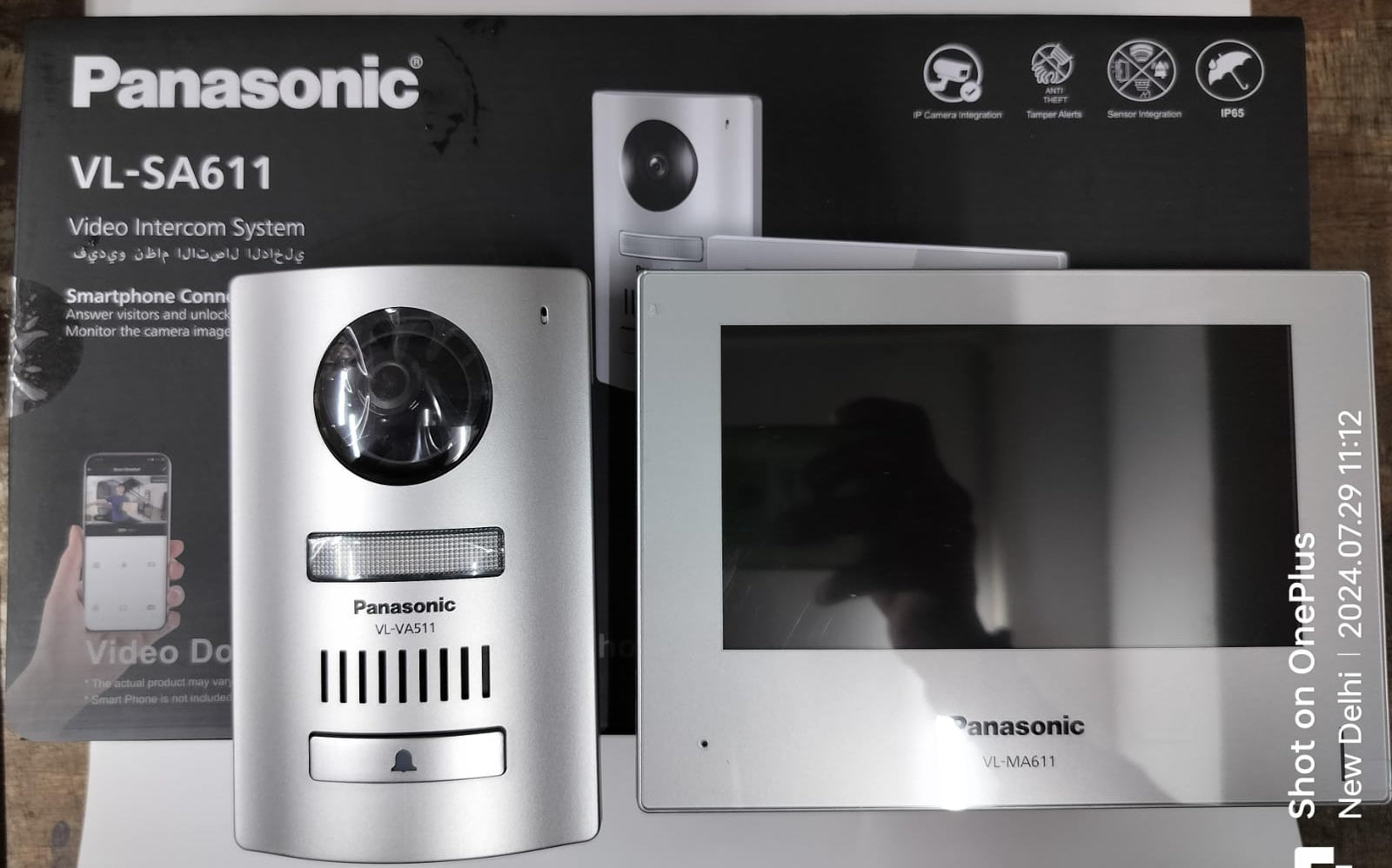

What's in the Kit

VL-SA611SX

Main Monitor Station

1 Unit (Main)

The central hub — 7-inch touchscreen, Wi-Fi, SD card slot, lock relay, and the Panasonic SmartWiFi app connection. Everything is managed from here.

VL-MA611

Extension Monitor

Optional — Up to 2

Additional indoor screens for other rooms — bedroom, kitchen, office. Each receives calls from the door station and can unlock the door independently.

VL-VA511

Door Station (Camera Unit)

Optional — Up to 4 Total

The outdoor camera and call button. IP65-rated for weather and IK08-rated for impact. Supports colour night vision and motion/tamper detection.

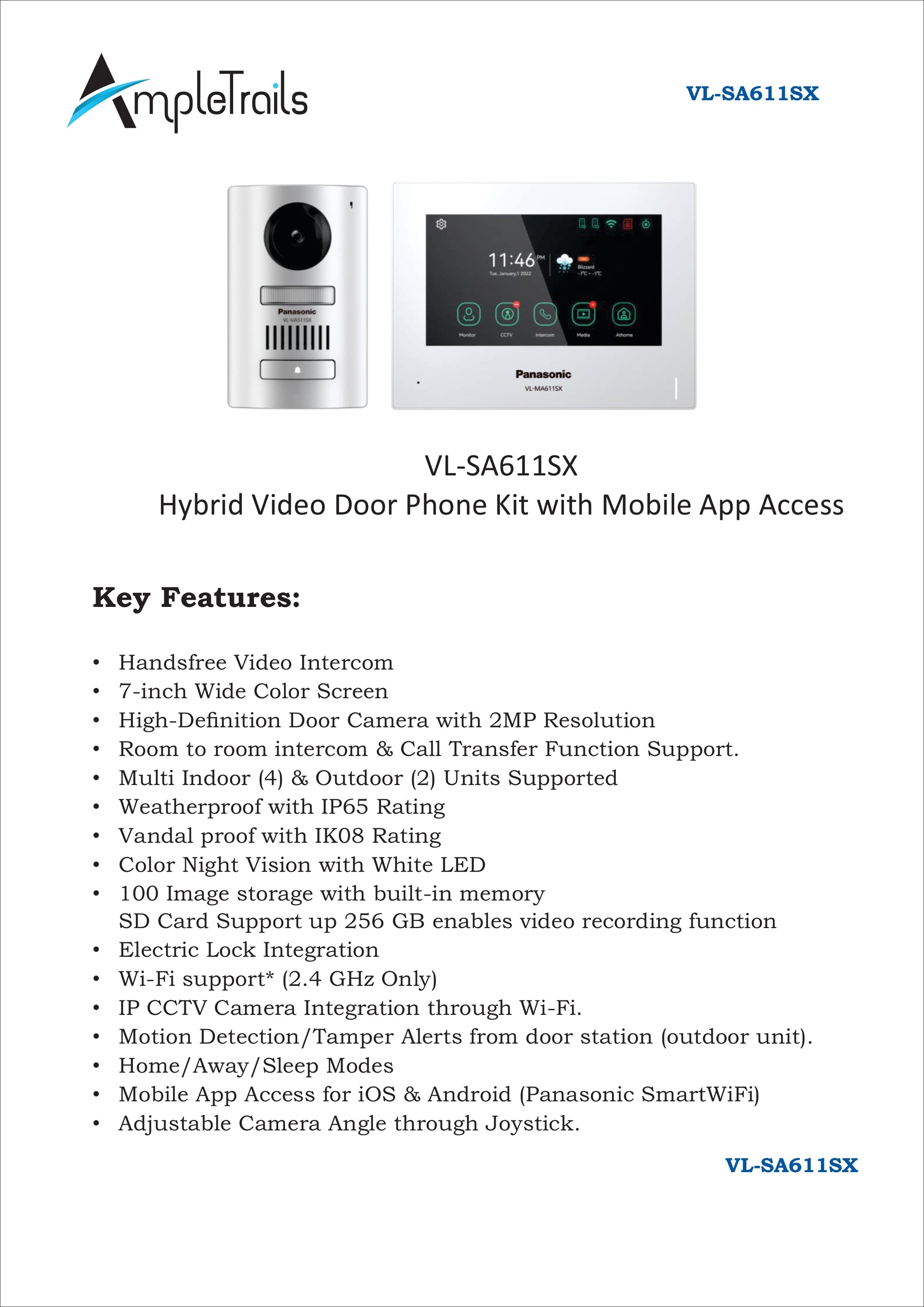

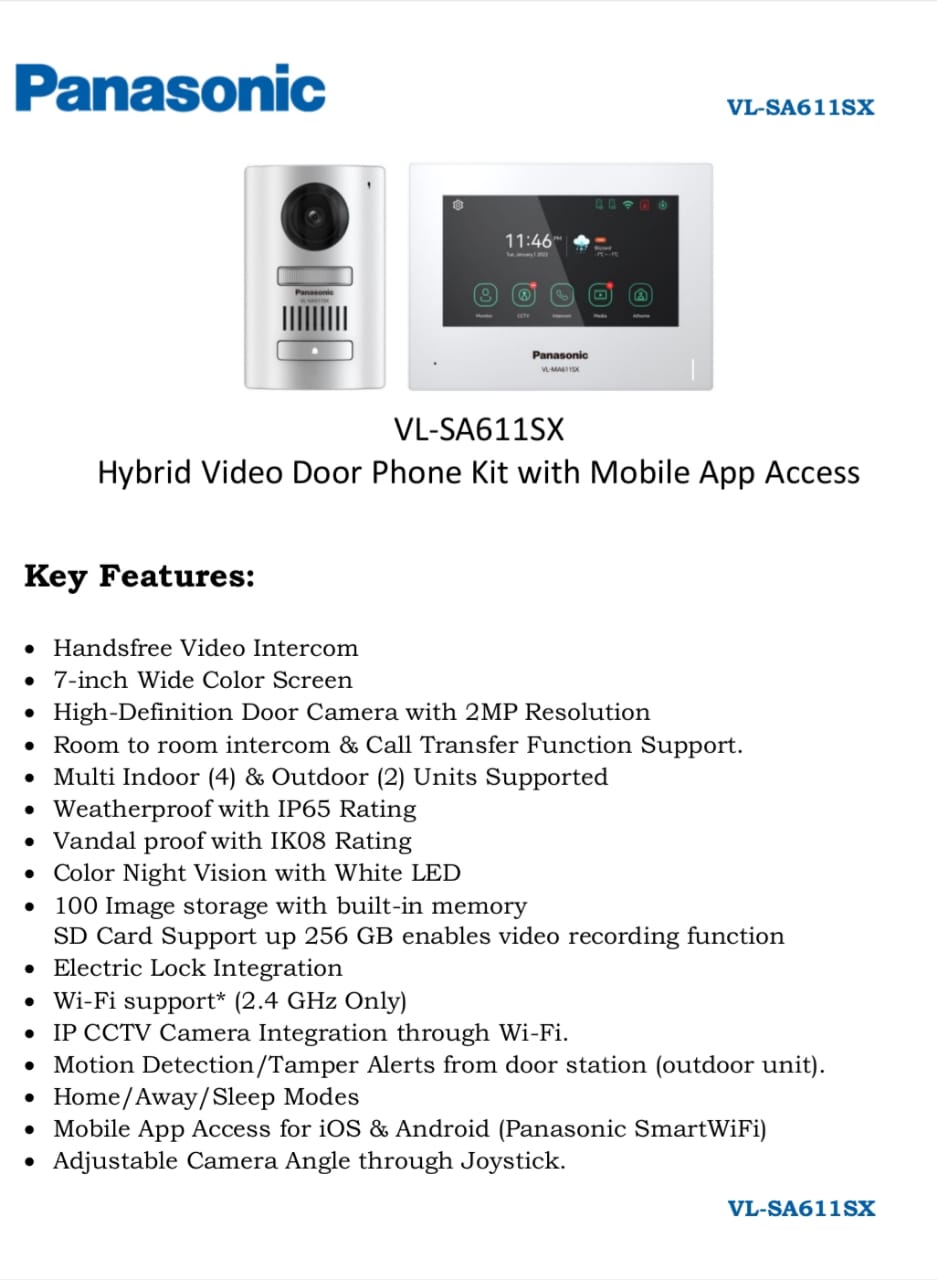

Key Features

7-Inch Colour Touchscreen

A large, clear capacitive display at 1024 x 600 resolution makes it easy to identify visitors at a glance — even from across the room on the wall mount.

2MP HD Door Camera

The VL-VA511 door station captures at 1/2.9″ CMOS with a 2MP lens — enough resolution to see faces and read details clearly, streamed at 1280 x 720 to your monitor.

Hands-Free Video Intercom

Full two-way audio without lifting a handset. Speak naturally while seeing the visitor on screen — the same experience works through the SmartWiFi app on your phone too.

Panasonic SmartWiFi App

Receive live video calls on your iOS or Android phone when someone rings the doorbell. View, speak, and unlock remotely — even when you're away from home entirely.

Colour Night Vision

Built-in white LED illumination on the door station gives full-colour video down to 1 lux — so you see a clear colour image at night, not just a grainy greyscale shot.

Electric Lock Integration

The main monitor and each door station have a relay output (NO/COM/NC) for direct electric lock or magnetic lock control — no separate controller needed for a single-door setup.

IP65 + IK08 Rated

The outdoor door station is both weatherproof (IP65 — dust-tight and water-jet resistant) and vandal-resistant (IK08 — withstands a significant impact). Built for real-world entrances.

Motion & Tamper Detection

The door station alerts you when it detects movement in front of the camera or if someone attempts to tamper with or remove the unit — even when nobody has rung the bell.

100 Images + 256GB SD Card

Stores the last 100 visitor snapshots internally with no SD card required. Insert a Class 10 SD card (up to 256GB) to enable full video recording of every door event.

IP CCTV Camera Integration

View compatible IP CCTV cameras directly on the monitor screen over Wi-Fi — turning the indoor unit into a simple security viewer for the rest of your property.

Home / Away / Sleep Modes

Switch between modes to control how the system behaves — Away mode pushes all calls to your phone, Sleep mode silences the indoor monitor overnight while the app stays active.

Room-to-Room Intercom

The main monitor and extension monitors can call each other for internal communication — useful in larger homes or small offices where staff need to communicate between rooms.

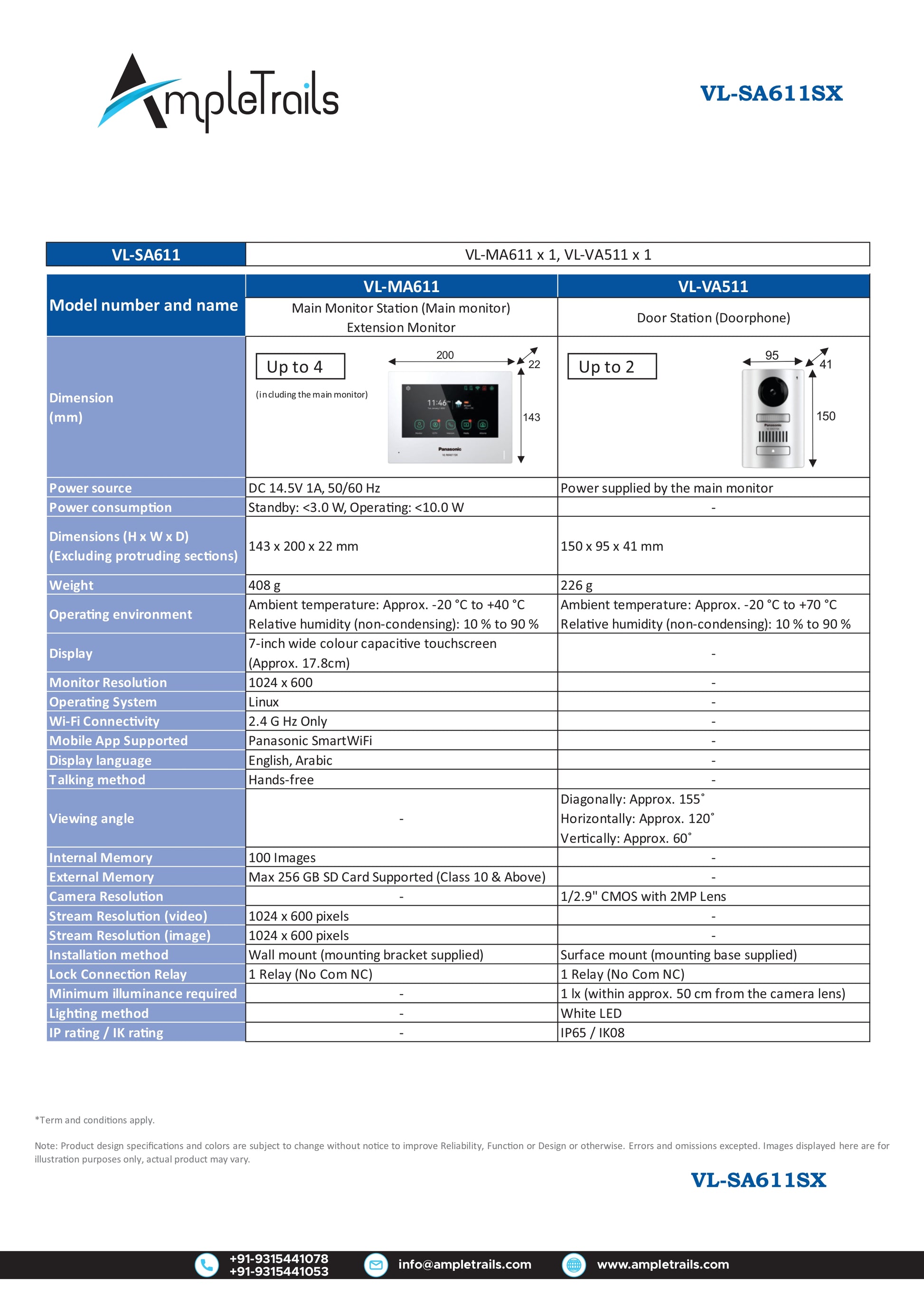

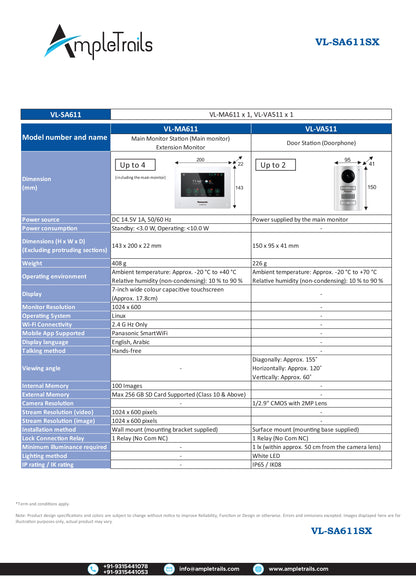

Technical Specifications

Main Monitor — VL-SA611SX▾

Display

7-inch wide colour capacitive touchscreen (approx. 17.8 cm)

Monitor Resolution

1024 × 600

Video Stream Resolution

1280 × 720 pixels

Image Stream Resolution

1024 × 600 pixels

Operating System

Linux

Wi-Fi Connectivity

2.4 GHz only

Mobile App

Panasonic SmartWiFi (iOS & Android)

Internal Memory

100 images

External Memory

SD Card — max 256 GB (Class 10 and above)

Lock Relay

1 Relay (NO / COM / NC)

Talking Method

Hands-free

Display Language

English, Arabic

Power Source

DC 14.5V 1A, 50/60 Hz

Power Consumption

Standby: <3.0 W | Operating: <10.0 W

Dimensions (H × W × D)

143 × 200 × 22 mm

Weight

408 g

Installation

Wall mount (mounting bracket supplied)

Operating Temperature

−20°C to +70°C

Humidity

10 % – 90 % RH (non-condensing)

Extension Monitor — VL-MA611▾

Power Source

Power supplied by the main monitor

Dimensions (H × W × D)

150 × 95 × 41 mm

Weight

226 g

Installation

Surface mount (mounting base supplied)

Operating Temperature

−20°C to +70°C

Humidity

10 % – 90 % RH (non-condensing)

Door Station (Camera Unit) — VL-VA511▾

Camera Sensor

1/2.9″ CMOS, 2MP lens

Viewing Angle

Diagonal: approx. 155° | Horizontal: approx. 120° | Vertical: approx. 60°

Night Vision

Colour — White LED

Min. Illuminance

1 lx (within approx. 50 cm from lens)

IP / IK Rating

IP65 / IK08

Lock Relay

1 Relay (NO / COM / NC)

Camera Angle Adjustment

Joystick-controlled from indoor monitor

System Capacity▾

Max Indoor Monitors

3 (1 main + 2 extension)

Max Door Stations

4 (including the main monitor connection)

Call Transfer

Yes — between indoor monitors

Room-to-Room Intercom

Yes — between indoor units

CCTV Integration

Compatible IP CCTV cameras via Wi-Fi

Who It's For

Homes & Villas

The most common fit — see visitors from the living room, let in family members remotely, and record every door event to SD card without needing a separate DVR.

Apartments & Flats

Wall-mounted monitor at the entrance, SmartWiFi app on your phone. When someone buzzes, you see them and respond from wherever you are in the flat — or from work.

Small Offices & Clinics

The room-to-room intercom and call transfer features suit small teams. Reception can screen visitors and transfer the call to the relevant person before buzzing them in.

Multi-Door Properties

Up to four door stations means you can cover the main entrance, rear gate, garage, and a side door — all visible and controllable from one indoor monitor setup.

Frequent Travellers

The Away mode and SmartWiFi app combination means your home entrance is never unmonitored. Accept deliveries, let in cleaners, or check who's at the door from anywhere in the world.

Upgrading Old Intercom Systems

Replacing a decade-old audio-only intercom with the VL-SA611SX brings HD video, night vision, app access, and electric lock control — a complete upgrade without major wiring work.
