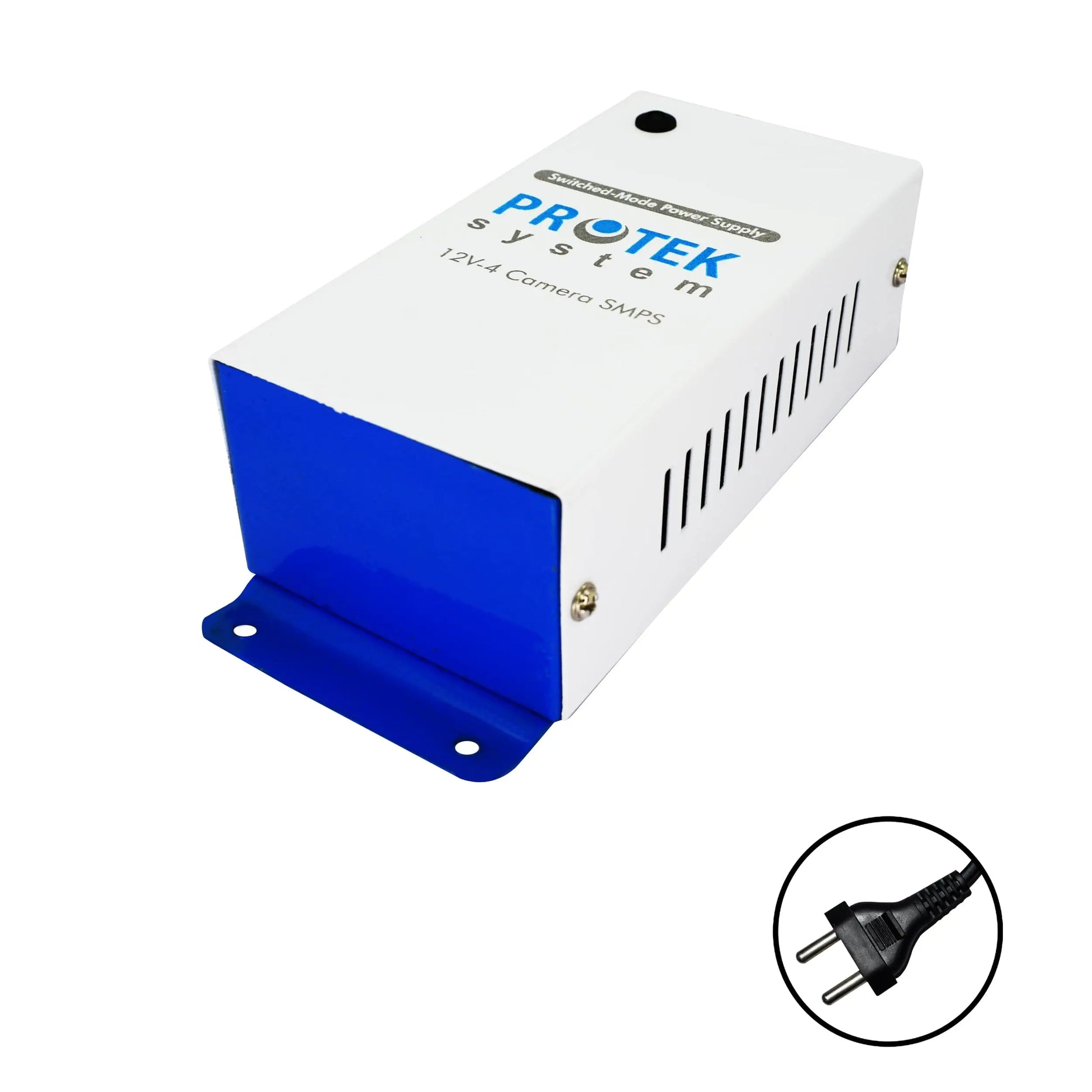

• 12V 4 Channel CCTV Camera Power Supply Box with Metal Enclosure for Security Cameras, Surveillance Systems, Homes, Offices, Shops and Commercial Installations
1 1

Protek System

Protek 12V, 16 Camera Supply

Protek 12V, 16 Camera Supply

Rs. 1,104.00
Rs. 13,256.00 Rs. 1,104.00
Sale Sold out
Product Details

12V, 16 Camera Supply (PS16CPS)

The PS16CPS 12V, 16 Camera Supply is a fully regulated switch mode power supply designed specifically for CCTV surveillance systems. It provides a stable 12V DC output at 8A and is suitable for powering up to 16 IR cameras with up to 24 LEDs each. The high-frequency switching design ensures high efficiency, low power loss, compact size, and reliable performance.

The power supply operates over a wide input voltage range of 120V to 280V AC and incorporates multiple protection features including overload, short-circuit, over-voltage, under-voltage, and thermal protection, ensuring safe and dependable operation.

Key Features

  • Fully regulated switch mode power supply.
  • 12V DC output with 8A maximum current.
  • Wide input voltage range of 120V to 280V AC.
  • Suitable for powering up to 16 IR CCTV cameras.
  • Overload cut-off and automatic recovery.
  • Short-circuit and over-voltage protection.
  • Input over-voltage and under-voltage protection.
  • Thermal shutdown protection with recovery.
  • Compact, lightweight, and high-efficiency design.

Product Advantages

  • Reliable and stable power output.
  • High efficiency with low power loss.
  • Multiple safety protection mechanisms.
  • Compact and durable design.
  • Ideal for medium and large CCTV installations.
  • Long operational life and dependable performance.

Technical Specifications

Specification Details
Product Name 12V, 16 Camera Supply
Model No. PS16CPS
Category 12V SMPS / CCTV SMPS Single Output
Input Voltage 120V – 280V AC
Input Frequency 45 – 55Hz
Output Voltage 12V DC
Output Current 8 Amps (Max)
Efficiency >85% @ Full Load and 230V AC
Line Regulation <1%
Load Regulation <1%
Ripple <50mV p-p
Isolation Between Input & Output 3000V AC
Isolation Between Input & Earth 1500V AC
Isolation Between Output & Earth 1500V AC
Operating Temperature 0°C to 55°C
Dimensions 210 × 105 × 52 mm
Weight 710 g
Application For 16 IR Cameras up to 24 LEDs

Main Features

  • 12V DC Regulated Output.
  • 8A Maximum Output Current.
  • Wide AC Input Range.
  • Overload Protection.
  • Short-Circuit Protection.
  • Over-Voltage and Under-Voltage Protection.
  • Thermal Shutdown Protection.
  • High Efficiency Design.

Applications

  • CCTV Camera Power Supply Systems
  • 16-Channel Surveillance Installations
  • IR CCTV Cameras
  • Commercial Security Systems
  • Office and Industrial Surveillance Networks
  • Large Security Monitoring Installations

Why Choose PS16CPS?

  • Designed specifically for CCTV applications.
  • Stable and regulated 12V output.
  • Multiple protection mechanisms for enhanced safety.
  • Wide input voltage compatibility.
  • Compact and durable construction.
  • Reliable performance for continuous operation.

Package Includes

  • 1 × PS16CPS 12V, 16 Camera Supply
Technical Specifications
View full details
