Realtime

Realtime K7

Realtime K7

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Quantity

Overview

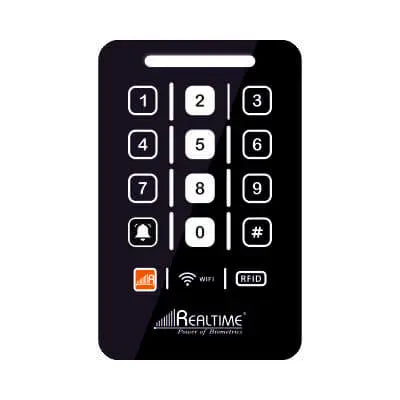

The Realtime K7 is a compact standalone RFID access control system designed for secure and convenient door access in offices, homes, retail stores, warehouses, and commercial facilities. Equipped with a built-in EM proximity card reader and touch keypad, the device enables users to unlock doors using RFID cards or PIN passwords without requiring an external controller or computer.

Featuring a sleek and modern design, low power consumption, and relay-based lock control, the K7 offers an economical and reliable solution for single-door access control applications. Its simple installation and user-friendly operation make it suitable for a variety of indoor security requirements.

Key Features

✔ Standalone single-door access control system
✔ Built-in EM proximity card reader
✔ Touch keypad with PIN support
✔ Supports up to 2,000 users
✔ Card reading distance greater than 5 cm
✔ Built-in bell sound
✔ Relay output lock control
✔ Low power consumption
✔ Compact and elegant design
✔ Wall-mounted installation
✔ Easy programming and operation
✔ Ideal for indoor access control applications

Why Choose Realtime K7?

Simple and Reliable Security

Provides secure access using RFID cards and PIN passwords without requiring complicated software or external controllers.

Standalone Operation

Operates independently, reducing installation costs and making day-to-day management easy.

Flexible Authentication

Supports both EM cards and PIN codes for convenient and secure user access.

Energy Efficient Performance

Low static and operating current ensure reliable performance with minimal power consumption.

Compact Design

Its modern appearance and small footprint make it ideal for offices, apartments, shops, and commercial buildings.

Technical Specifications

Feature Specification
Model Realtime K7
Product Type Standalone RFID Access Control System
Authentication Modes EM Card, Password (PIN)
Card Reader Built-in EM Proximity Card Reader
Card Type EM Cards
Card Reading Distance > 5 cm
User Capacity 2,000 Card or Password Users
Keypad Type Touch Keypad
Sound Indicator Built-in Bell Sound
Lock Output Relay Output
Power Supply 12V DC, 2A
Static Current 65 mA – 70 mA
Unlock Current 80 mA – 90 mA
Operating Temperature 0°C to 60°C
Installation Type Wall Mounted
Application Single-Door Access Control

Applications

🏢 Offices and Commercial Buildings
🏠 Residential Apartments and Homes
🏬 Retail Stores and Showrooms
🏭 Warehouses and Industrial Units
🏫 Schools and Educational Institutions
🔐 Single-Door Access Control Systems
