Overview

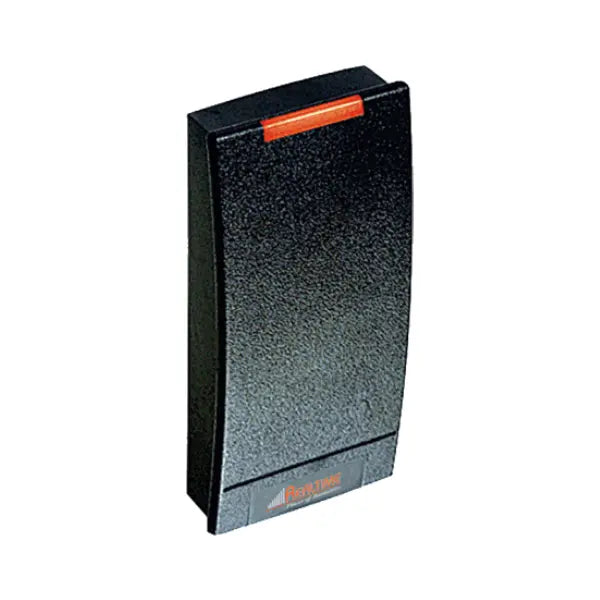

The Realtime RF-10M is a high-performance MiFare card reader designed to provide secure and reliable card-based authentication for access control and attendance systems. Operating at 13.56 MHz, the reader delivers fast response times and stable communication, making it suitable for offices, factories, educational institutions, and commercial establishments.

Designed to work with compatible access control panels and biometric devices, the RF-10M supports Wiegand communication and offers long-distance data transmission. Its compact design, built-in antenna, dual-color LED indicators, and buzzer provide efficient and user-friendly operation for modern access control environments.

Key Features

✔ Supports 13.56 MHz MiFare cards

✔ Wiegand 26-bit and 34-bit output

✔ ABA standard format data output

✔ Fast response speed below 0.2 seconds

✔ Proximity reading range up to 15 cm

✔ Built-in antenna design

✔ Dual-color LED status indication

✔ Integrated buzzer sound indication

✔ Real-time data transfer support

✔ Communication distance up to 100 meters

✔ Low power consumption operation

✔ Compact wall-mount design

Why Choose Realtime RF-10M?

MiFare Card Compatibility

Supports 13.56 MHz MiFare cards, providing enhanced security and reliable card-based authentication.

Fast Recognition Speed

Response times of less than 0.2 seconds ensure smooth and efficient user access.

Easy Integration

Wiegand 26/34-bit and ABA standard output formats allow seamless integration with access control systems and biometric devices.

Visual and Audible Feedback

Dual-color LEDs and a built-in buzzer provide clear indication of card reading status.

Reliable Performance

Built for continuous operation with low power consumption and stable communication over long distances.

Technical Specifications

Feature	Specification
Model	RF-10M
Product Type	MiFare Card Reader
Card Technology	13.56 MHz MiFare Card
Communication Output	Wiegand 26-bit / Wiegand 34-bit / ABA Standard Format
Response Speed	< 0.2 Seconds
Card Reading Time	< 0.5 Seconds
Reading Distance	2 – 15 cm
Communication Distance	Up to 100 m
Antenna	Built-in
LED Indicator	Dual Color LED
Sound Indicator	Built-in Buzzer
Power Supply	DC 12V
Working Current	70 mA
Operating Temperature	-25°C to +75°C
Working Humidity	10% – 90% RH
Data Transfer	Real-Time Data Transfer
Installation Type	Wall Mounted
