Realtime RSMD18 (18 Zone)

Rs. 0.00

Sale Sold out

Overview

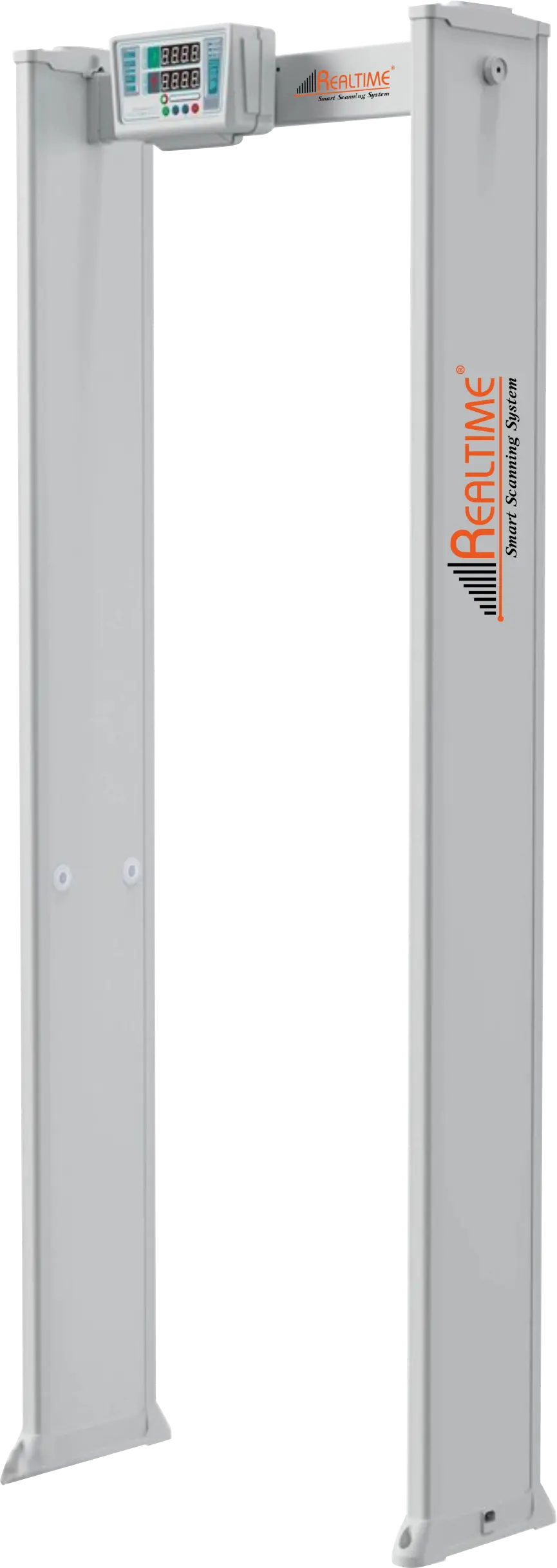

The Realtime RSMD18 Eighteen Zone Door Frame Metal Detector is a high-security walk-through metal detector designed for accurate detection and localization of concealed metallic objects. Featuring 18 independent detection zones, the system provides precise head-to-toe identification, making it ideal for high-security environments where fast and reliable screening is essential.

Designed for airports, metro stations, government buildings, banks, schools, factories, shopping malls, hotels, and event venues, the RSMD18 combines advanced microcontroller technology with adjustable sensitivity, audio and visual alarms, and intelligent frequency settings to deliver dependable security performance.

Key Features

✔ 18 independent detection zones

✔ Precise head-to-toe metal localization

✔ 190 LED indicators on both panels

✔ Simultaneous sound and light alarms

✔ Adjustable sensitivity for each zone

✔ Dynamic operational frequency

✔ Up to 50 selectable frequency levels

✔ Up to 200 security levels

✔ WALK and STOP traffic indicators

✔ Microcontroller-based intelligent settings

✔ Stainless steel body construction

✔ IP54 protection rating

Why Choose Realtime RSMD18?

High Precision Detection

Eighteen independent zones allow security personnel to quickly identify the exact location of concealed metallic objects, reducing inspection time and improving throughput.

Advanced Visual Guidance

Bright LED indicators and WALK/STOP signals simplify operation and enhance passenger flow in busy security checkpoints.

Flexible Sensitivity Settings

Each zone can be adjusted independently, enabling customization according to specific security requirements.

Reliable Performance

Dynamic frequency selection and intelligent microcontroller-based control provide stable operation with reduced interference.

Built for High-Security Environments

Its rugged stainless steel construction and IP54 protection rating make the RSMD18 suitable for continuous operation in demanding locations.

Technical Specifications

Feature	Specification
Model	RSMD18
Product Type	Walk-Through Door Frame Metal Detector
Detection Zones	18 Zones
Detection Technology	High-Performance Electromagnetic Detection
LED Indicators	190 LEDs on Both Door Panels
Zone Identification	Precise Head-to-Toe Detection
Sensitivity Levels	0–400 (Individual Zone Adjustment)
Security Levels	Up to 200
Frequency Levels	Up to 50
Alarm Type	Audio and Visual Alarm
Traffic Indicators	WALK and STOP
Body Material	Stainless Steel
Protection Rating	IP54
Passage Width	700–800 mm
Power Supply	230V AC
Installation	Easy Mounting and Assembly
Application	Indoor Security Screening
